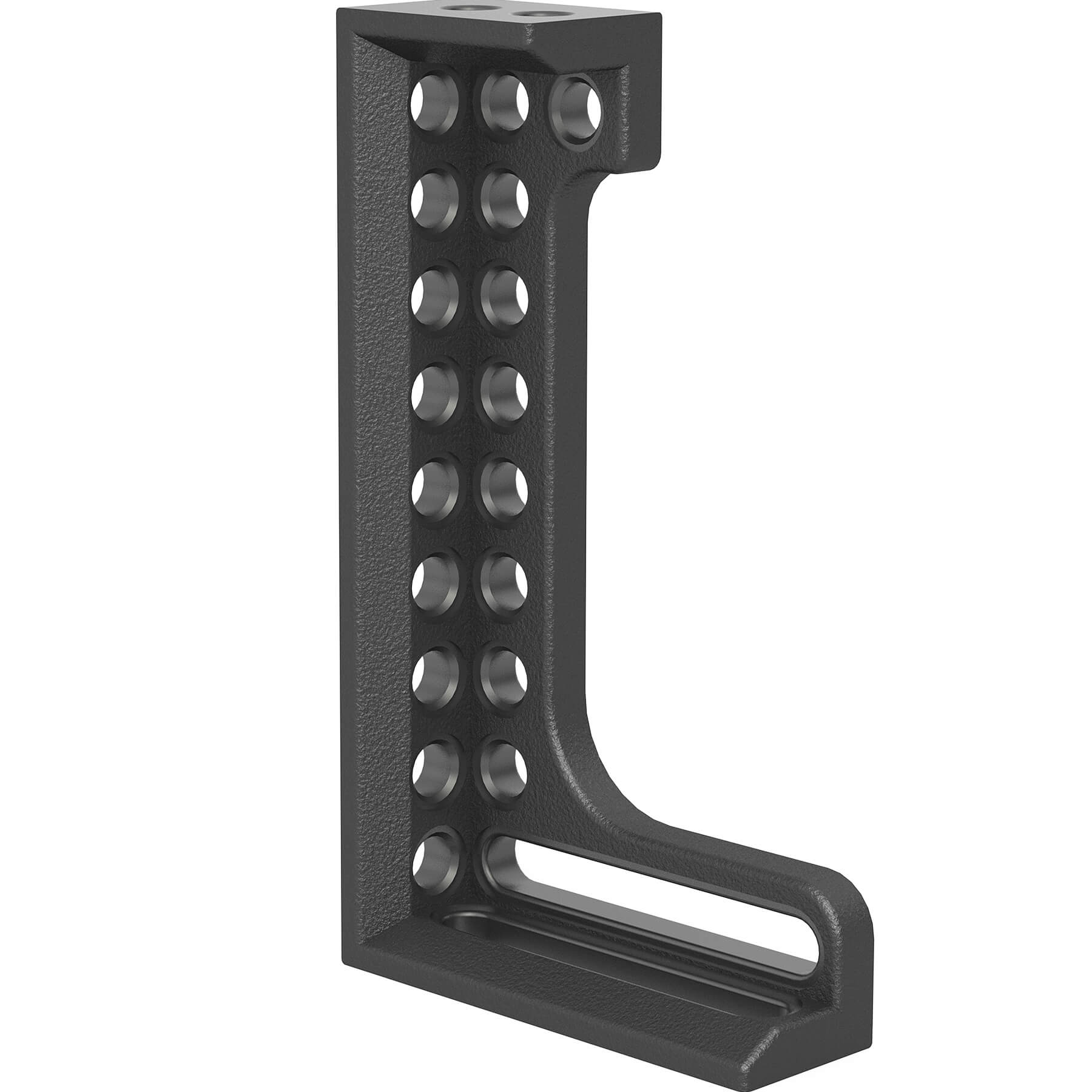

The Stop and Clamping Square 500 GK Right Nitrided ensures precise, stable positioning for heavy-duty welding and fixturing operations. Its robust three-dimensional design makes it equally effective as a stop or as a table extension, giving shops greater flexibility in handling large and heavy components. Built from GGG40 ductile cast iron, it withstands demanding shop environments while delivering repeatable accuracy.
- Functions as both a stop and a table extension.
- Provides three-dimensional clamping flexibility.
- Manufactured from GGG40 ductile cast iron for long-lasting stability.
- Nitrided finish extends wear resistance and service life.
- Right-side orientation with integrated fine scale.
- Best performance achieved when ordered in pairs.
Key Features:
- Delivers stable positioning for heavy workpieces.
- Durable nitrided finish protects against wear and corrosion.
- Supports stop and extension applications in one tool.
- Right-oriented design ensures precise setups.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 280mm (11.02" Inches)
- Width: 95mm (3.74" Inches)
- Height: 500mm (19.69" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 38.58 lbs. (17.5 kg.)
- Material: GGG40 ductile cast iron, nitrided
Common Uses:

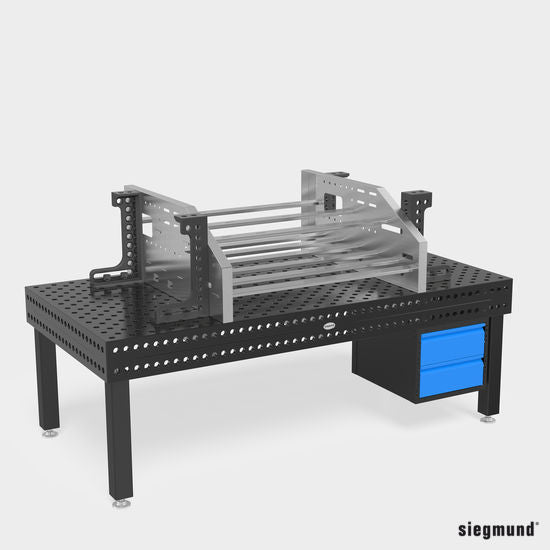

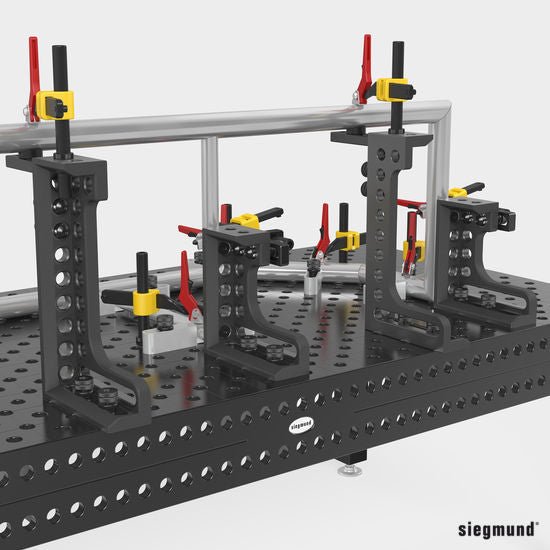

This Stop and Clamping Square is relied on for positioning and securing large, heavy components during welding and assembly on Siegmund System 28 Metric Series tables. It delivers consistent precision while doubling as a table extension, making it a versatile option for complex fixturing setups. Shops depend on its strength and stability for long-term accuracy under heavy workloads.
