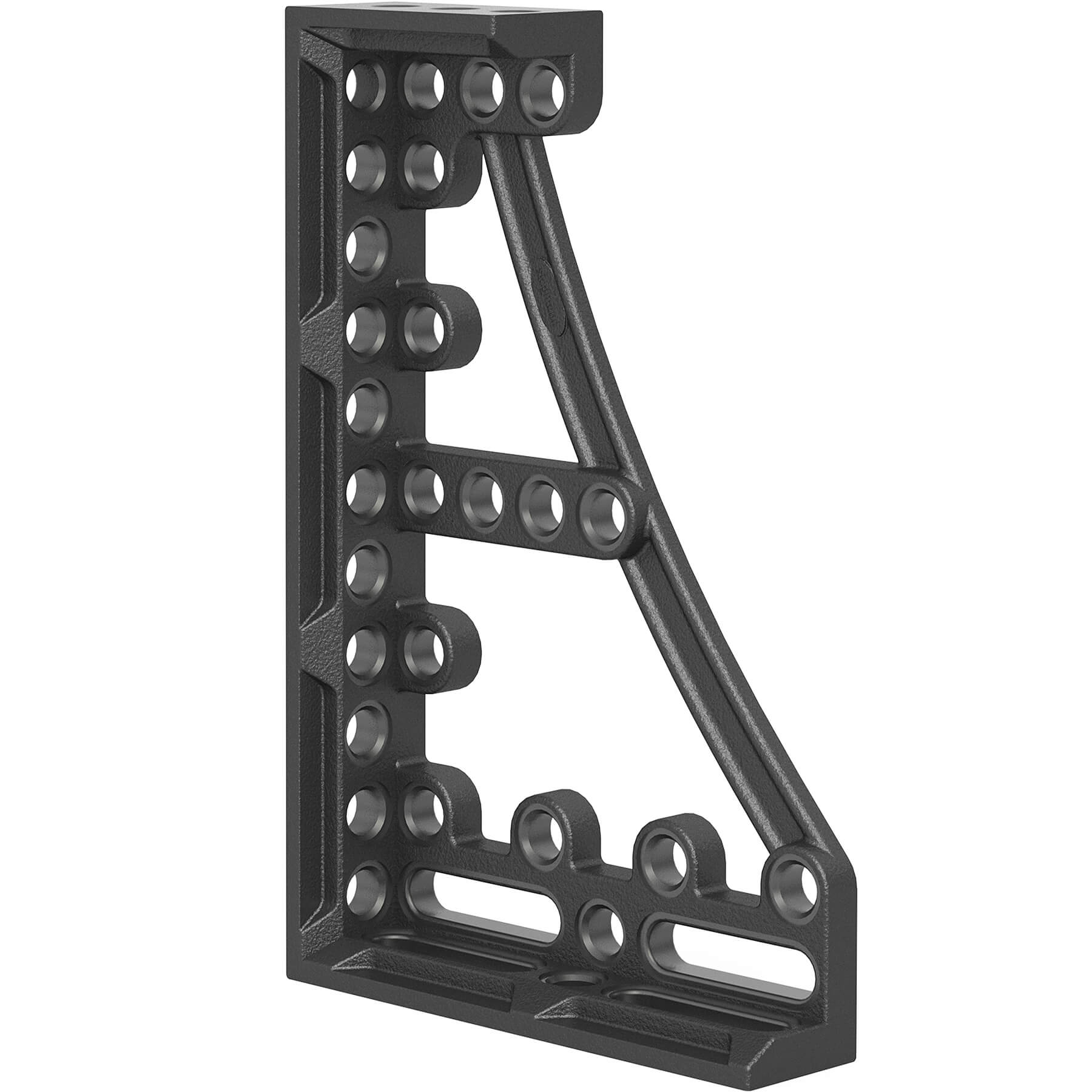

The Siegmund Stop and Clamping Square 600 GK Right Nitrided ensures precision and stability for heavy-duty welding and fixturing. Its three-dimensional structure provides a wide range of clamping options, making it effective as both a stop and a table extension. Constructed from GGG40 ductile cast iron and nitrided for enhanced durability, it supports large workpieces with long-lasting reliability.
- Provides three-dimensional clamping flexibility.
- Functions as a stop and as a table extension.
- Built from GGG40 ductile cast iron for maximum stability.
- Nitrided finish improves wear and corrosion resistance.
- Right-side orientation with fine scale for accuracy.
- Recommended for use in pairs for balanced setups.
Key Features:
- Supports heavy, oversized parts with stability.
- Durable nitrided surface extends service life.
- Multi-use design works as both stop and extension.
- Right-oriented stop ensures precise alignment.
- Engineered for Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 600mm (23.62" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 49.60 lbs. (22.5 kg.)
- Material: GGG40 ductile cast iron, nitrided
Common Uses:

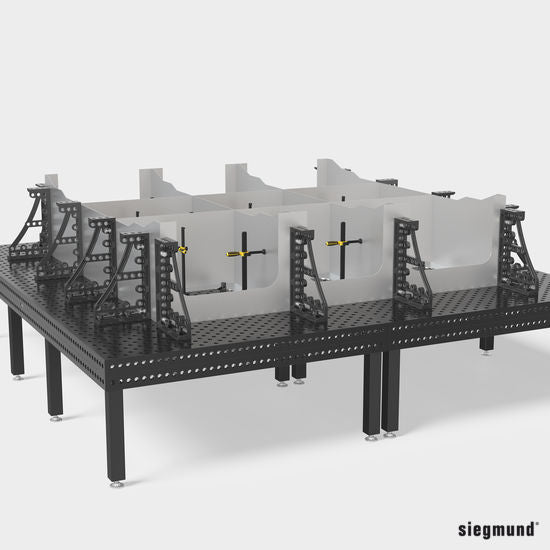

This Stop and Clamping Square is widely used to position and secure large, heavy workpieces on Siegmund System 28 Metric Series tables. Its design delivers precise alignment while doubling as a table extension for added versatility. Fabricators rely on its robust cast iron body and nitrided finish to handle high-load welding and assembly tasks with long-term consistency.
