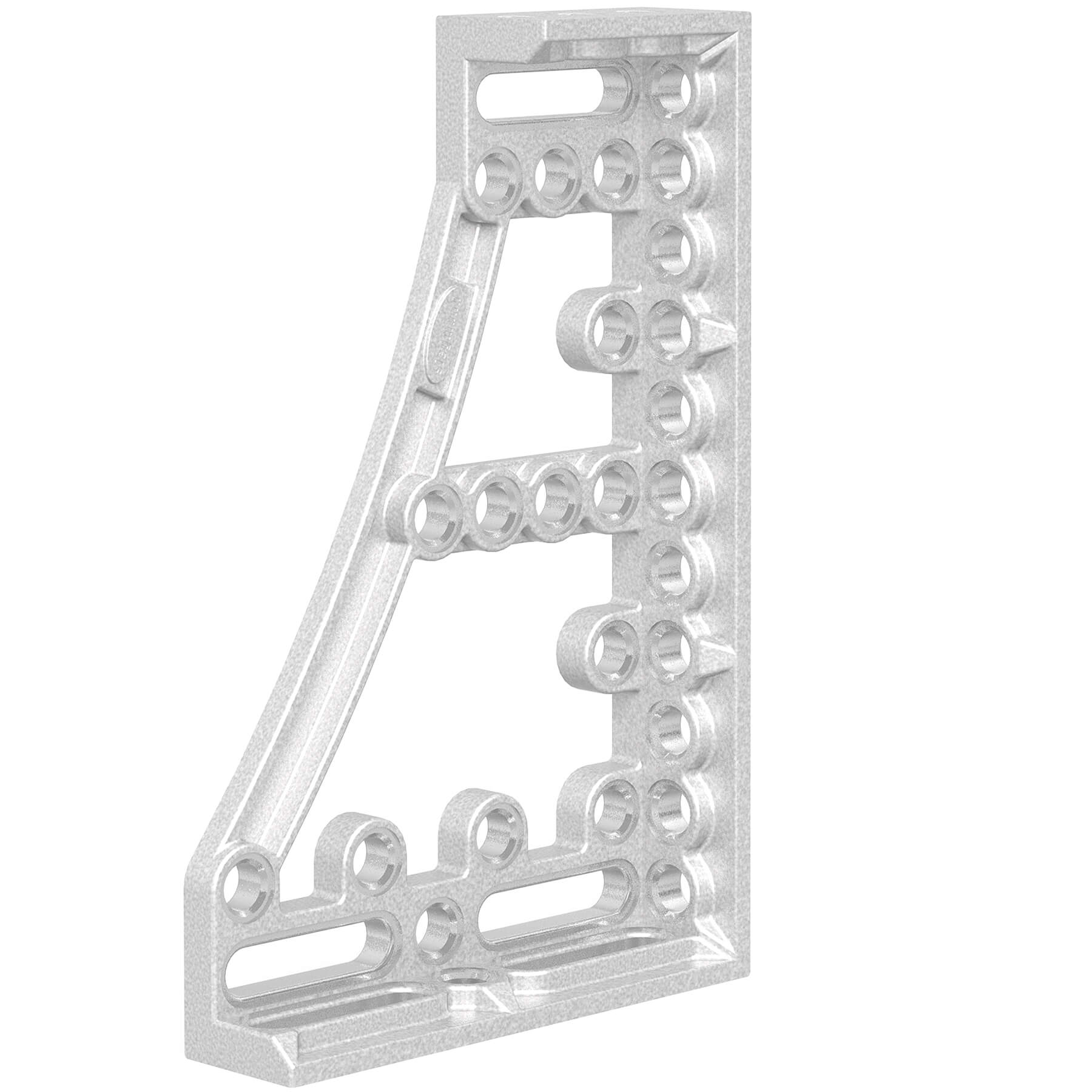

The Siegmund Stop and Clamping Square is engineered for stability and versatility in heavy-duty fixturing applications. Made from aluminum-titanium alloy, it reduces handling weight while maintaining the strength needed for large workpieces. Its three-dimensional design provides multiple clamping and stop possibilities, making it a valuable fixture element in advanced welding setups.
- Three-dimensional design offers flexible clamping configurations.
- Serves as both a stop and an extension of the welding table.
- Aluminum-titanium alloy construction reduces handling effort.
- High stability ensures precision with heavy workpieces.
- Fine scale provides accuracy in alignment and repeatability.
- Recommended for paired use to achieve balanced setups.
Key Features:
- Lightweight aluminum-titanium alloy construction with high strength.
- Large format square supports heavy parts with stability.
- Fine scale for precise positioning and repeatable accuracy.
- Fully compatible with Siegmund System 28 Metric Series.
- Reduced weight improves handling and shop efficiency.
Specifications:
- Item No.: 2-280138
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 600mm (23.62" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 19.18 lbs. (8.7 kg.)
- Material: Aluminum-Titanium Alloy
Common Uses:

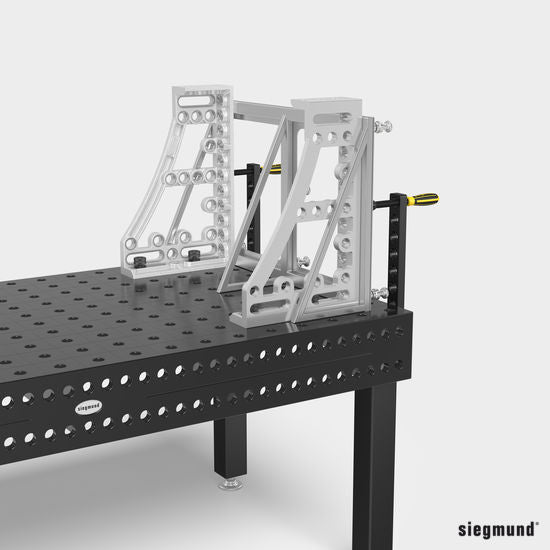

This Stop and Clamping Square secures and positions large or tall workpieces while keeping handling manageable. Its aluminum-titanium construction reduces fatigue during frequent repositioning, while the three-dimensional design delivers precise stop and clamping options. Ideal for setups requiring both strength and flexibility in welding and assembly operations.
