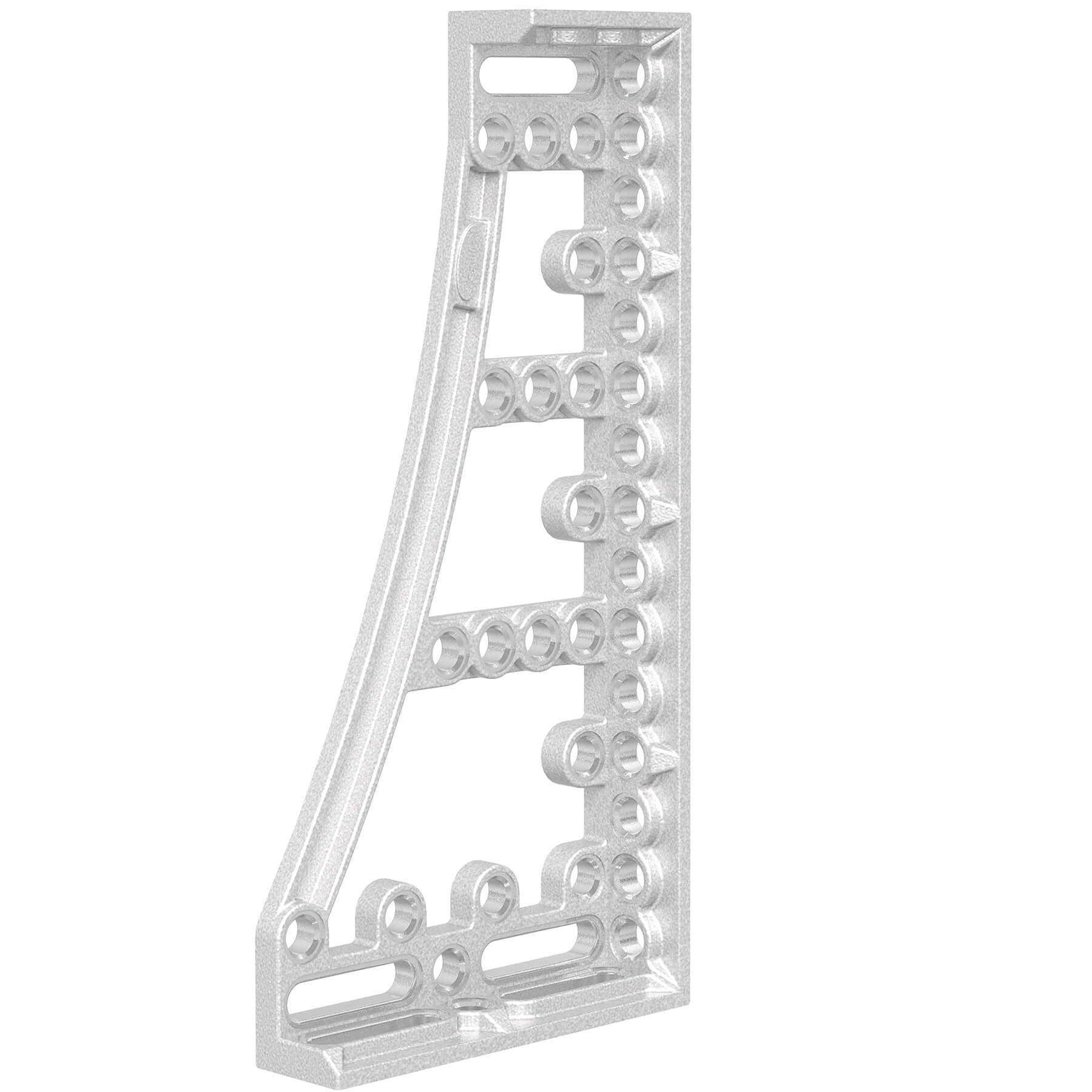

The Siegmund Stop and Clamping Square is built for handling large-scale fixturing applications where strength and reduced handling weight are equally important. Manufactured from aluminum-titanium alloy, it provides stability and precision while minimizing operator fatigue. Its three-dimensional body allows for versatile clamping and stop setups, making it a key fixture element for heavy-duty welding operations.
- Large 800mm height stabilizes oversized or tall components.
- Three-dimensional construction expands clamping flexibility.
- Functions as both a stop and a table extension.
- Aluminum-titanium alloy reduces handling weight without sacrificing strength.
- Fine scale ensures precise and repeatable adjustments.
- Best used in pairs for balanced and stable fixturing.
Key Features:
- Lightweight but durable aluminum-titanium alloy structure.
- Large format design accommodates heavy and tall parts.
- Fine scale provides consistent accuracy and positioning.
- Three-dimensional body maximizes fixturing flexibility.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280140
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 800mm (31.50" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 22.93 lbs. (10.4 kg.)
- Material: Aluminum-Titanium Alloy
Common Uses:
This Stop and Clamping Square secures large or tall workpieces with precision while reducing strain during handling. Its aluminum-titanium build keeps weight manageable while maintaining rigidity, and its three-dimensional design ensures versatile clamping options. It excels in welding and assembly setups requiring both strength and flexibility.
