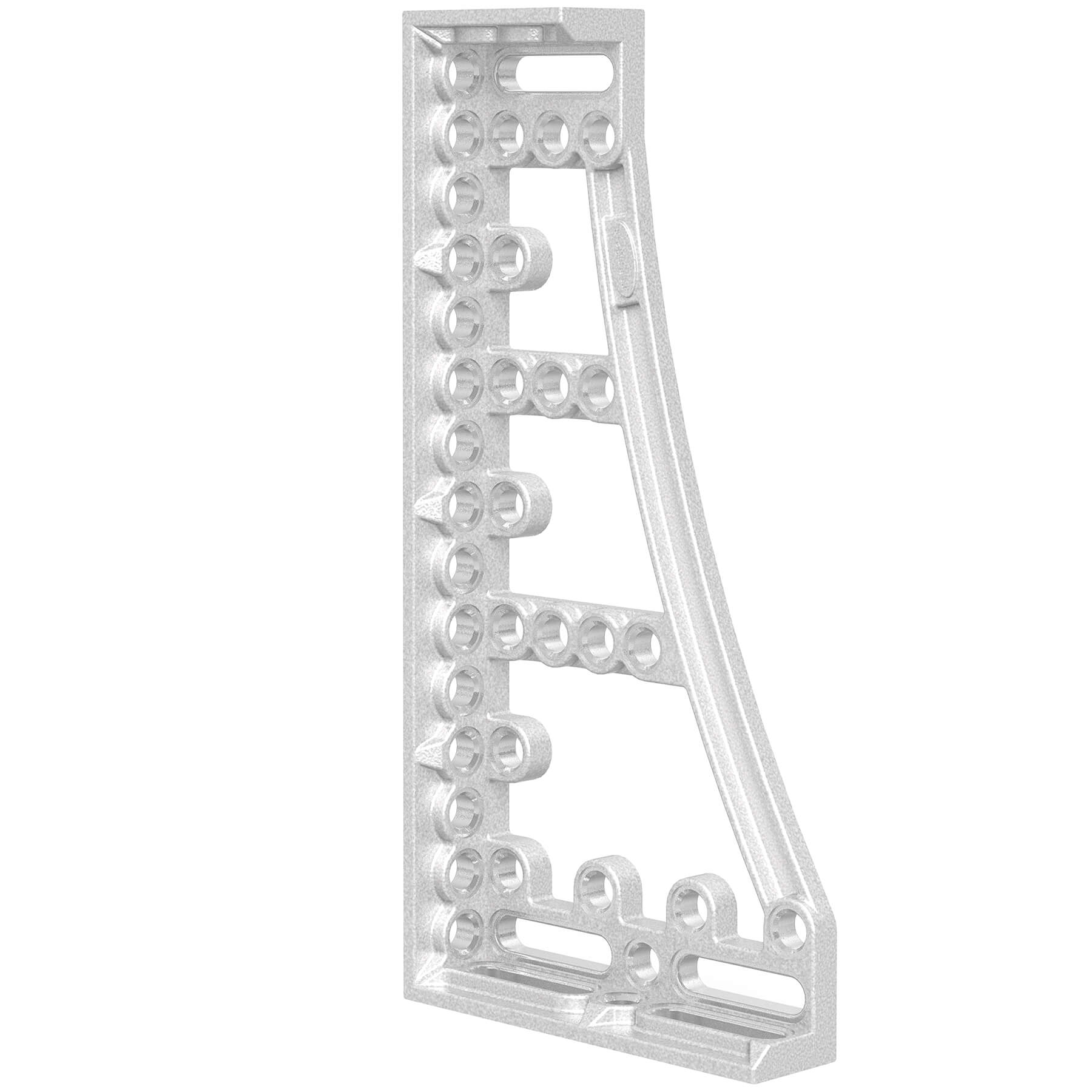

The Siegmund Stop and Clamping Square provides strength and reduced weight for large-scale fixturing applications. Built from aluminum-titanium alloy, it ensures stability while making handling and repositioning easier for operators. With its tall 800mm height and three-dimensional structure, it supports heavy workpieces and offers versatile clamping and stop configurations for precision welding tasks.
- 800mm height supports oversized and tall workpieces securely.
- Three-dimensional body expands clamping and stop options.
- Lightweight aluminum-titanium alloy eases handling effort.
- Functions effectively as both a stop and a table extension.
- Fine scale ensures consistent and repeatable accuracy.
- Recommended for use in pairs to maintain balanced setups.
Key Features:
- Strong yet lightweight aluminum-titanium alloy construction.
- Large format design enhances stability with tall parts.
- Fine scale accuracy ensures precise alignment.
- Three-dimensional design maximizes clamping flexibility.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280141
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 800mm (31.50" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 22.93 lbs. (10.4 kg.)
- Material: Aluminum-Titanium Alloy
Common Uses:
This Stop and Clamping Square secures tall and heavy workpieces with precision while reducing operator strain during setup. Its lightweight alloy construction improves efficiency in repositioning, while the three-dimensional design delivers versatile stop and clamping options. It is well-suited for welding and assembly tasks requiring both high strength and flexible fixturing.
