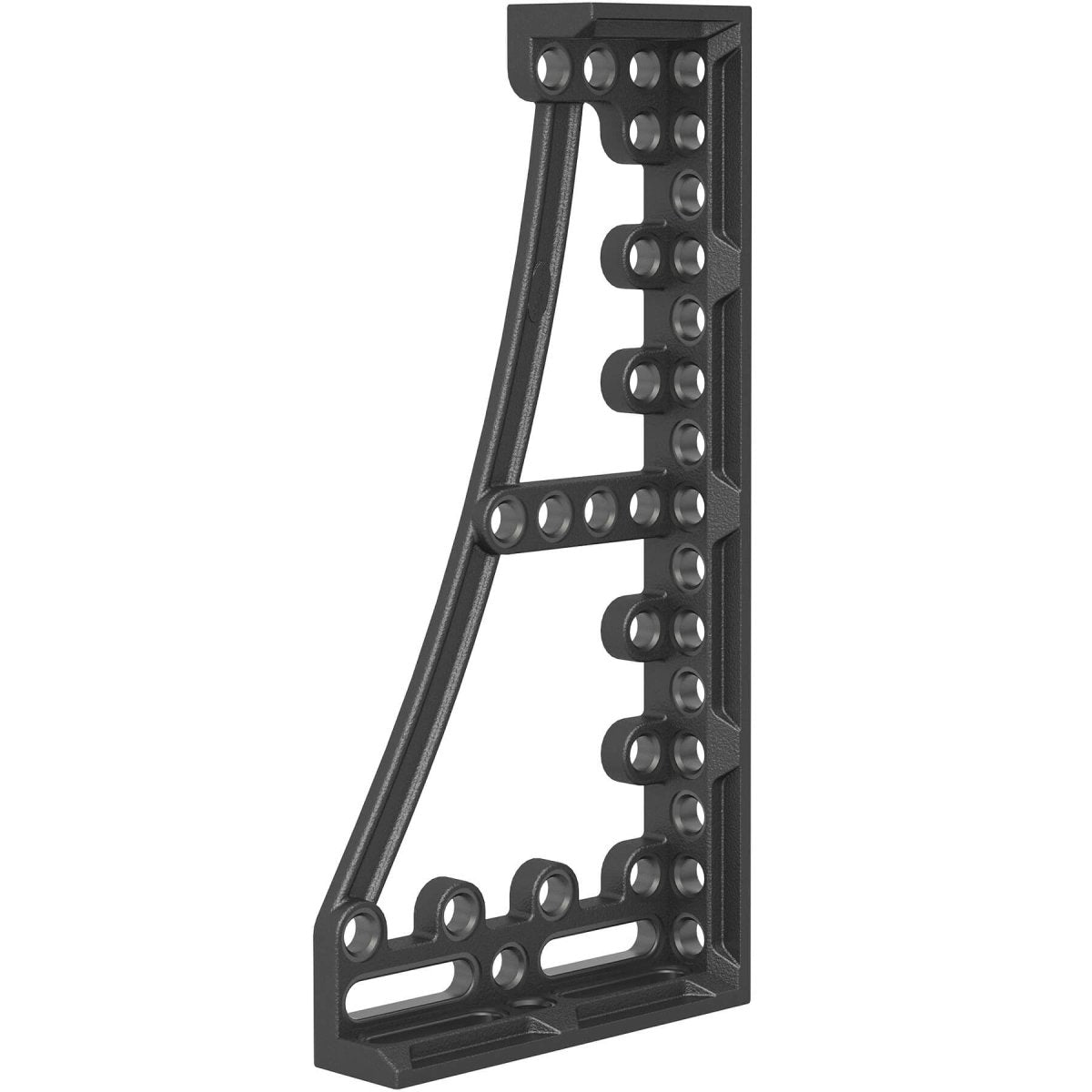

The Siegmund Stop and Clamping Square 800 GK Left Nitrided delivers unmatched support and stability for heavy-duty welding and fabrication. With its three-dimensional design, it offers multiple clamping options and doubles as a table extension for oversized assemblies. Made from GGG40 ductile cast iron with a nitrided finish, it provides exceptional strength, wear resistance, and long-term reliability in demanding shop environments.
- Supports large workpieces with precise stability.
- Functions as both a stop and an extension surface.
- GGG40 ductile cast iron construction ensures durability.
- Nitrided finish resists wear and corrosion.
- Left-side orientation with fine scale for accuracy.
- Recommended for pair use to maximize stability.
Key Features:
- Provides stable support for oversized and heavy assemblies.
- Durable nitrided finish extends working life.
- Versatile function as stop and table extension.
- Left-oriented with fine scale for precise alignment.
- Optimized for Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 800mm (31.50" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 59.52 lbs. (27 kg.)
- Material: GGG40 ductile cast iron, nitrided
Common Uses:

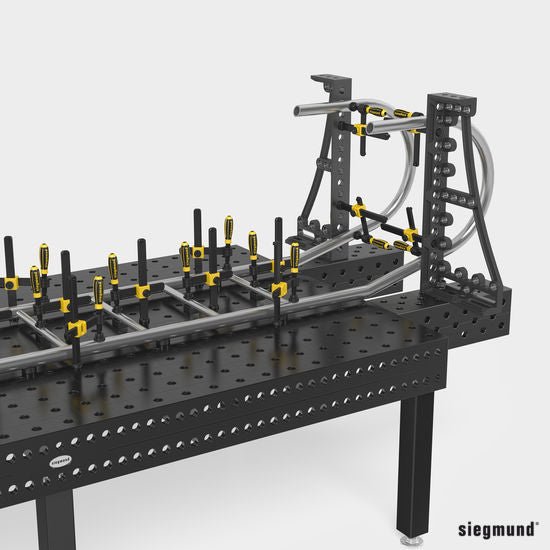

This Stop and Clamping Square is relied on for positioning and securing large, heavy workpieces on Siegmund System 28 Metric Series tables. It enhances setup flexibility by functioning as both a stop and a table extension, supporting oversized assemblies with precision. Shops use it when stability, strength, and long-term accuracy are required for demanding welding and fabrication tasks.
