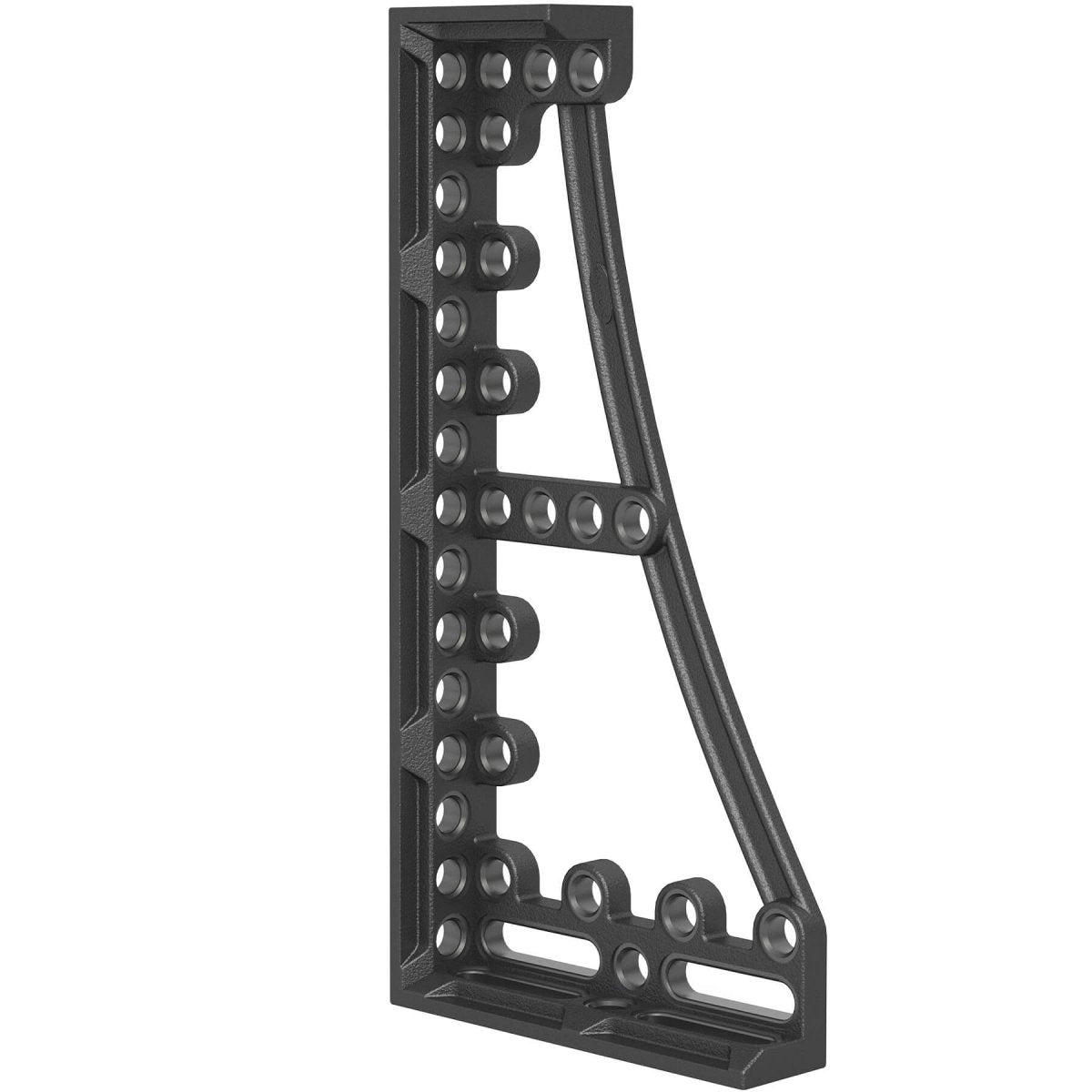

The Siegmund Stop and Clamping Square 800 GK Right Nitrided provides maximum stability and versatility for heavy-duty welding and assembly tasks. Its three-dimensional design allows multiple clamping options and doubles as a reliable table extension. Built from GGG40 ductile cast iron with a nitrided surface, it ensures long service life, high wear resistance, and consistent accuracy under demanding shop conditions.
- Supports large-scale assemblies with stable alignment.
- Functions as both a stop and table extension.
- Constructed from GGG40 ductile cast iron for strength.
- Nitrided finish resists wear and corrosion.
- Right-side orientation with integrated fine scale.
- Recommended for use in pairs for balanced performance.
Key Features:
- Reliable support for oversized and heavy components.
- Durable nitrided finish ensures long-term use.
- Versatile design offers stop and extension functionality.
- Right-oriented stop delivers precision and repeatability.
- Optimized for Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 800mm (31.50" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 59.52 lbs. (27 kg.)
- Material: GGG40 ductile cast iron, nitrided
Common Uses:

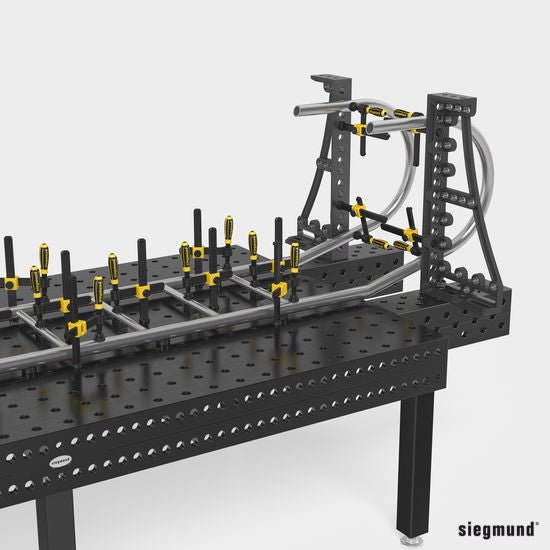

This Stop and Clamping Square is used for holding and positioning large, heavy workpieces on Siegmund System 28 Metric Series tables. It delivers stable alignment and setup flexibility, serving both as a stop and as a table extension. Its heavy-duty cast iron body and nitrided finish make it a trusted solution for high-load welding and fabrication environments.
