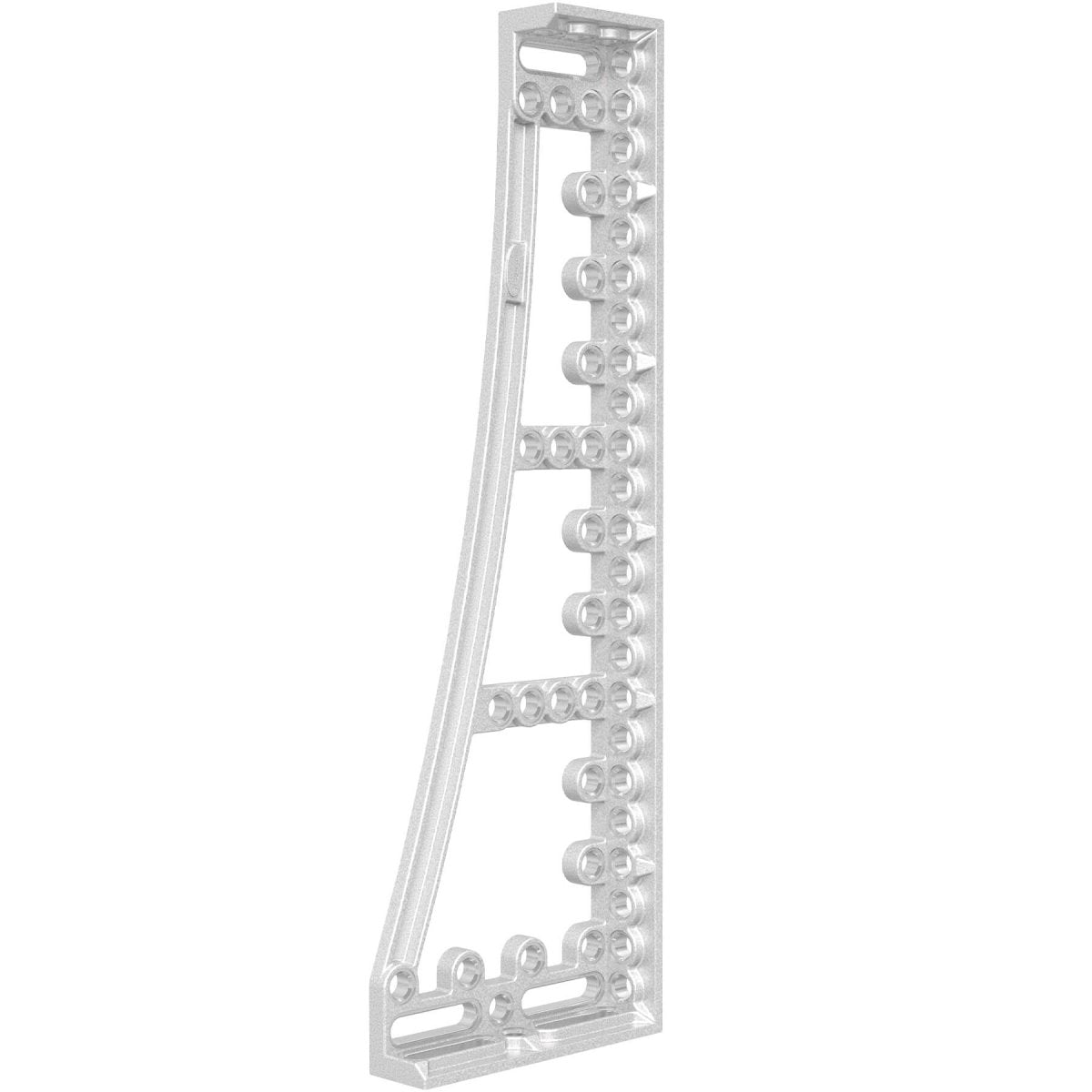

The SiegmundStop and Clamping Square is designed for securing oversized workpieces with strength and precision, while keeping handling manageable. Constructed from aluminum-titanium alloy, it combines high stability with reduced weight, making it suitable for large-scale welding and assembly applications. Its tall 1200mm height and three-dimensional design provide multiple clamping and stop options to accommodate demanding setups.
- Tall 1200mm height supports extra-large or tall components securely.
- Three-dimensional body enables flexible clamping configurations.
- Aluminum-titanium alloy balances rigidity with reduced weight.
- Functions as both a stop and an extension of the welding table.
- Fine scale ensures accurate and repeatable adjustments.
- Best used in pairs to provide balanced and stable fixturing.
Key Features:
- Durable yet lightweight aluminum-titanium alloy construction.
- Large 1200mm height supports oversized and tall parts.
- Fine scale accuracy for precise positioning.
- Three-dimensional body provides versatile fixturing options.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280148
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 1200mm (47.24" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 29.76 lbs. (13.5 kg.)
- Material: Aluminum-Titanium Alloy
Common Uses:

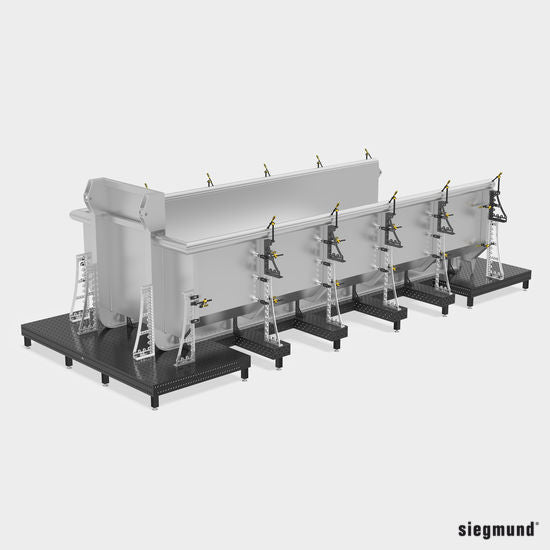

This Stop and Clamping Square stabilizes large, tall, and heavy workpieces while minimizing strain on operators. Its aluminum-titanium alloy build reduces weight without compromising rigidity, and its three-dimensional body ensures versatile clamping and stop options. It is particularly effective in large-scale welding and assembly setups requiring precision and reliability.
