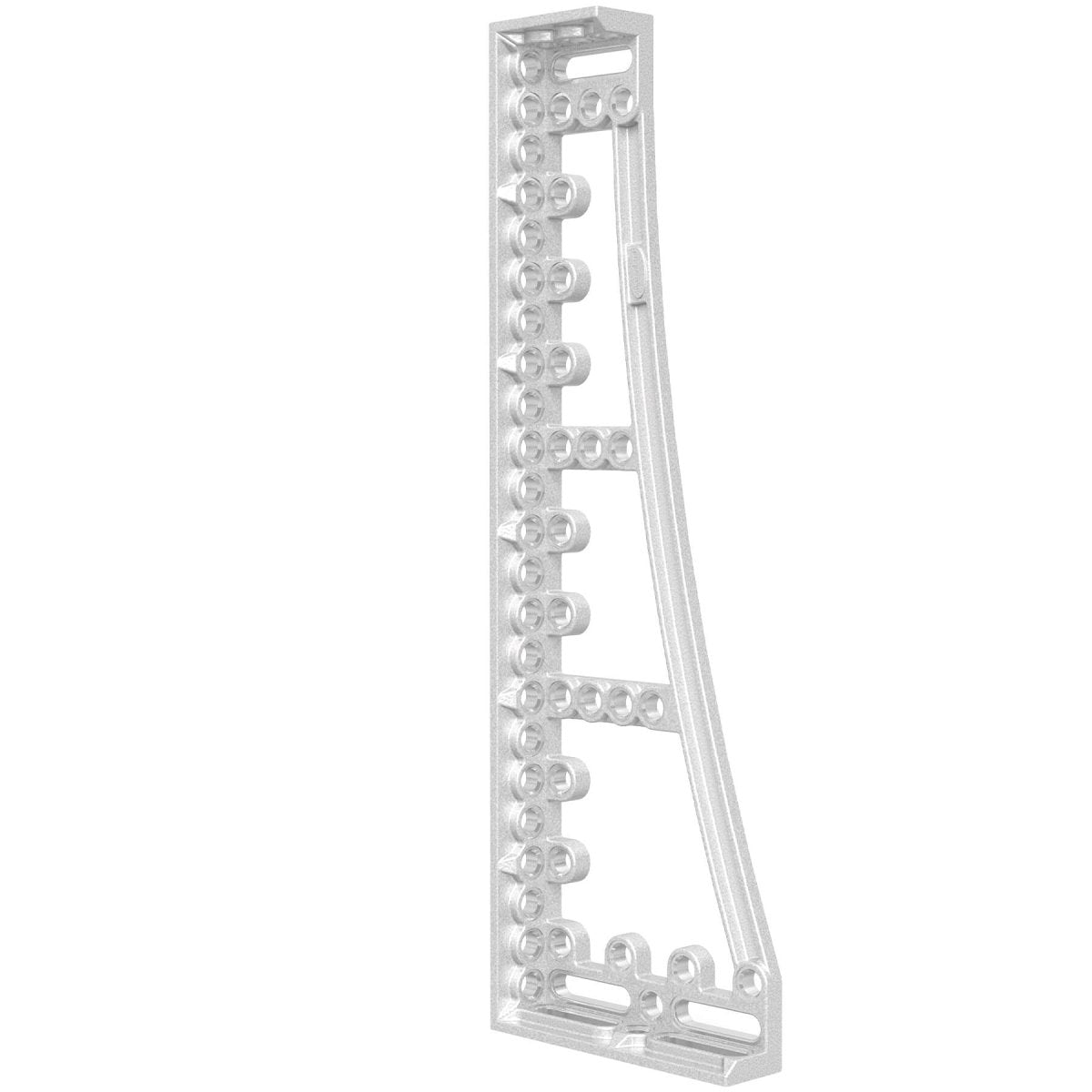

The Siegmund Stop and Clamping Square is designed for large-scale fixturing where stability, precision, and reduced handling weight are essential. Built from aluminum-titanium alloy, it combines strength with lighter handling, making it easier to position and adjust while supporting oversized workpieces. Its tall 1200mm format and three-dimensional body provide multiple stop and clamping options for demanding welding and assembly setups.
- Tall 1200mm height stabilizes extra-large and tall workpieces.
- Three-dimensional design supports versatile clamping configurations.
- Aluminum-titanium alloy reduces handling effort without losing rigidity.
- Functions as both a stop and a table extension.
- Fine scale provides accurate and repeatable positioning.
- Recommended for use in pairs for balanced fixturing setups.
Key Features:
- Lightweight yet strong aluminum-titanium alloy construction.
- Large 1200mm square for securing oversized and tall parts.
- Fine scale accuracy ensures repeatable alignment.
- Three-dimensional body provides flexible fixturing solutions.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280149
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 1200mm (47.24" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 29.76 lbs. (13.5 kg.)
- Material: Aluminum-Titanium Alloy
Common Uses:

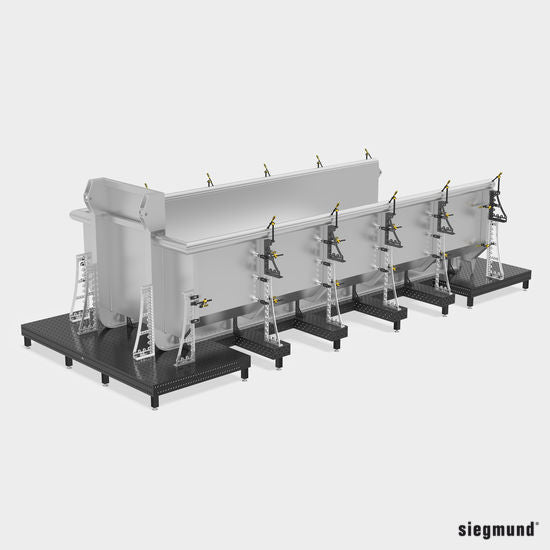

This Stop and Clamping Square provides stability and precision for oversized or tall components while reducing operator fatigue. Its lightweight alloy build improves handling efficiency, and its three-dimensional design allows multiple clamping and stop options. It is a dependable fixture solution for welding and assembly operations requiring strength, precision, and flexibility.
