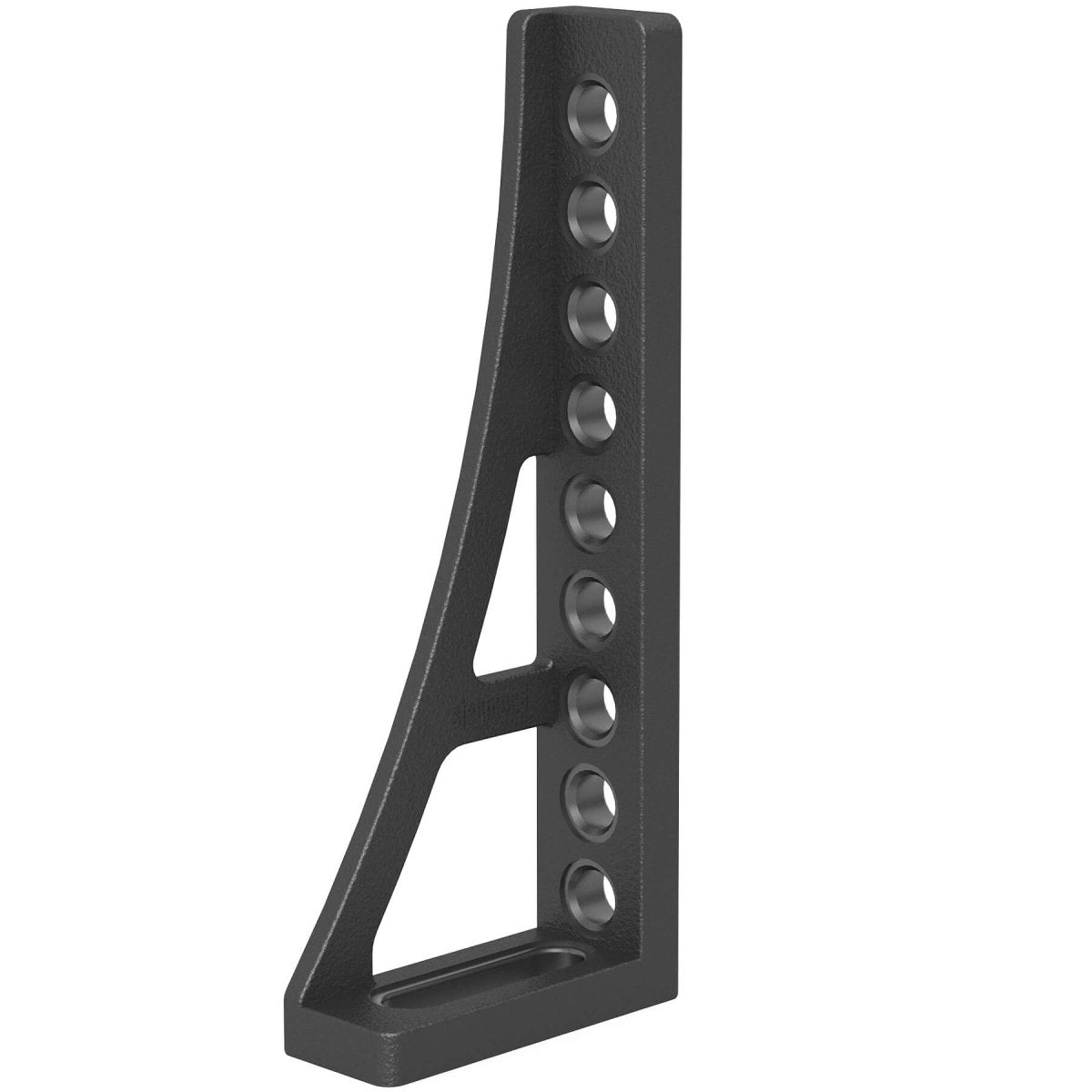

The Siegmund Stop and Clamping Square 500 G is built for maximum stability and adaptability in demanding fabrication environments. Manufactured from high-quality GGG40 ductile cast iron and finished with a nitrided surface, it withstands spatter, wear, and corrosion while maintaining precise alignment over time.
- 500mm height provides secure support for larger components.
- Combination of boreholes and elongated slot allows fixed or adjustable setups.
- Functions as a right-angle stop or as an extension of the welding table.
- Nitrided finish improves durability and resistance to weld spatter.
- Fine scale standard on both sides for accurate and repeatable positioning.
Key Features:
- Heavy-duty construction with 27mm thickness ensures rigidity.
- Elongated slot increases flexibility for clamping and adjustment.
- Premium ductile cast iron with nitrided coating for long service life.
- Supports both small and oversized workpieces with precision.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 200mm (7.87" Inches)
- Width: 75mm (2.95" Inches)
- Height: 500mm (19.69" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 20.72 lbs. (9.4 kg.)
- Material: GGG40 Ductile Cast Iron
Common Uses:
The Stop and Clamping Square 500 G provides strong and versatile fixturing for large assemblies. It delivers accurate right-angle positioning, works as a table extension, and supports both fixed and adjustable setups through its boreholes and elongated slot. This makes it an essential tool for handling oversized parts in welding, fabrication, and precision assembly.
