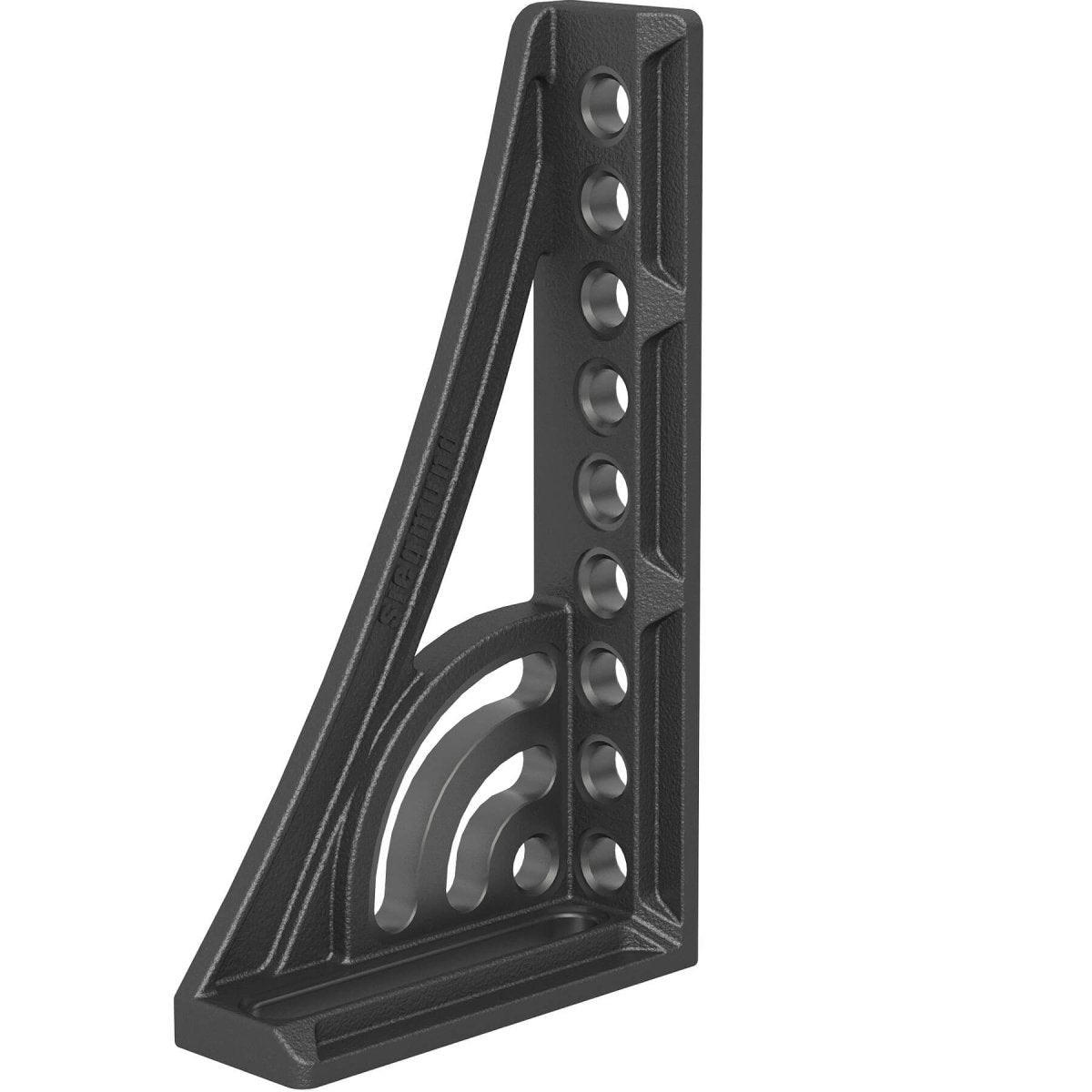

The Siegmund Stop and Clamping Square 500 G with Rotation Angle Left Nitrided provides flexible, stable positioning for heavy-duty welding applications. Its combination of system boreholes and elongated slots allows variable adjustment, ensuring precision in complex setups. Constructed from high-grade GGG40 ductile cast iron, it delivers long-lasting durability with a nitrided finish for added wear resistance.
- Enables adjustable clamping through boreholes and elongated slot.
- Provides both stop and table extension functionality.
- Manufactured from GGG40 ductile cast iron for stability.
- Nitrided finish enhances durability and corrosion resistance.
- Left-side orientation with integrated fine scale.
- Recommended for use in pairs for balanced setups.
Key Features:

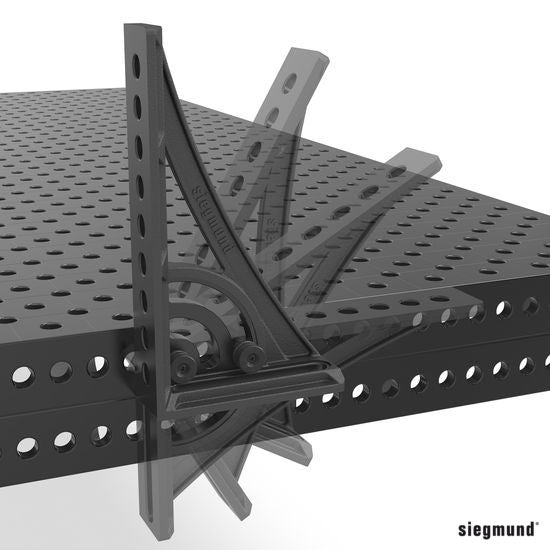

- Versatile clamping with rotation angle and slot adjustment.
- Durable nitrided cast iron body withstands heavy use.
- Supports dual functionality as stop and table extension.
- Left-side stop design ensures accurate alignment.
- Optimized for Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 276mm (10.87" Inches)
- Width: 95mm (3.74" Inches)
- Height: 500mm (19.69" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 25.35 lbs. (11.5 kg.)
- Material: GGG40 ductile cast iron, nitrided
Common Uses:

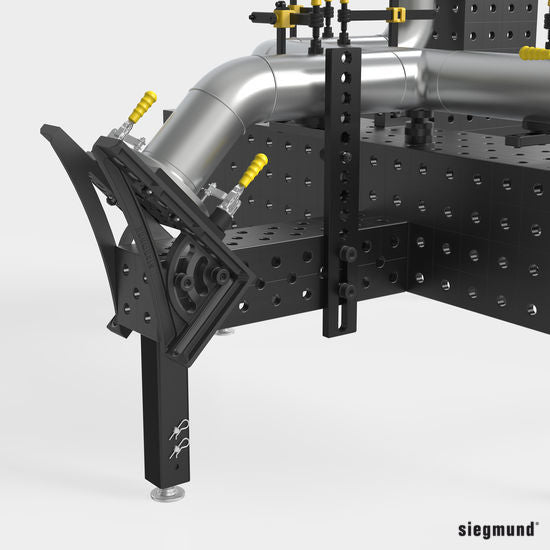

This Stop and Clamping Square is used to secure and align heavy components in variable positions on Siegmund System 28 Metric Series tables. Its adjustable borehole and elongated slot design allow flexible clamping setups, while the nitrided cast iron body ensures strength and stability. Fabricators rely on it for precise alignment and versatile support when working with complex assemblies.
