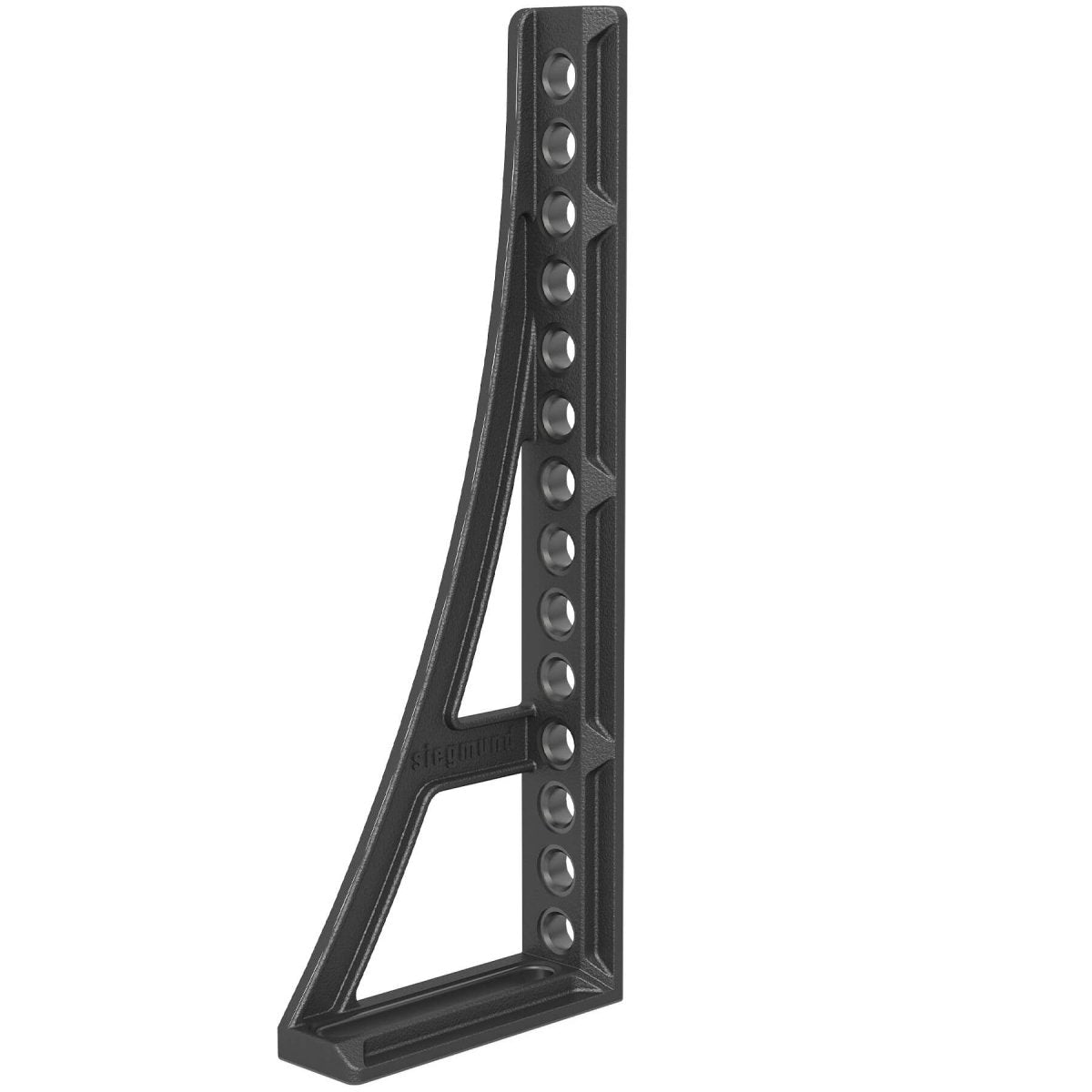

The Siegmund Stop and Clamping Square 750 G Left delivers extreme stability for handling oversized workpieces in demanding fabrication environments. Built from high-quality GGG40 ductile cast iron and finished with a nitrided coating, it provides maximum rigidity, long service life, and precise alignment.
- 750mm height supports very large and heavy components with accuracy.
- Combination of boreholes and elongated slot enables fixed and adjustable use.

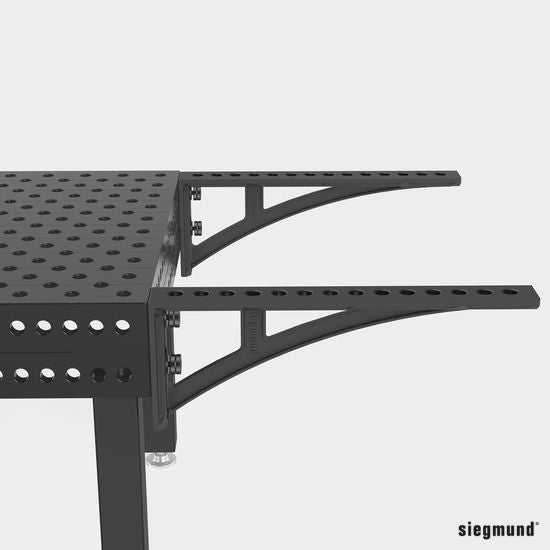

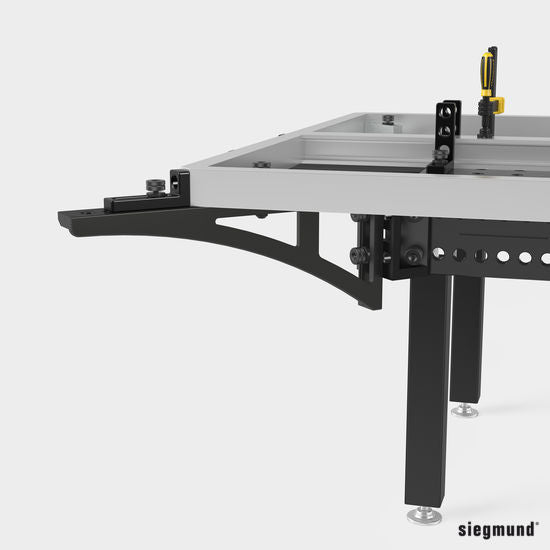

- Functions as a right-angle stop or as a table extension for added workspace.
- Nitrided finish increases resistance against weld spatter, wear, and corrosion.
- Fine scale included on both sides for quick and repeatable setups.
Key Features:
- Heavy-duty 27mm material thickness for uncompromising rigidity.
- Manufactured from GGG40 ductile cast iron for strength and durability.
- Left-hand configuration, recommended for use as a matched pair.
- Nitrided surface finish enhances longevity in production use.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 276mm (10.87" Inches)
- Width: 85mm (3.35" Inches)
- Height: 750mm (29.53" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 29.98 lbs. (13.6 kg.)
- Material: GGG40 Ductile Cast Iron
Common Uses:

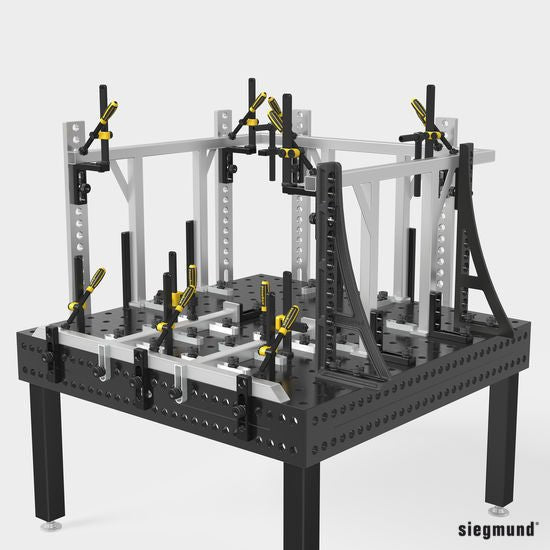

The Stop and Clamping Square 750 G Left provides maximum stability for extra-large parts in welding, fabrication, and heavy assembly work. It delivers rigid fixturing for oversized components, serves as a table extension for added capacity, and adapts to both fixed and adjustable setups. Its left-hand orientation makes it particularly effective when paired with the right-hand model for balanced precision.
