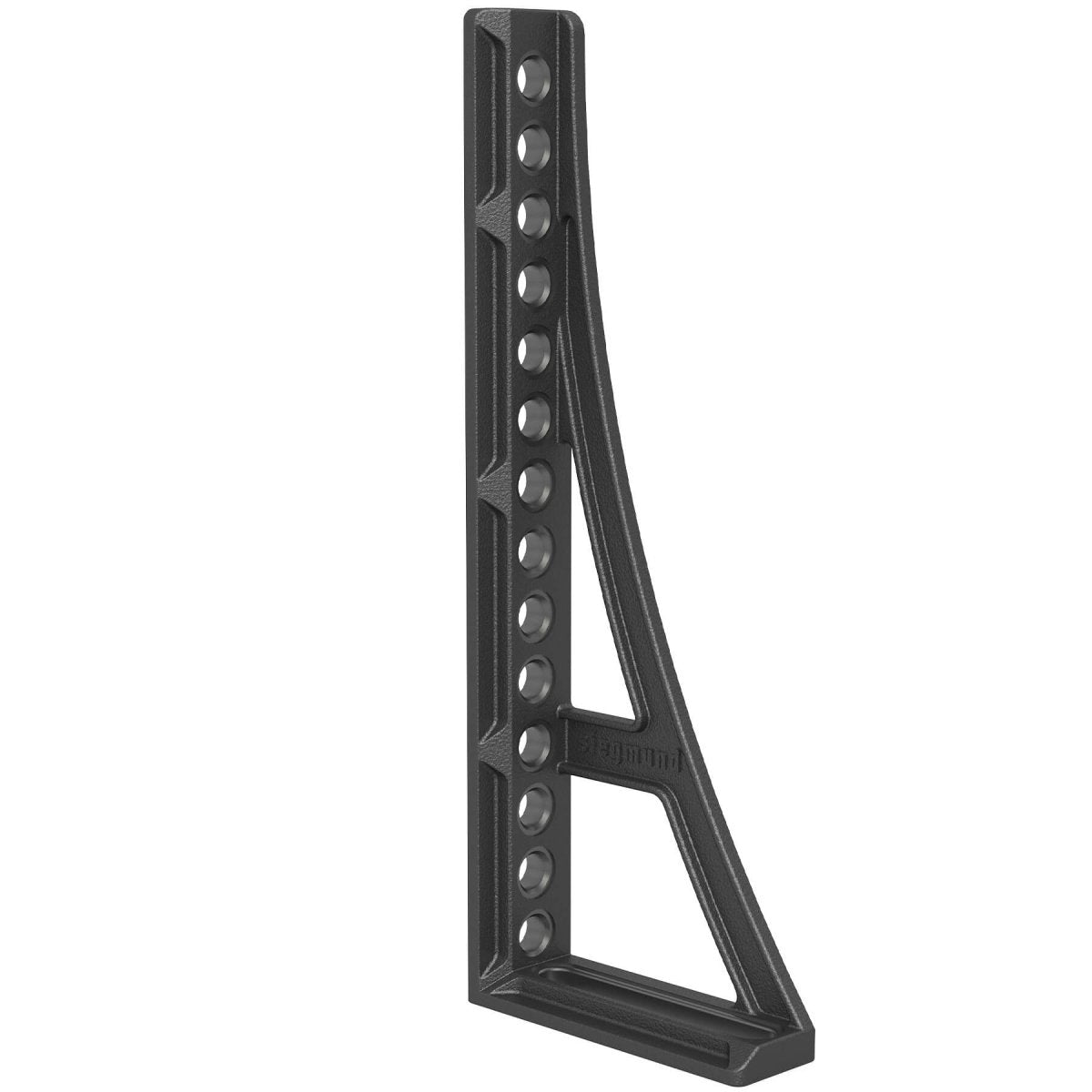

The Siegmund Stop and Clamping Square 750 G Right delivers exceptional strength and stability for handling oversized and heavy components. Manufactured from GGG40 ductile cast iron and finished with a nitrided coating, it ensures long-lasting resistance against spatter, wear, and corrosion while maintaining precise positioning.
- 750mm height supports large-scale fabrication projects with accuracy.
- Boreholes combined with elongated slot allow fixed and adjustable setups.

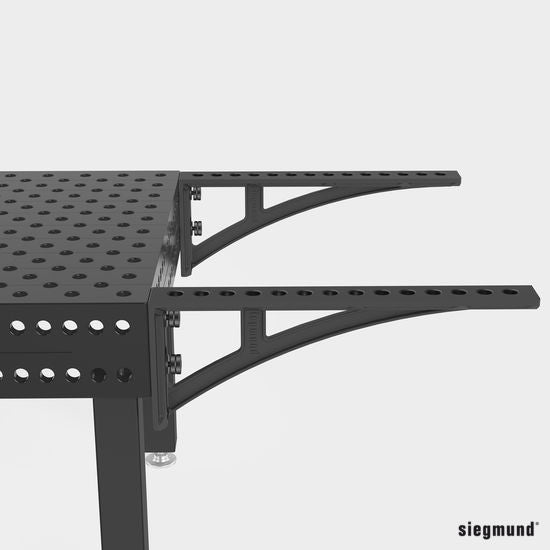

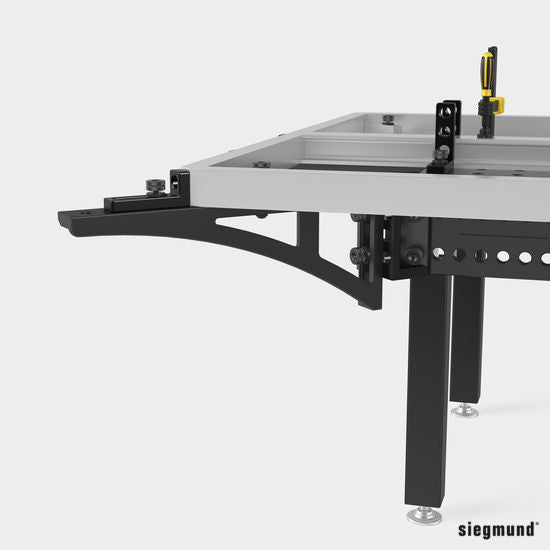

- Functions as a right-angle stop or as a table extension.
- Nitrided surface guarantees durability and consistent performance.
- Fine scale standard on both sides ensures repeatable alignment.
Key Features:
- Robust 27mm thickness for maximum rigidity under heavy loads.
- Constructed from premium GGG40 ductile cast iron for strength.
- Right-hand configuration, recommended for use in pairs.
- Nitrided finish extends service life in demanding shop conditions.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 276mm (10.87" Inches)
- Width: 85mm (3.35" Inches)
- Height: 750mm (29.53" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 29.98 lbs. (13.6 kg.)
- Material: GGG40 Ductile Cast Iron
Common Uses:

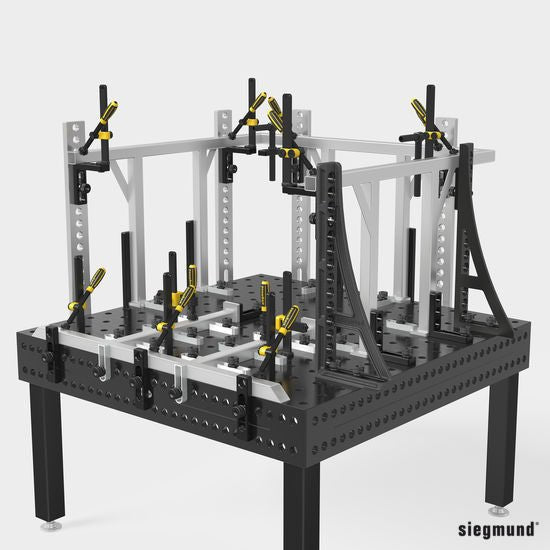

The Stop and Clamping Square 750 G Right provides rock-solid fixturing for oversized assemblies in welding, fabrication, and heavy-duty production. It ensures reliable right-angle alignment, serves as a table extension when added workspace is needed, and offers both fixed and variable positioning through its boreholes and elongated slot. Designed for use as a matched pair with the left-hand version, it delivers balanced precision for the largest components.
