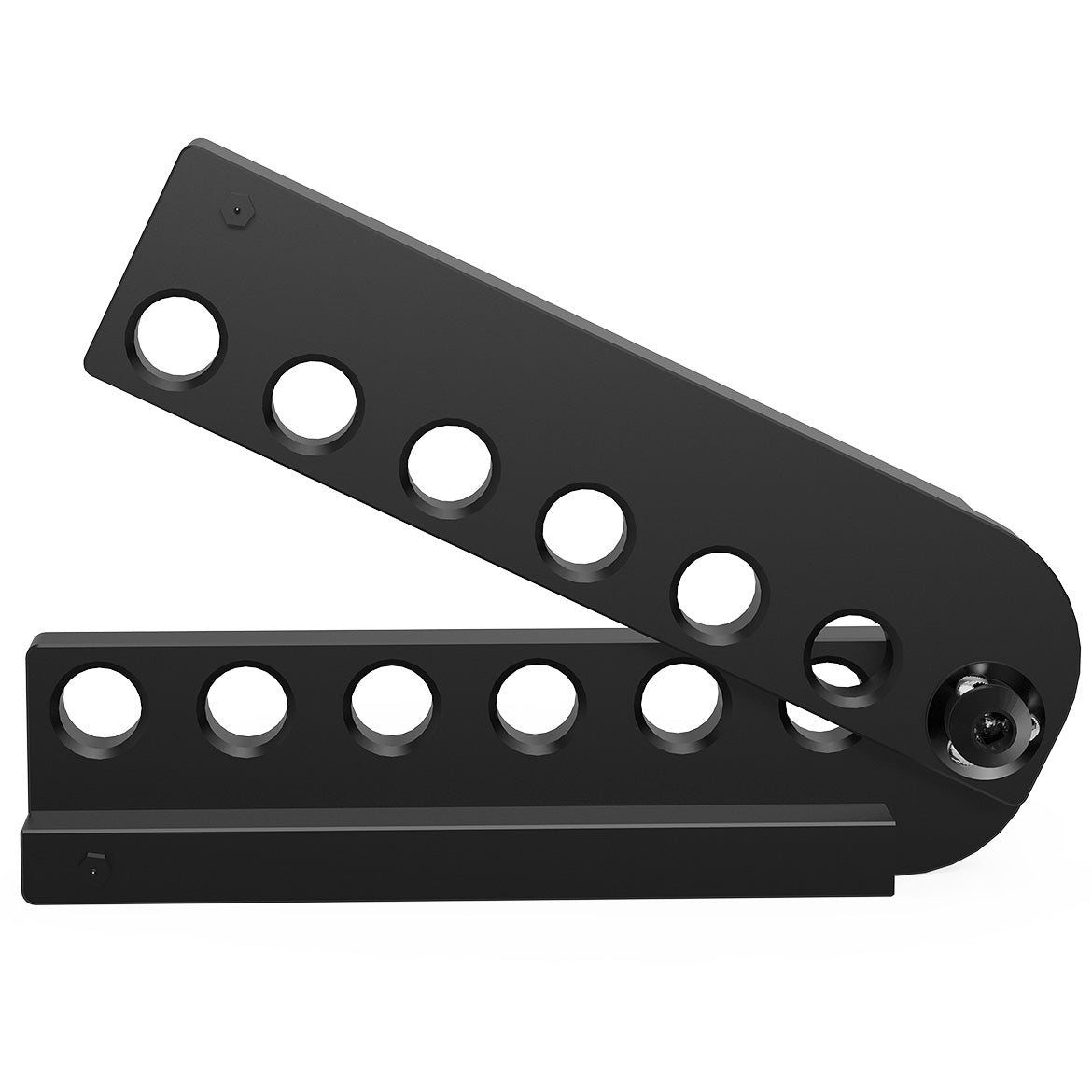

The Siegmund Universal Angle Mechanical Clamping system provides precise and repeatable angle adjustment for demanding welding and assembly setups. With adjustable settings from 10° to 150°, it offers fabricators the ability to lock in custom angles with confidence. Built from high-strength steel and nitrided for wear resistance, it ensures durability and accuracy over long-term shop use.
- Adjustable between 10° and 150° for flexible setups.

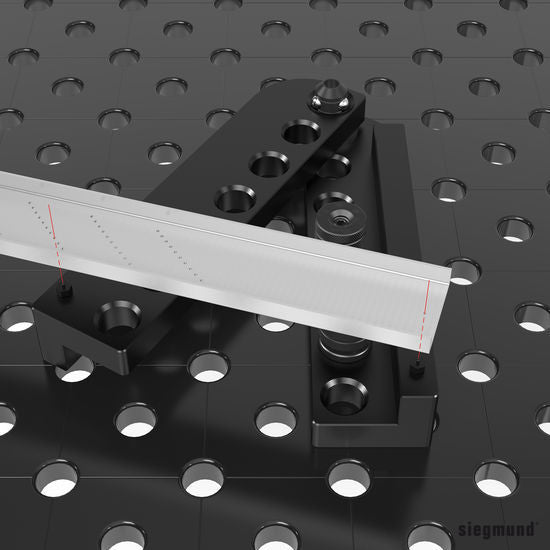

- Delivers repeatable precision with included setup template.

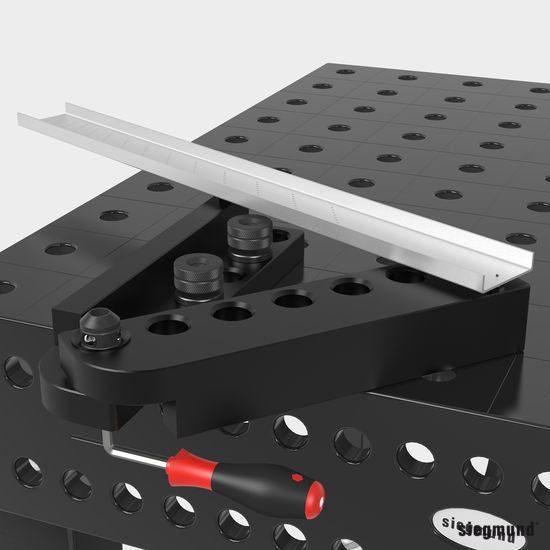

- Locks securely using a hex wrench for reliable positioning.
- Nitrided finish increases wear resistance and extends service life.
- Provides a robust clamping solution for angle applications.
Key Features:
- Allows precise and repeatable angle adjustment across a wide range.
- Ensures durable performance with nitrided construction.
- Secures angles with mechanical clamping and hex wrench control.
- Includes setup template for quick and accurate adjustments.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Side Length: 350mm (13.78" Inches)
- Weight: 31.97 lbs. (14.5 kg.)
- Surface: Plasma Nitrided
- Adjustment Range: 10°–150°
Common Uses:

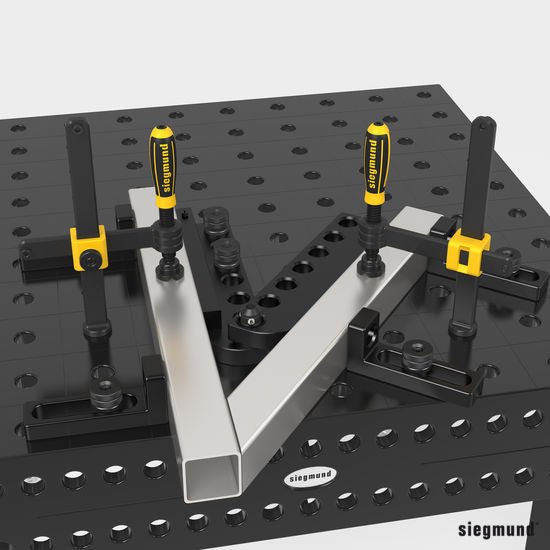

The Siegmund Universal Angle Mechanical Clamping is used for welding and fixturing applications where precise angular positioning is required. It allows fabricators to set and lock angles securely, ensuring repeatability in production runs. Shops rely on this tool for versatile angle control in frames, structures, and assemblies where accuracy and durability are essential.
