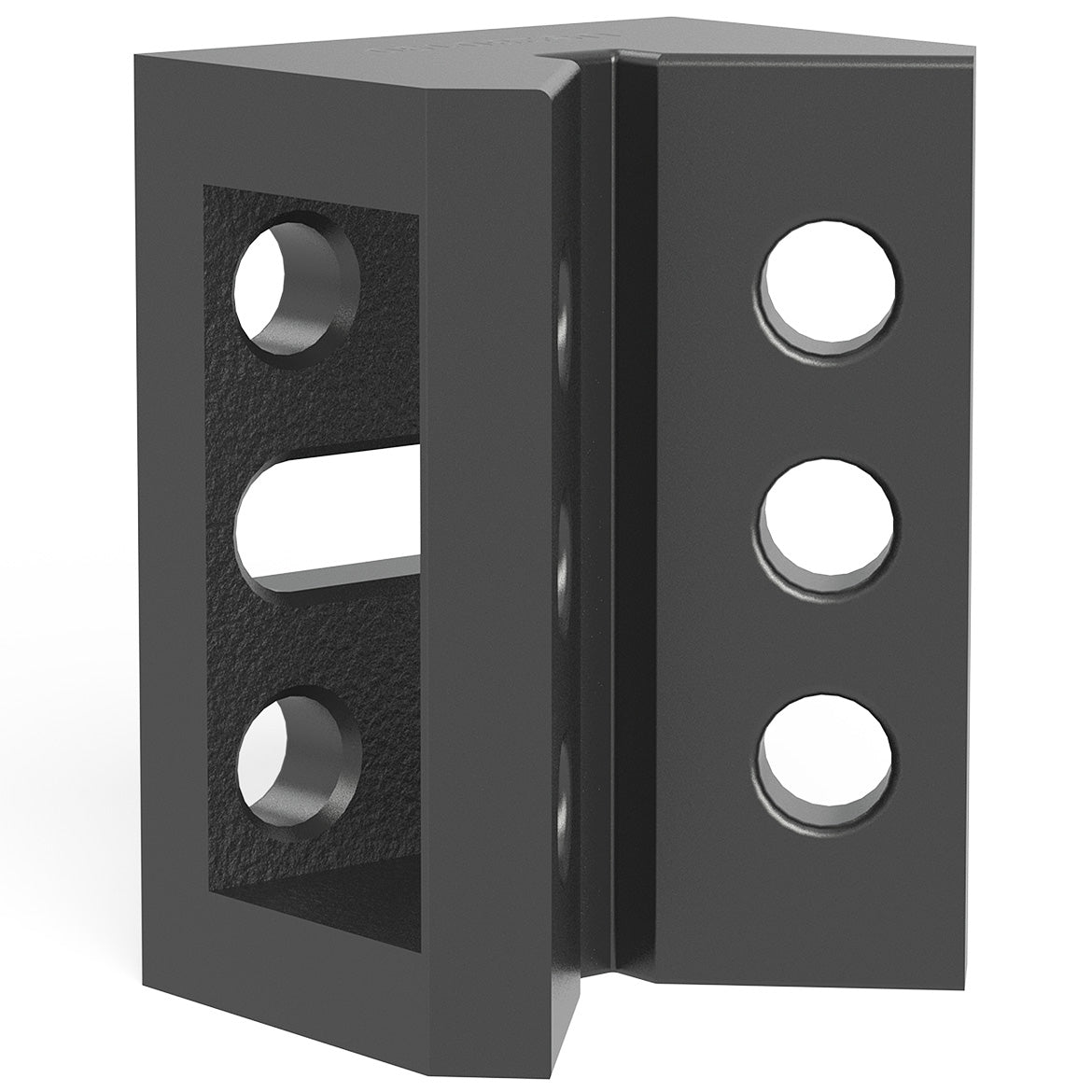

The Siegmund Corner Connection expands table capacity and enhances setup flexibility by adding secure joining points at multiple angles. Its compact size and durable cast iron construction make it a versatile connecting, stopping, or clamping element for welding and assembly work. With nitrided finish for wear resistance, it ensures long service life even under heavy use.
- Extends table diagonally at a 45° angle to create more workspace.
- Functions as a prism, stop, or connecting piece.
- Sturdy nitrided cast iron provides durability and wear resistance.
- Five usable faces allow multiple connection and clamping options.
- Compatible with Siegmund System 28 Metric Series squares.
- Compact design provides strength without excessive bulk.
Key Features:
- High-strength GGG40 ductile cast iron with nitrided finish.
- Compact 200x150x120mm format for versatile use.
- Supports connecting, stopping, and clamping functions.
- Five working faces maximize fixturing possibilities.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280190.N
- System: Siegmund System 28 Metric Series
- Length: 200mm (7.87" Inches)
- Width: 150mm (5.91" Inches)
- Height: 120mm (4.72" Inches)
- Weight: 26.01 lbs. (11.8 kg.)
- Material: GGG40 Ductile Cast Iron, Nitrided Finish
Common Uses:
This Corner Connection provides a secure way to extend a welding table diagonally or reinforce setups with extra clamping options. It connects easily with other Siegmund squares and fixtures, offering strength and precision in space-sensitive setups. Its nitrided finish ensures durability under frequent use in fabrication environments.
