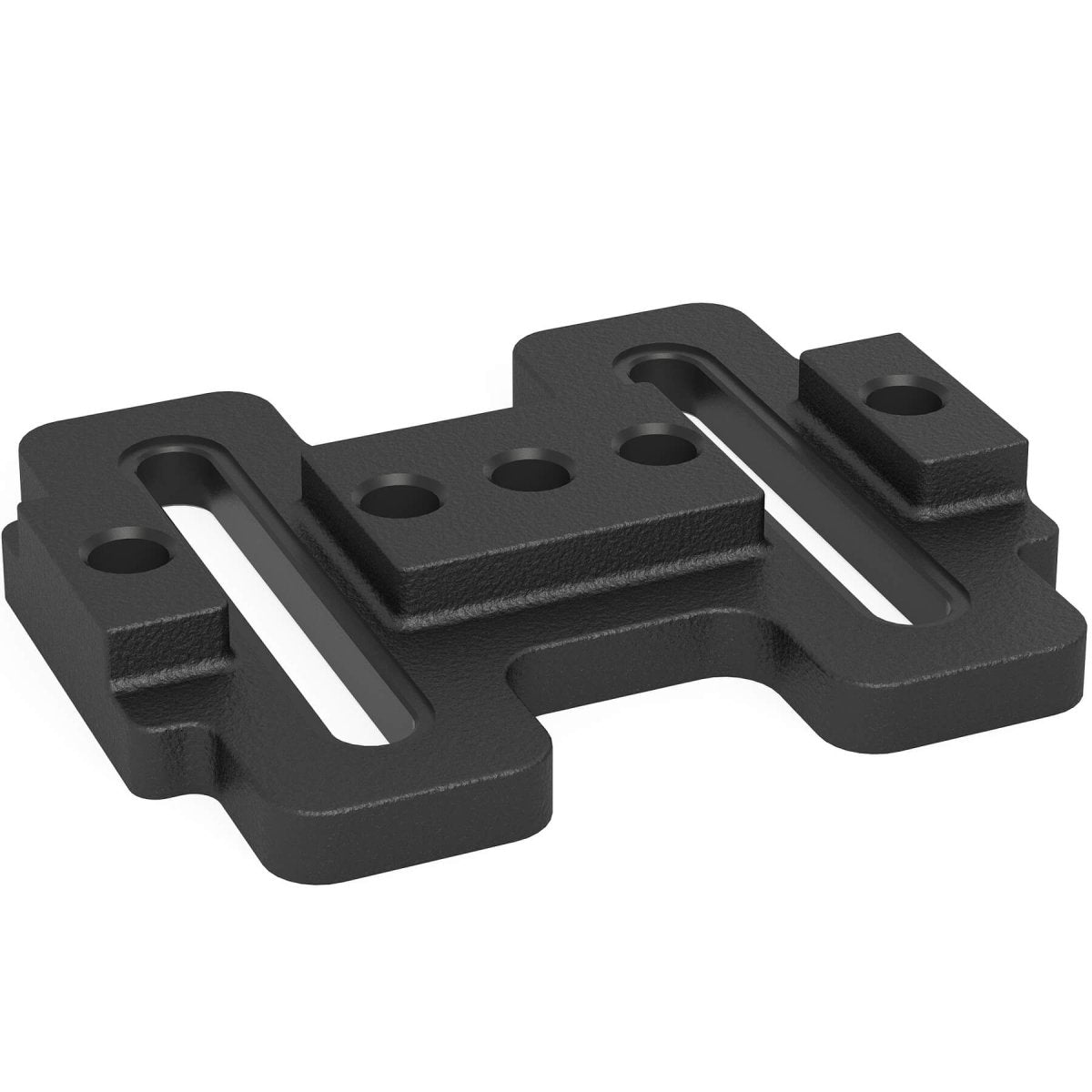

The Siegmund Sliding Base expands the flexibility of your welding and fixturing setup by enabling precision movement across multiple axes. Built from durable GGG40 ductile cast iron and nitrided for long service life, it delivers secure positioning even under demanding shop conditions.

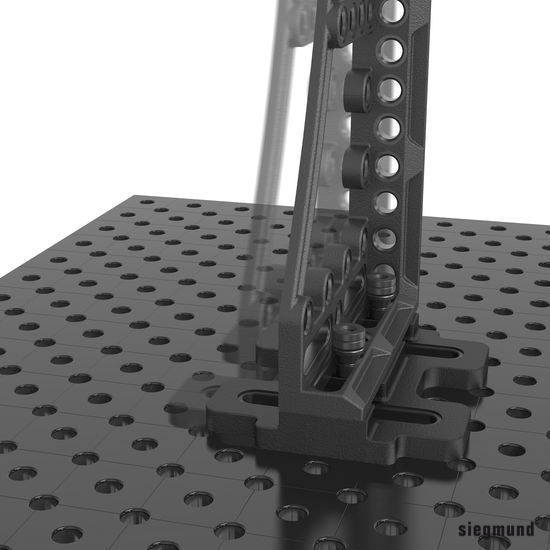

- Provides two axes of adjustment when paired with squares.

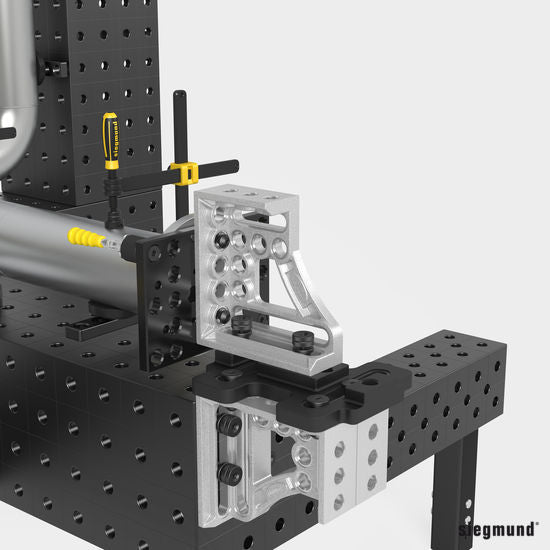

- Allows the addition of a second sliding base for a third axis of adjustment.
- Constructed from high-quality GGG40 ductile cast iron for durability.
- Nitrided finish increases wear resistance and extends service life.
- Designed for fast, precise repositioning of large or complex setups.
Key Features:
- Delivers smooth multi-axis adjustment for complex assemblies.
- Provides durable performance with GGG40 ductile cast iron.
- Protects against wear and corrosion with nitrided surface.
- Ensures secure clamping and repeatable accuracy.
- Compatible with Siegmund System 28 Metric Series setups.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 350mm (13.78" Inches)
- Width: 300mm (11.81" Inches)
- Height: 50mm (1.97" Inches)
- Weight: 35.27 lbs. (16 kg.)
- Material: GGG40 Ductile Cast Iron, Plasma Nitrided
Common Uses:
The Siegmund 350x300x50mm Sliding Base supports heavy fabrications that require multi-axis movement without sacrificing accuracy. It provides secure positioning for large frames, fixtures, and assemblies, reducing setup time while maintaining tight tolerances. Shops use it to increase flexibility in complex builds where precision and repeatability are critical.
