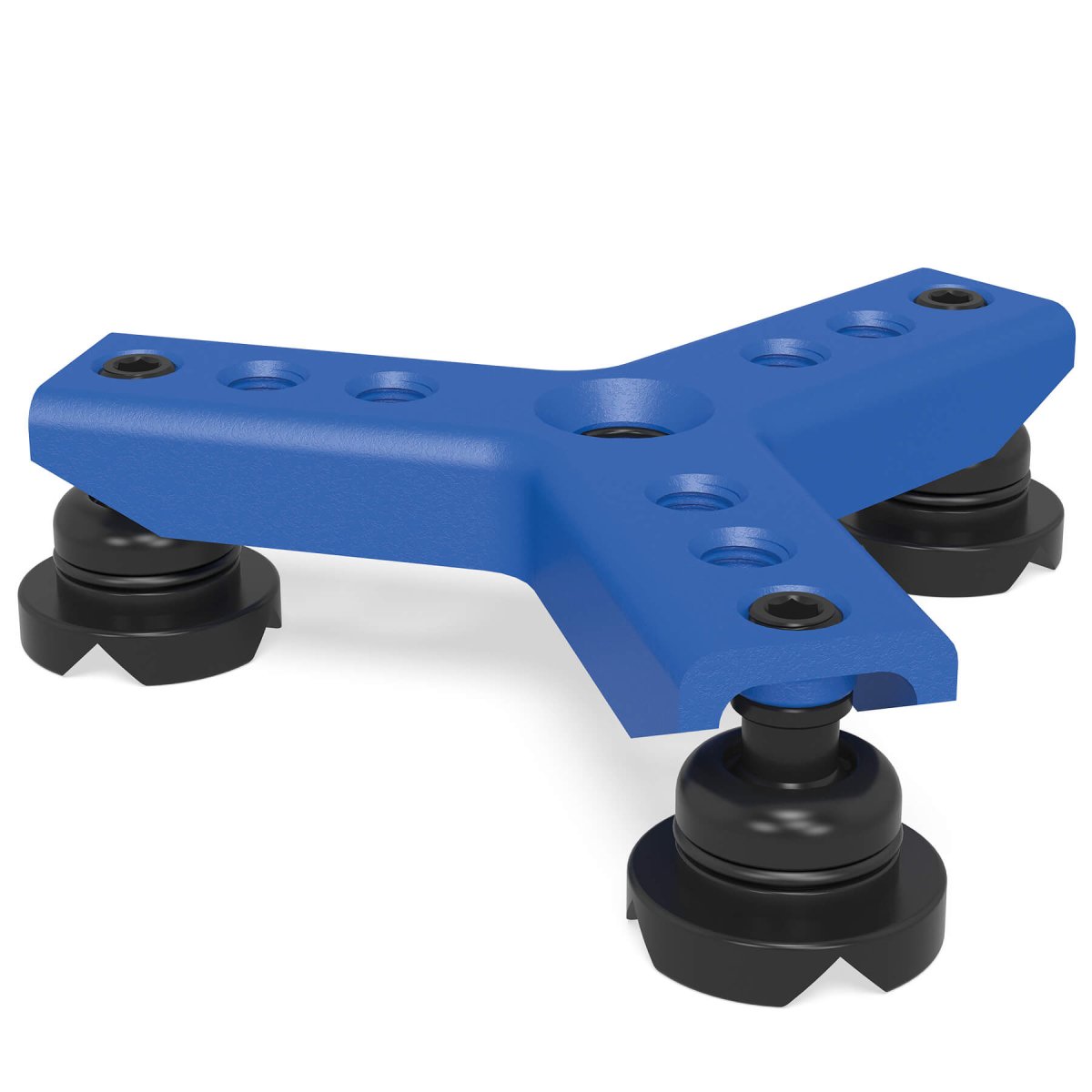

The 2-280211 Clamping Bridge 3P provides three clamping points in one compact fixture, enabling efficient multi-component setups within Siegmund System 28. Its three-dimensional design makes it possible to clamp in multiple planes simultaneously while maintaining precision and stability.
- Measures 170mm (6.69" Inches) in length, 35mm (1.38" Inches) in width, and 20mm (0.79" Inches) in height.
- Weighs 1.28 lbs. (0.58 kg.), providing strength without unnecessary bulk.
- Includes clamping bridge, three ball pins, and three prisms for complete functionality.
- Pendulum compensation allows secure clamping on uneven surfaces.
- Prisms are interchangeable for safe integration with various welding elements.
- Quick-shift spherical pin ensures smooth setup changes and reliable operation.
Key Features:
- Three clamping points for multi-component fixturing.
- Three-dimensional design supports clamping in multiple planes.
- Pendulum compensation ensures precision on uneven surfaces.
- Fully compatible with Siegmund System 28 boreholes and clamps.
Specifications:
- Item No.: 2-280211
- System: Siegmund System 28 Metric Series
- Length: 170mm (6.69" Inches)
- Width: 35mm (1.38" Inches)
- Height: 20mm (0.79" Inches)
- Weight: 1.28 lbs. (0.58 kg.)
- Material: Steel, Burnished and Precision-Machined
Common Uses:

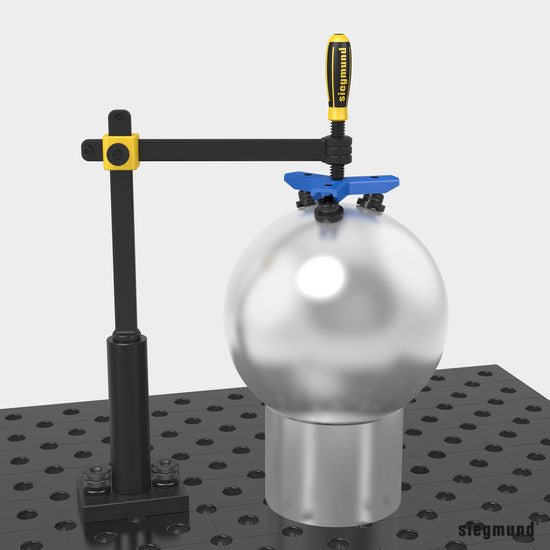

The 2-280211 Clamping Bridge 3P is used for securing multiple components simultaneously, making it ideal for welding and assembly projects that demand efficiency. Its three-dimensional geometry allows clamping in multiple planes, while pendulum compensation ensures stability even on uneven surfaces.
