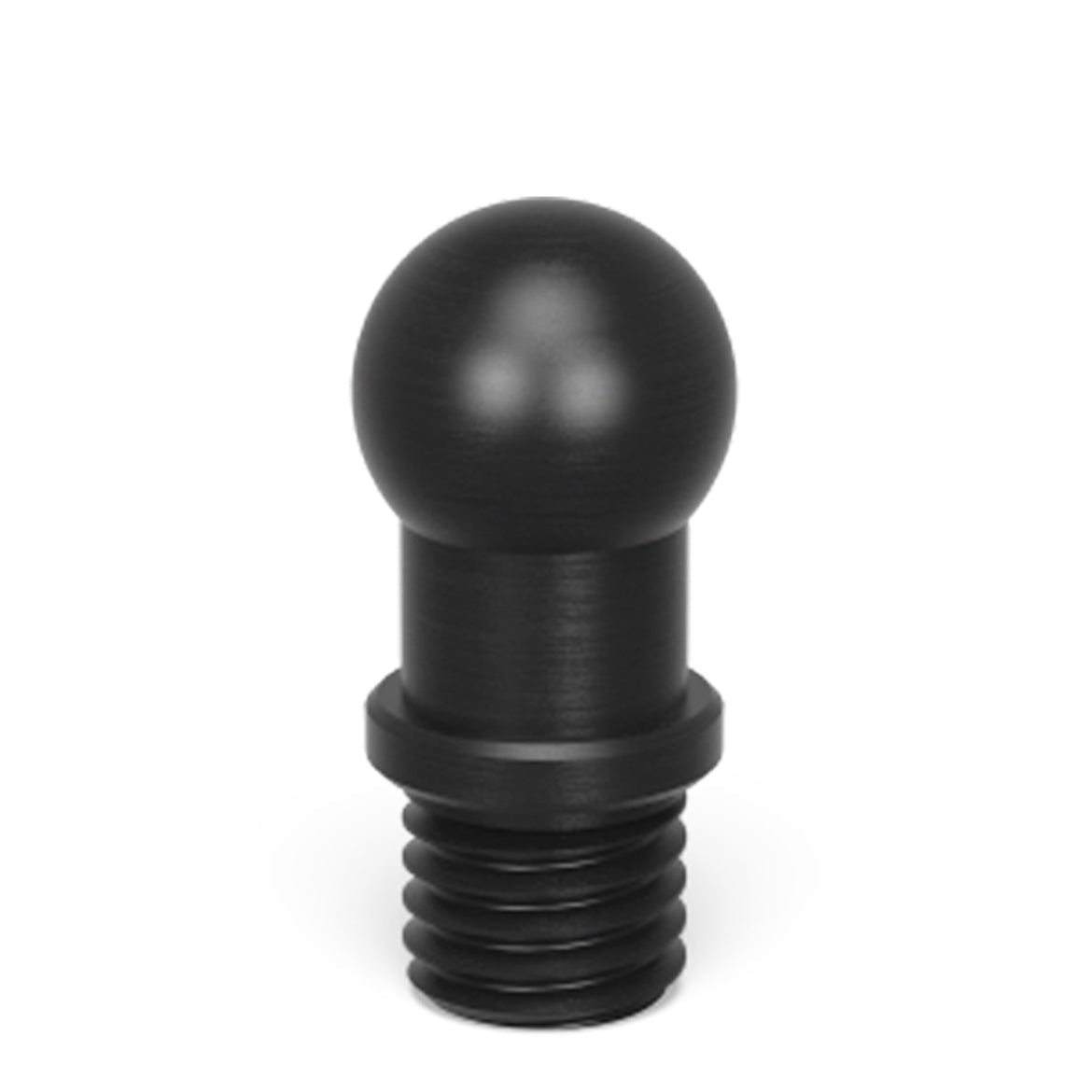

The Siegmund Spherical Pin for Clamping Bridges is designed to provide secure and reliable positioning for System 28 Metric clamping bridge setups. Engineered specifically for use with metric clamping bridges and System 28 metric screw clamps, this compact component ensures stable operation and smooth integration within Siegmund fixturing systems.
Its spherical design allows proper seating and alignment during clamping operations while maintaining secure positioning under load. Manufactured for durability and precision, the pin is built to withstand repeated use in demanding welding and fabrication environments.
The compact design allows quick installation and dependable functionality for clamping bridge applications where precision and repeatability are critical.
Key Features:
- Designed specifically for System 28 Metric clamping bridges.
- Compatible with System 28 metric screw clamps.
- Spherical head design provides stable seating and positioning.
- Compact and durable construction for repeated shop use.
- Ideal for precision fixturing and bridge clamping setups.
Specifications:
- System: Siegmund System 28 Metric Series
- Diameter: 16mm
- Weight: 0.09 lbs.
Common Uses:
The Spherical Pin for Clamping Bridges is used to secure and position clamping bridge assemblies within System 28 Metric fixturing setups. It provides stable engagement for screw clamp applications and helps ensure repeatable alignment during welding, fabrication, and assembly operations. Its compact size and durable construction make it an essential accessory for precise bridge clamping configurations.
