2-280252.P: Clamping Plate 400-600 Ibs. with Fixing Bolt (Nitrided)
- Product SKU: 2-280252.P
- Category: System 28mm Metric Series Welding Tables and Fixturing Accessories

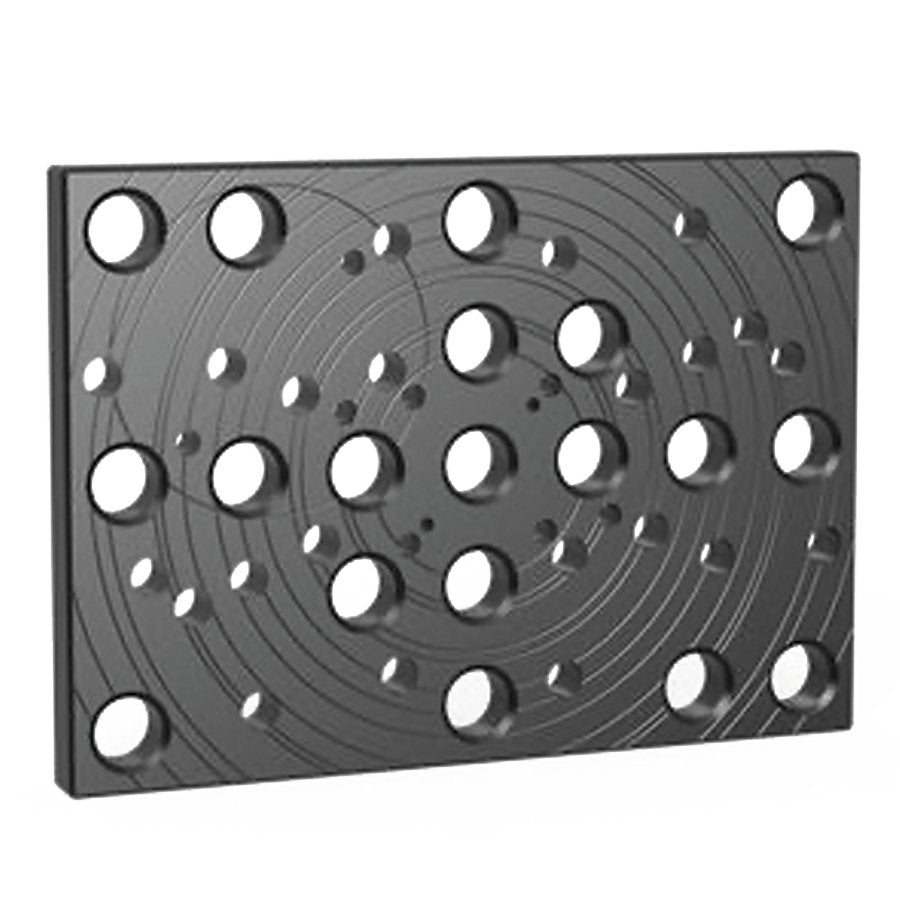

Clamping Plate US Standards ANSI / ASME - for flange US standard (Item No. 2-280252.P, also known as S2-280252.P), ANSI / ASME B 16,5 400-600 lbs, from 1/2" to 6" Clamping Plate for US standard, attached with clamping bolts to Siegmund elements, like squares. Pipe flanges can be positioned quickly at the clamping plate by using fixing bolts. 28 mm bore holes provide fastening of additional clamping elements, enabling a wide range of application options. Additional nominal widths are available upon request. Scope of delivery for Clamping Plate 150 lbs: 2x fixing bolts Ø 15,5, 2x fixing bolts Ø 18.9, 2x fixing bolts Ø 22.2. Scope of delivery for Clamping Plate 300 lbs: 2x fixing bolts Ø 15,5, 2x fixing bolts Ø 18.9, 2x fixing bolts Ø 22.2, 2x fixing bolts Ø 25.2. Scope of delivery for Clamping Plate 400-600 lbs: 2x fixing bolts Ø 15,5, 2x fixing bolts Ø 18.9, 2x fixing bolts Ø 22.2, 2x fixing bolts Ø 25.2, 2x fixing bolts Ø 28.2. In order to utilize the Clamping Plate in system 16 connection elements like Connecting Bolts (Item No. 000562), Combination Clamping Bolts (Item No. 000520), or Reduction Bushings (Item No. 000546) are required.
Specs and Features:
- Length: (a) 350mm
- Width: (b)Â 250mm
- Ø: (o) -
- MS: (d)Â 25mm
- Weight: 14,00kg
View Related Items
