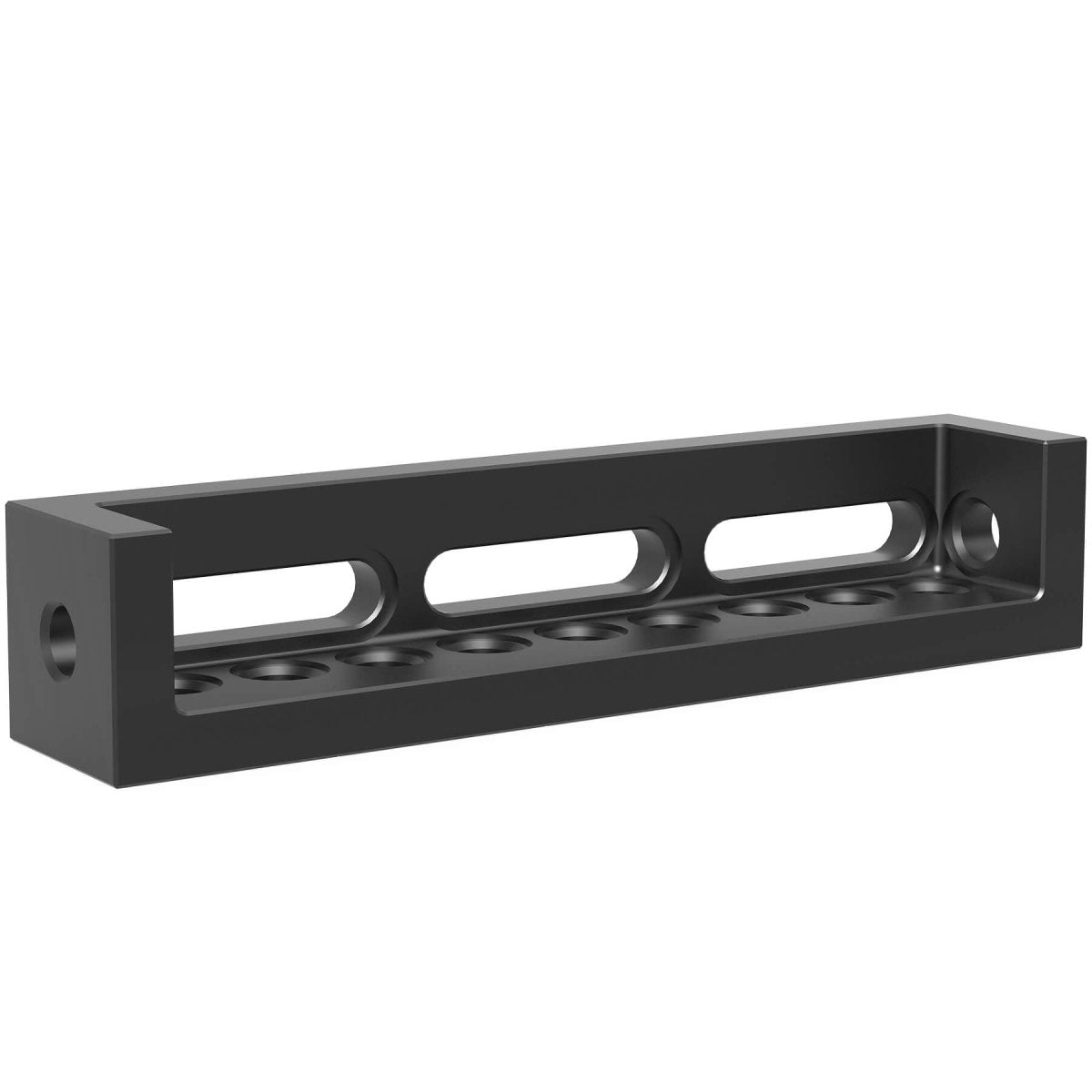

The Siegmund Moveable Square provides a versatile support and connection solution for welding and assembly setups. Acting as both a fixed and adjustable stop, it enables multiple positioning options and serves as a table extension, stop bar, or support element. Manufactured from GGG40 ductile cast iron and nitrided for durability, it ensures strength and precision in demanding shop environments.
- Functions as a four-sided table extension, stop bar, or support block.
- Offers both fixed and adjustable stop and clamping options.
- Delivers added flexibility in restricted or complex setups.
- Built from GGG40 ductile cast iron for lasting durability.
- Nitrided finish resists wear and extends service life.
Key Features:
- Provides multi-functional support and clamping capability.
- Expands fixture versatility with four usable surfaces.
- Ensures strength and repeatable accuracy with cast iron build.
- Offers long-term wear resistance with nitrided finish.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 500mm (19.69" Inches)
- Width: 100mm (3.94" Inches)
- Height: 100mm (3.94" Inches)
- Weight: 34.83 lbs. (15.8 kg.)
- Material: GGG40 Ductile Cast Iron, Plasma Nitrided
Common Uses:

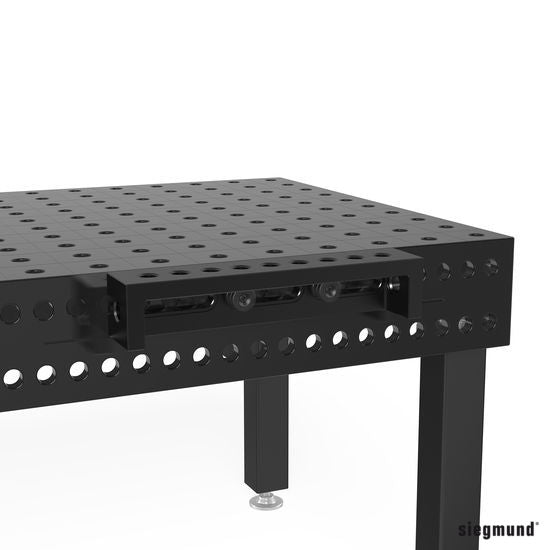

The Siegmund 500x100x100mm Moveable Square is used to provide added support, connection, and positioning options in welding and fixturing setups. Shops rely on it for use as a table extension, adjustable stop bar, or stabilizing element in restricted spaces. Its durability and flexibility allow fabricators to reduce setup time while maintaining precise alignment in complex assemblies.
