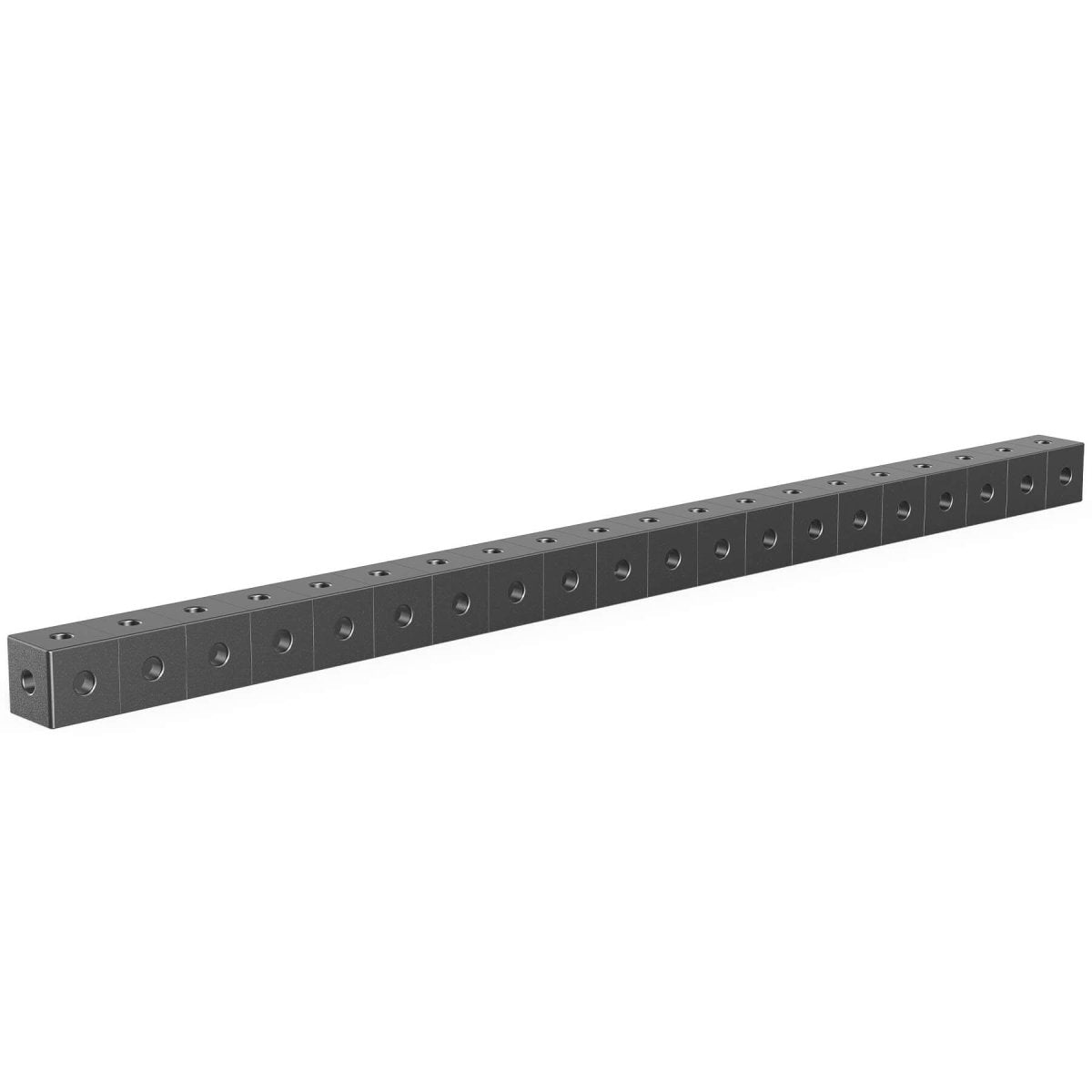

The Siegmund Clamping Rail 2000 offers exceptional strength and reach for large-scale welding and fabrication setups. With precision boreholes spaced at 100mm intervals, it enables consistent alignment and flexible positioning across extended assemblies. Its thick-walled, plasma nitrided construction ensures durability and stability under heavy shop use.
- Provides extended 2000mm length for large assembly setups.
- Features 100mm borehole spacing for repeatable accuracy.
- Delivers rigidity with 25mm wall thickness.
- Nitrided surface improves wear resistance and service life.
- Functions as a versatile connection or support element.
Key Features:
- Extends setup flexibility with long 2000mm clamping reach.
- Ensures repeatable precision with evenly spaced boreholes.
- Delivers heavy-duty strength with thick-wall steel construction.
- Provides long-term reliability with nitrided finish.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 2000mm (78.74" Inches)
- Width: 100mm (3.94" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 209.44 lbs. (95 kg.)
- Surface: Plasma Nitrided
Common Uses:
The Siegmund 2000x100x100mm Clamping Rail is used to stabilize and align large or complex assemblies in welding and fabrication. Its extended length and precision borehole grid provide secure positioning for oversized frames, structures, and multi-component fixtures. Fabricators rely on its rigidity and nitrided durability to reduce setup time and maintain accuracy in demanding production environments.
