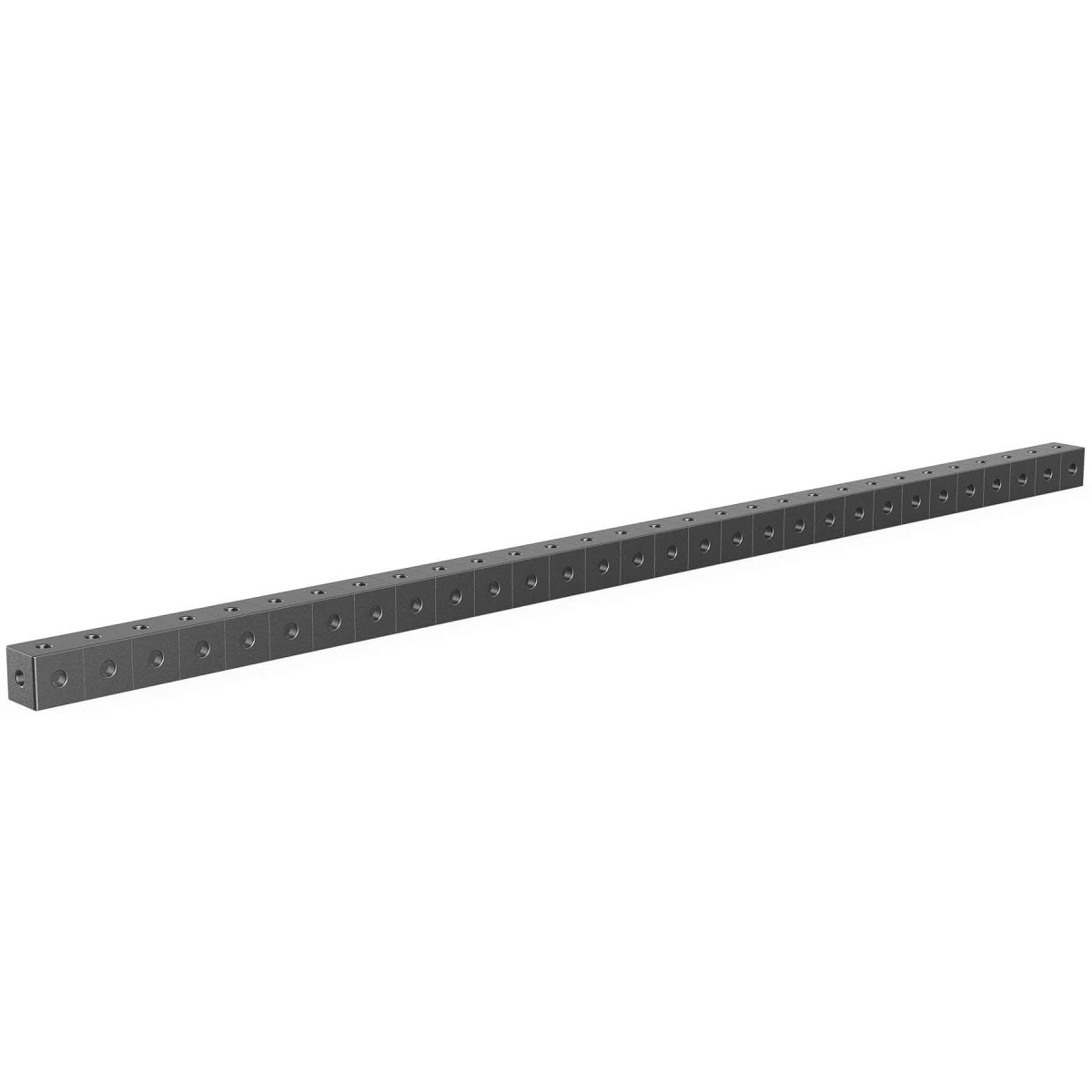

The Siegmund Clamping Rail 3000 is a heavy-duty solution built for stabilizing and aligning large assemblies in demanding welding and fabrication environments. With boreholes spaced at 100mm intervals, this extra-long clamping rail provides consistent accuracy and flexible positioning options across large work surfaces. Its 25mm wall thickness and plasma nitrided finish deliver exceptional durability and stability.
- Provides extended, 3000mm length for oversized fabrication setups.
- Features boreholes at 100mm spacing for precision and repeatability.
- Delivers rigidity with 25mm thick-walled construction.
- Plasma nitrided surface increases wear resistance and service life.
- Functions as a robust connection and clamping element.
Key Features:
- Extends reach for large assemblies with a 3000mm length.
- Ensures repeatable setups with 100mm bore spacing.
- Provides long-lasting performance with nitrided protection.
- Delivers high stability with heavy-duty wall thickness.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 3000mm (118.11" Inches)
- Width: 100mm (3.94" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 310.85 lbs. (141 kg.)
- Surface: Plasma Nitrided
Common Uses:
The Siegmund 3000x100x100mm Clamping Rail is designed for large-scale welding and fixturing projects requiring precise alignment and secure positioning. Its extended length makes it ideal for stabilizing oversized frames, structures, or assemblies while providing flexibility through evenly spaced boreholes. Fabricators depend on its rigidity and nitrided durability to improve efficiency and maintain accuracy in high-demand production environments
