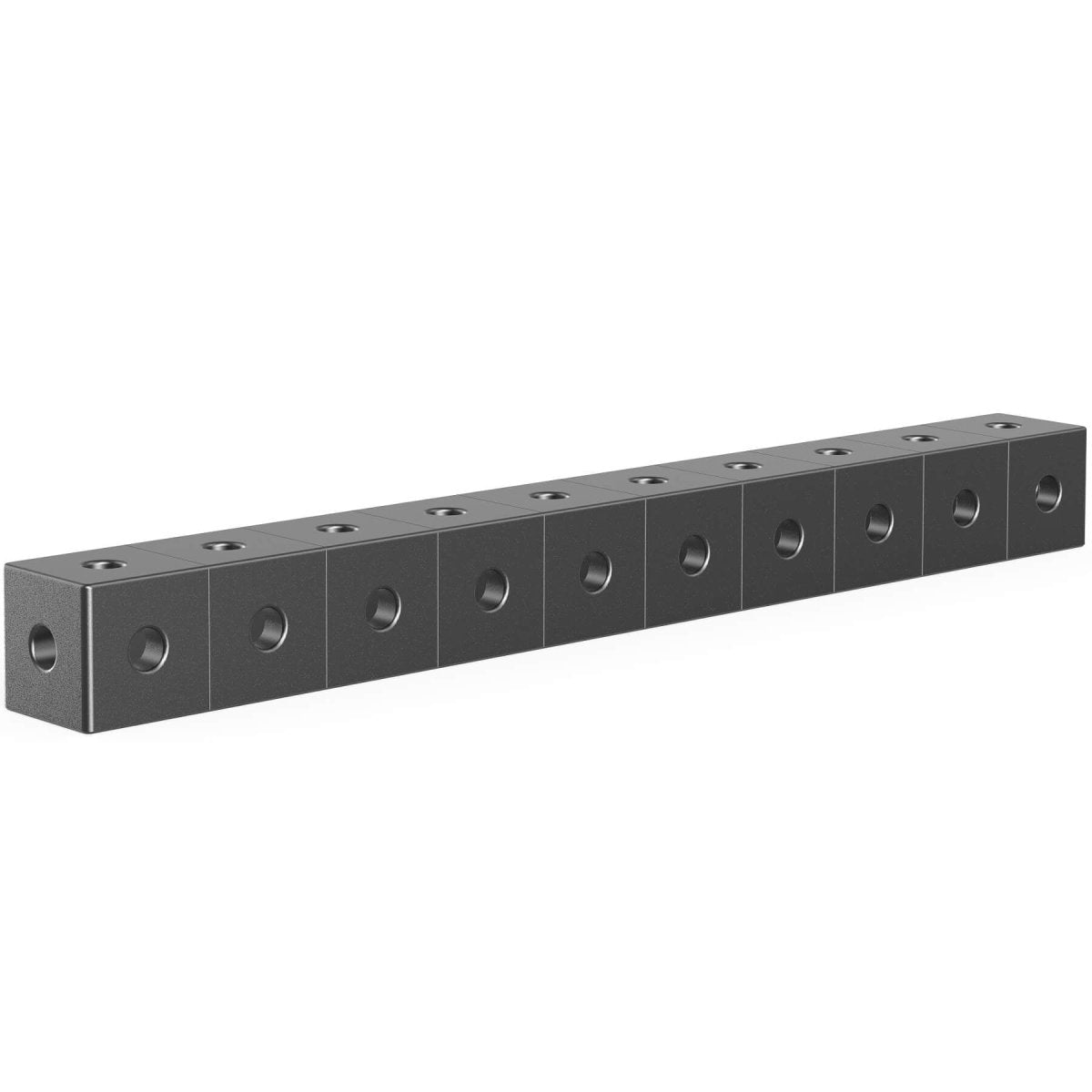

The Siegmund Clamping Rail 1000 is a compact and highly versatile fixturing tool that provides reliable alignment and connection options in complex welding setups. With precision boreholes spaced at 100mm intervals, it enables flexible positioning and repeatable accuracy. Built from heavy-duty steel with a 25mm wall thickness and nitrided for wear resistance, this rail ensures long-lasting performance in demanding shop environments.
- Features precision boreholes at 100mm spacing for repeatable setups.
- Functions as a strong connection element in fixture assemblies.
- Compact form factor supports a wide range of shop applications.
- 25mm thick walls provide rigidity and stability under heavy loads.
- Nitrided surface resists wear, extending service life.
Key Features:
- Delivers precise and repeatable positioning with 100mm bore spacing.
- Provides durability and strength with thick-walled construction.
- Ensures long-term reliability with plasma nitrided surface.
- Supports flexible clamping and alignment in complex assemblies.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 1000mm (39.37" Inches)
- Width: 100mm (3.94" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 105.82 lbs. (48 kg.)
- Surface: Plasma Nitrided
Common Uses:
The Siegmund 1000x100x100mm Clamping Rail is used to align, connect, and stabilize components in complex welding and fabrication assemblies. Its long, compact profile with evenly spaced boreholes makes it a valuable tool for fixture extensions, positioning elements, or acting as a strong structural stop. Shops depend on its rigidity and nitrided durability to save setup time and ensure repeatable accuracy.
