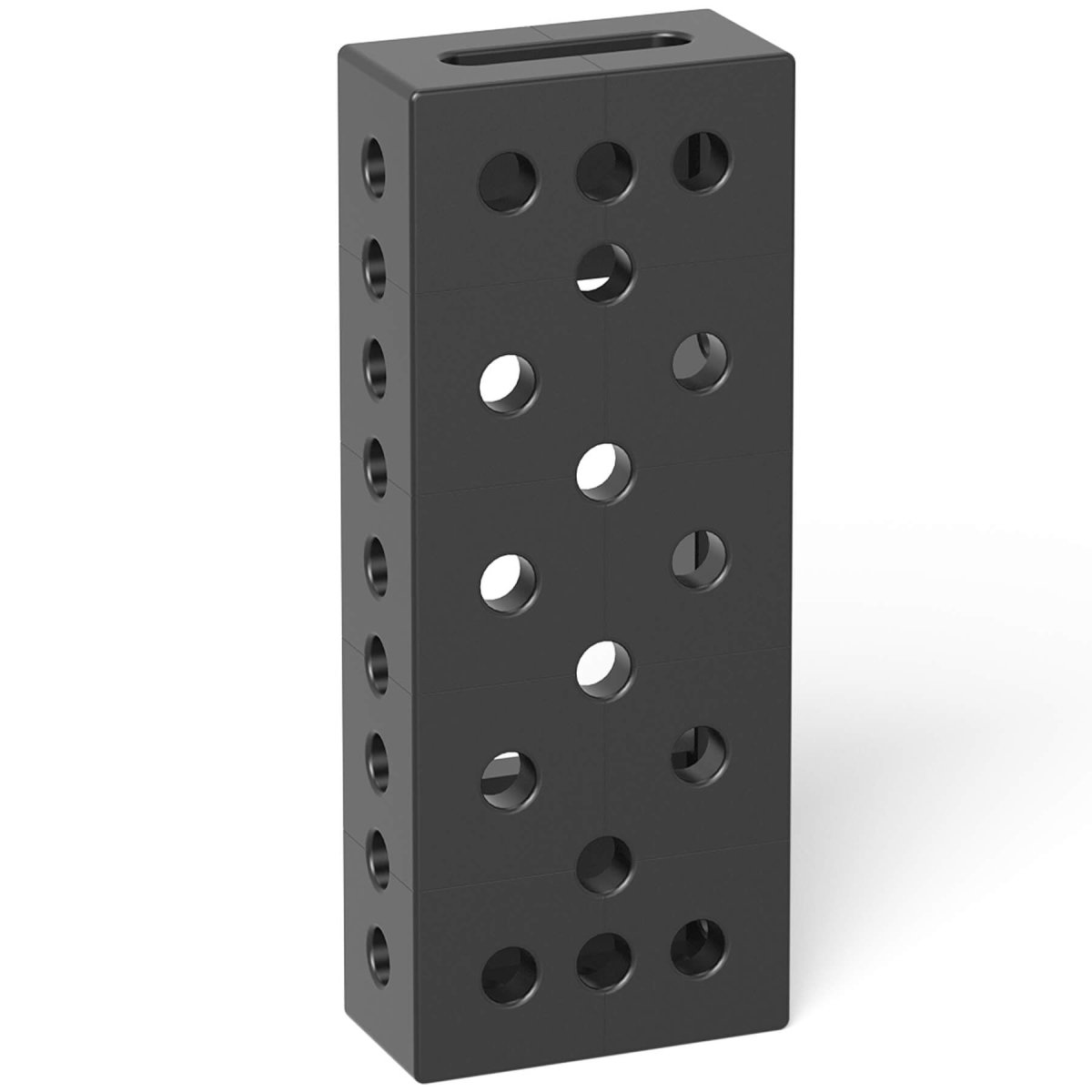

The Siegmund Square U-Shape with elongated hole expands the flexibility of fixturing setups by providing both standard and elongated holes for adjustable positioning. With its robust construction and nitrided surface, it delivers long-lasting durability under heavy shop use. This left-hand version offers additional mounting options and integrates seamlessly into System 28 assemblies.
- Functions like a standard U-Shape Square with added elongated holes.
- Provides flexible positioning for variable clamping and stops.
- Includes mounting holes for attaching table legs when 500mm or larger.
- Constructed from heavy-duty steel with 25mm wall thickness.
- Plasma nitrided surface increases wear resistance and longevity.
Key Features:
- Delivers flexibility with a mix of round and elongated holes.
- Supports stable positioning with thick-walled construction.
- Provides durability and wear protection with nitrided finish.
- Enables multiple clamping and extension options.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 500mm (19.69" Inches)
- Width: 200mm (7.87" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 88.18 lbs. (40 kg.)
- Surface: Plasma Nitrided
Common Uses:

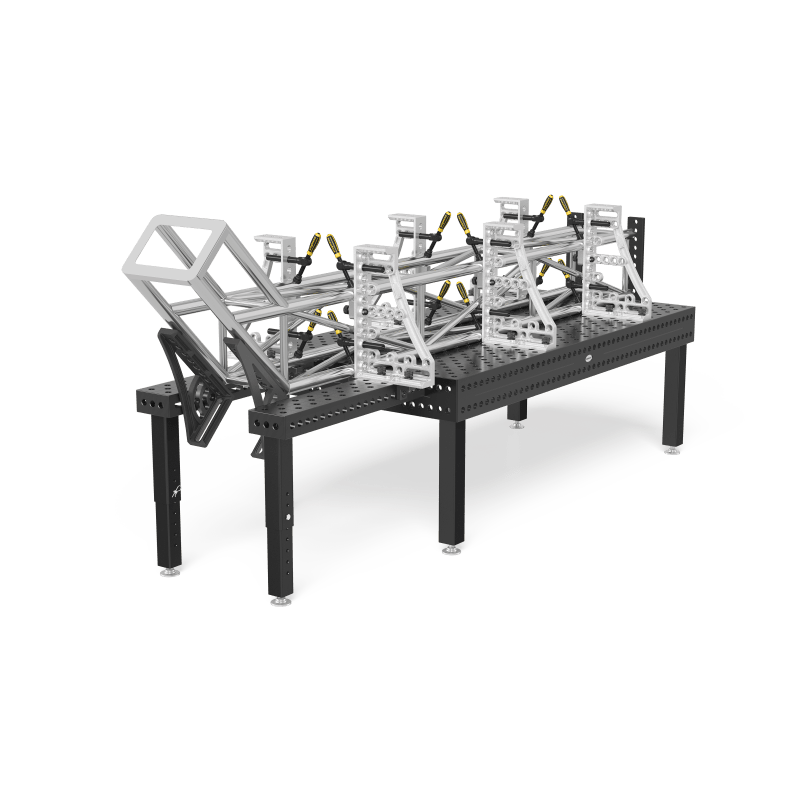

The Siegmund 500x200x100mm Square U-Shape with Elongated Hole Left is used for fixturing tasks that require both precision and flexibility. Fabricators use it as a structural support, table extension, or variable stop element in complex assemblies. Its elongated holes provide added adjustability, making it ideal for shops that need quick reconfiguration without sacrificing accuracy.
