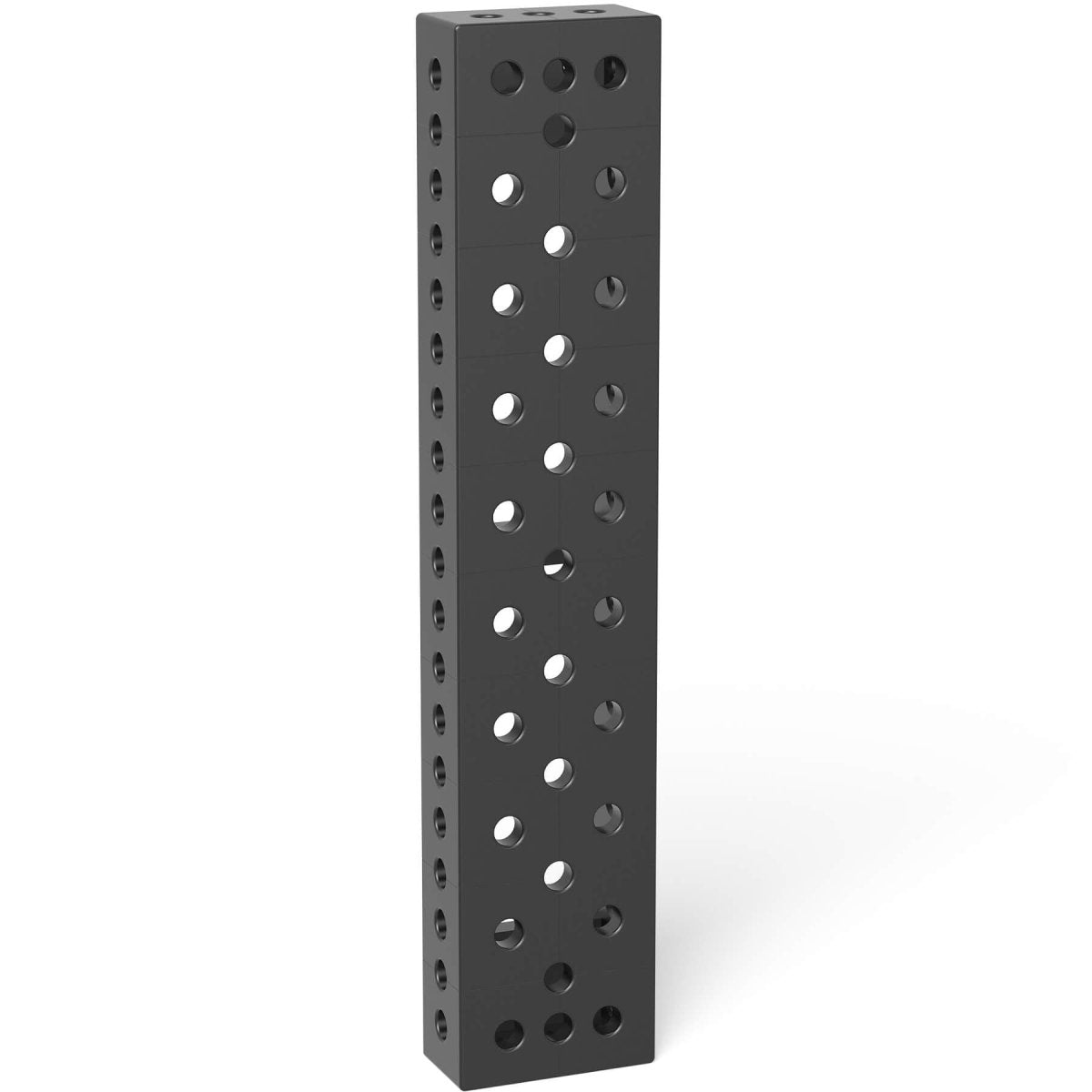

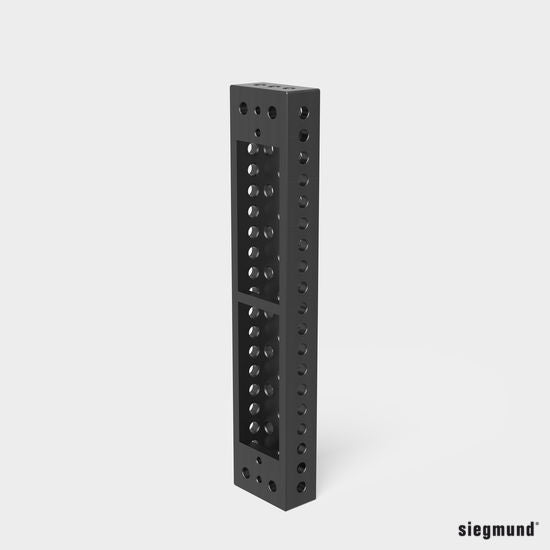

The Siegmund 1,000x200x100mm Square U-Shape is a heavy-duty extension designed for Siegmund System 28 Metric Series welding tables. With its long 1,000mm reach and robust plasma nitrided surface, it provides the stability and versatility needed for large-scale fabrication setups.
- Built to connect or extend Siegmund tables for oversized applications.
- Diagonal hole pattern supports flexible clamping and modular setups.
- 25mm (0.98" Inches) wall thickness ensures high strength and durability.
- Grid lines with 100mm (3.94" Inches) spacing allow fast, accurate positioning.
- Mounting holes on the back enable table leg attachment for added support.
- Plasma nitrided finish delivers long-lasting resistance to wear and welding spatter.
Key Features:
- Provides secure support for vertical and oversized fixtures.
- Increases setup efficiency with integrated orientation grid.
- Ensures maximum durability with hardened plasma nitrided finish.
- Works seamlessly with Siegmund System 28 Metric Series accessories.
- Handles heavy-duty fabrication demands with 75 kg (165.35 lbs.) weight capacity.
Specifications:
- Series: Siegmund System 28 Metric Series
- Item No.: 2-280320.P
- Length: 1,000mm (39.37" Inches)
- Width: 200mm (7.87" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 165.35 lbs. (75 kg.)
- Finish: Plasma Nitrided
Common Uses:

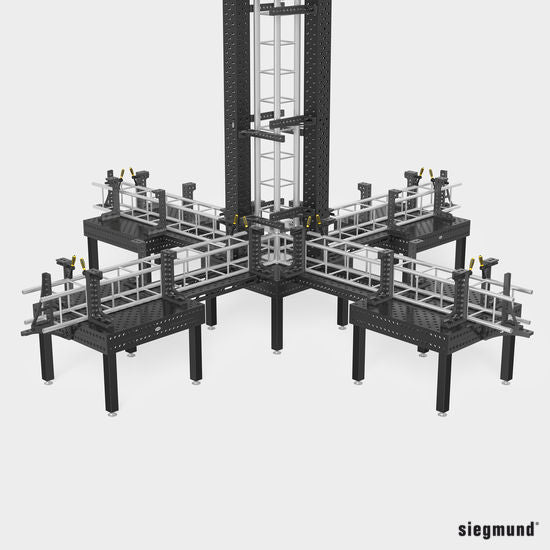

This Square U-Shape is essential for extending Siegmund System 28 tables beyond standard dimensions and securing large or vertical workpieces. Its long reach and reinforced construction deliver stability for heavy welds, while the mounting holes allow additional leg support for safe handling of oversized assemblies.
