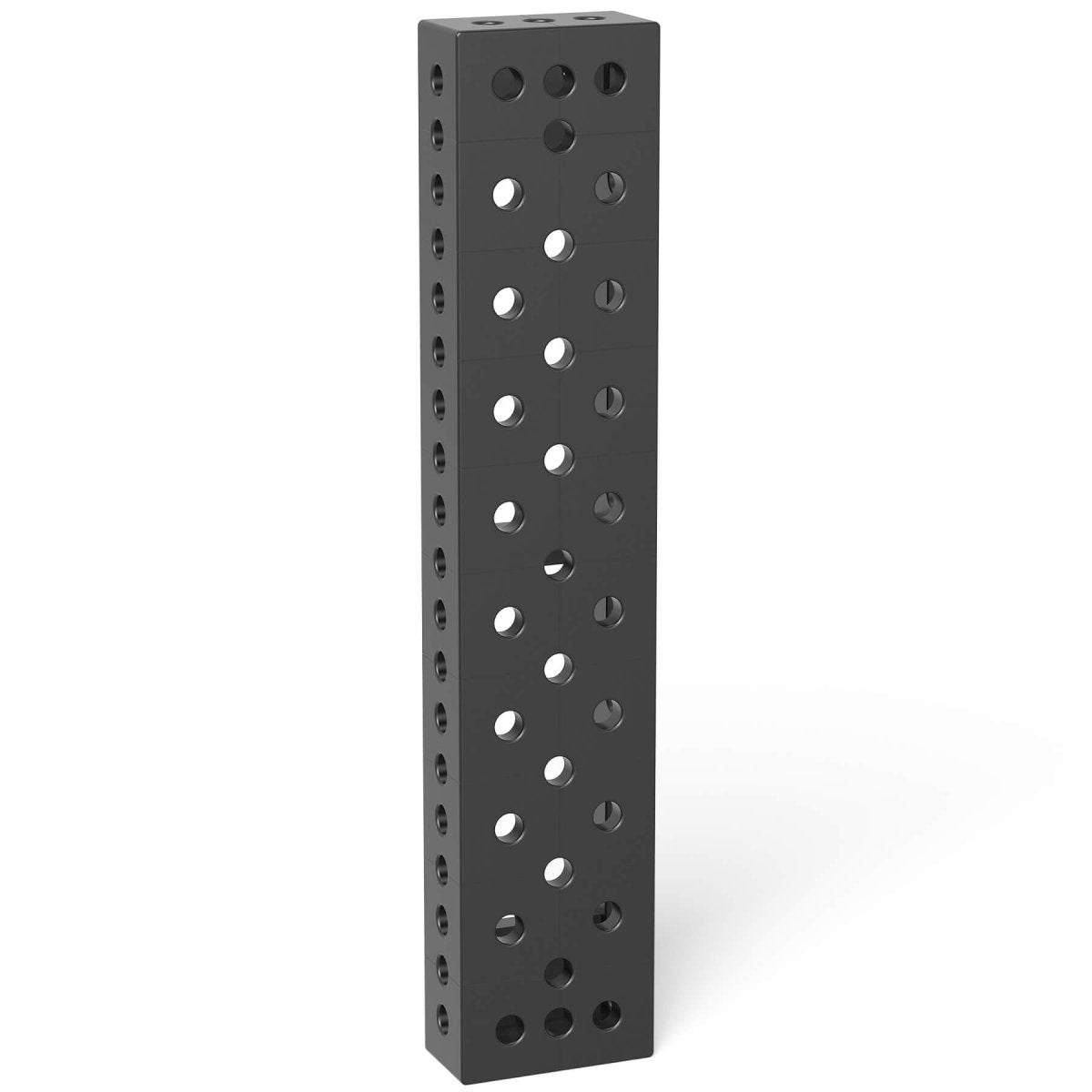

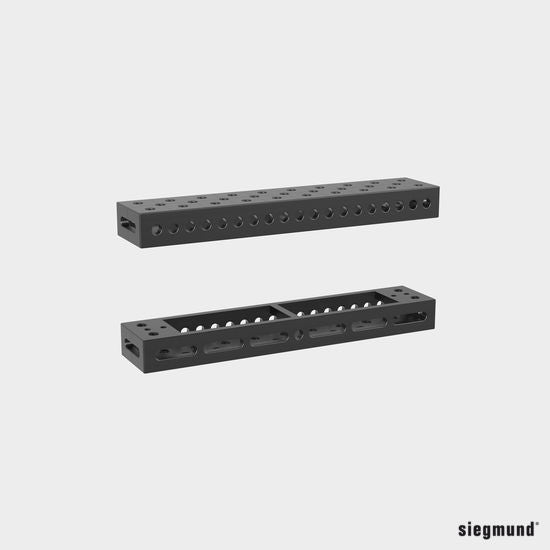

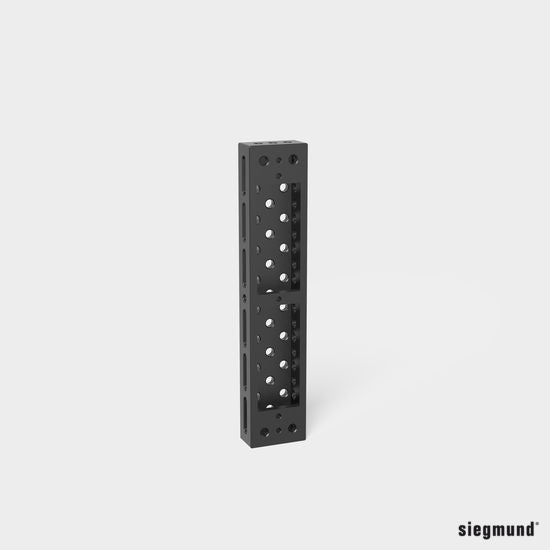

The Siegmund Square U-Shape with elongated hole provides maximum flexibility for fixturing setups by combining standard boreholes with elongated slots for variable positioning. With a 1000mm length and heavy-duty construction, it offers strength and precision for large assemblies. Plasma nitriding enhances durability and wear resistance, ensuring long-lasting performance in demanding fabrication environments.
- Provides extended 1000mm length for larger fixtures and assemblies.
- Features both round and elongated holes for flexible setup options.
- Includes mounting holes for attaching table legs on 500mm and longer sizes.
- Constructed with 25mm thick steel walls for stability and strength.
- Plasma nitrided finish improves wear resistance and service life.
Key Features:
- Delivers flexible fixturing with combined boreholes and elongated slots.
- Provides high stability with thick-walled steel construction.
- Ensures long-term reliability with nitrided finish.

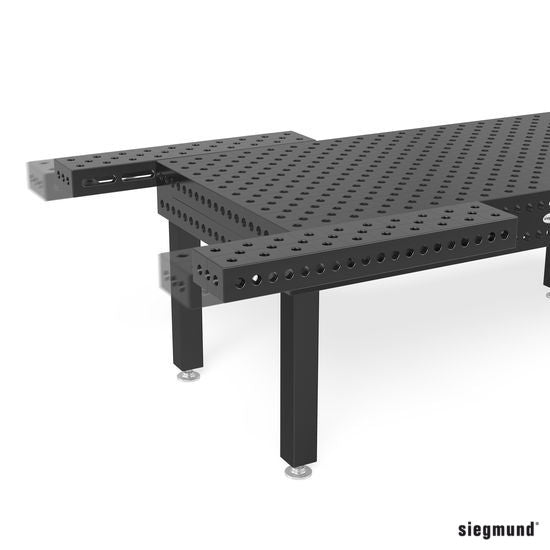

- Supports use as a structural element, extension, or adjustable stop.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 1000mm (39.37" Inches)
- Width: 200mm (7.87" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 158.73 lbs. (72 kg.)
- Surface: Plasma Nitrided
Common Uses:

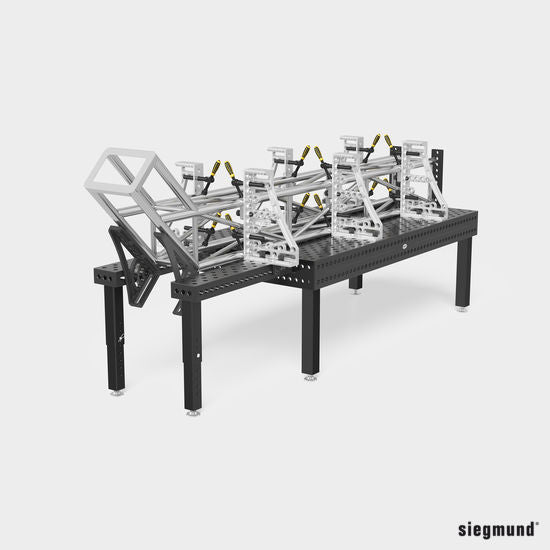

The Siegmund 1000x200x100mm Square U-Shape with Elongated Hole Right is used as a support element, extension block, or adjustable stop in welding and assembly setups. Its elongated slots allow for precise adjustment and flexible configurations, making it ideal for large-scale projects. Shops depend on its durability and nitrided surface to maintain accuracy and repeatability under heavy use.
