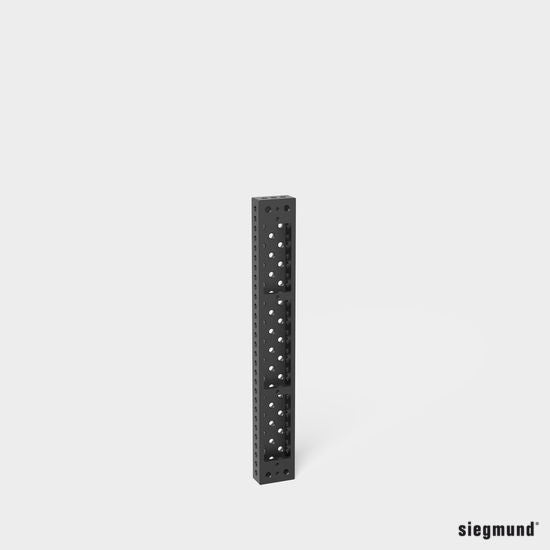

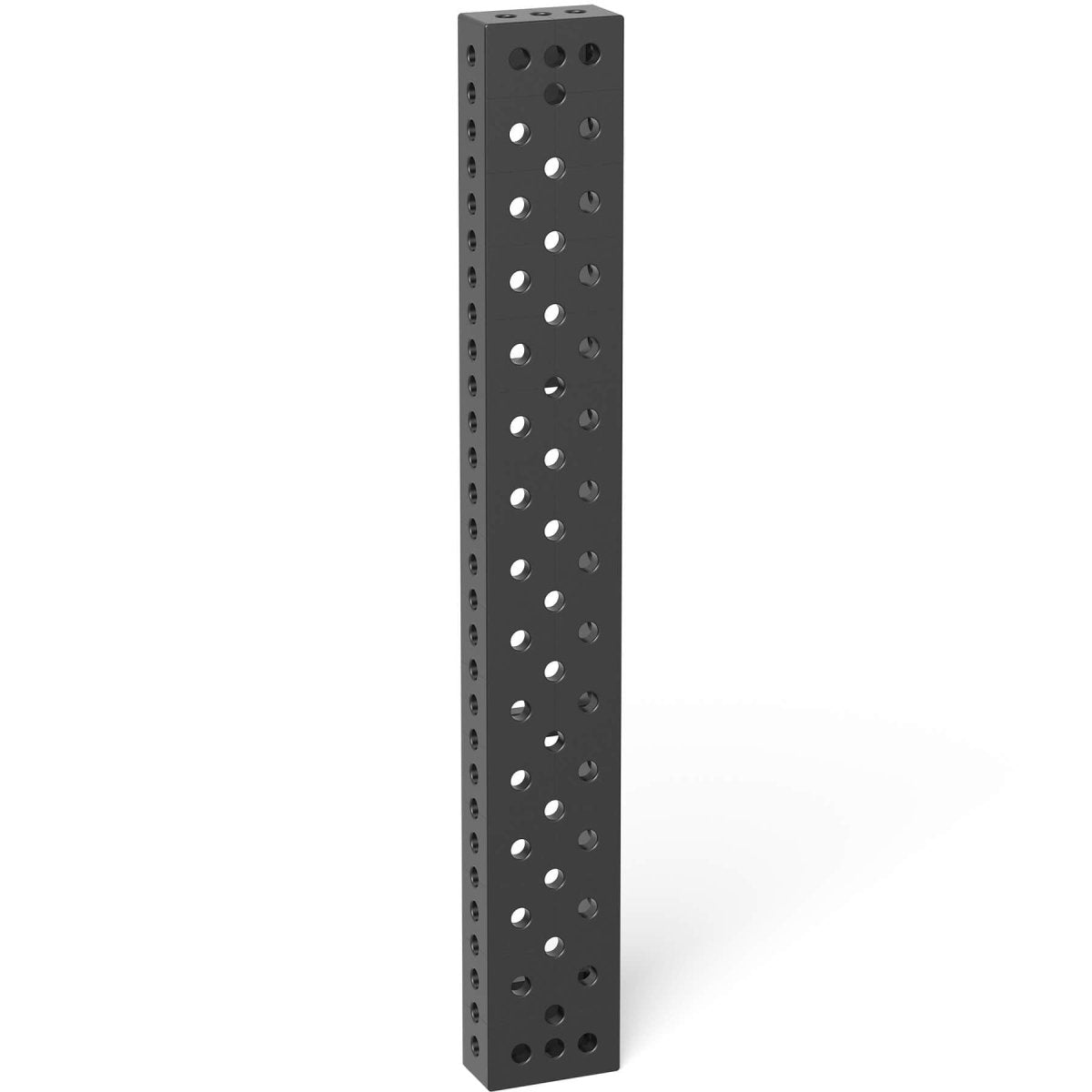

The Siegmund 1500x200x100mm Square U-Shape is the largest format extension in the Siegmund System 28 Metric Series. With its extended length and reinforced plasma nitrided surface, it provides unmatched stability and reach for large-scale assemblies, vertical setups, and multi-table connections.
- Built for oversized setups that demand maximum rigidity.
- Diagonal hole pattern supports wide-ranging clamping options.
- 25mm (0.98" Inches) wall thickness delivers strength and longevity.
- Grid lines with 100mm (3.94" Inches) spacing speed up positioning.
- Rear mounting holes allow secure table leg attachment for additional support.
- Plasma nitriding treatment resists corrosion, wear, and welding spatter.
Key Features:
- Extends Siegmund System 28 tables to handle oversized assemblies.
- Provides precise alignment and repeatability with integrated grid system.
- Withstands heavy-duty use with hardened plasma nitrided construction.
- Supports vertical and long-span setups with secure leg attachments.
- Delivers stability for complex multi-table fixturing applications.
Specifications:
- Series: Siegmund System 28 Metric Series
- Item No.: 2-280330.P
- Length: 1500mm (59.06" Inches)
- Width: 200mm (7.87" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 238.10 lbs. (108 kg.)
- Finish: Plasma Nitrided
Common Uses:

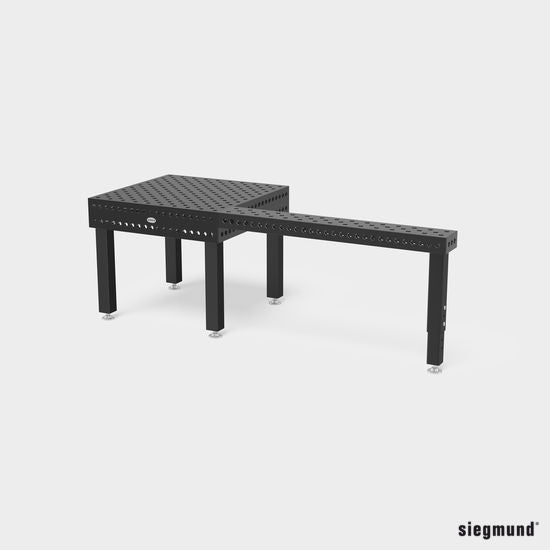

This Square U-Shape enables fabrication shops to securely extend Siegmund System 28 tables for large-scale welds, vertical positioning, and high-strength modular connections.From a length of 500mm, all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P). Its long 1500mm format, combined with diagonal clamping holes and optional leg support, makes it the go-to solution for handling oversized projects that demand absolute stability.
