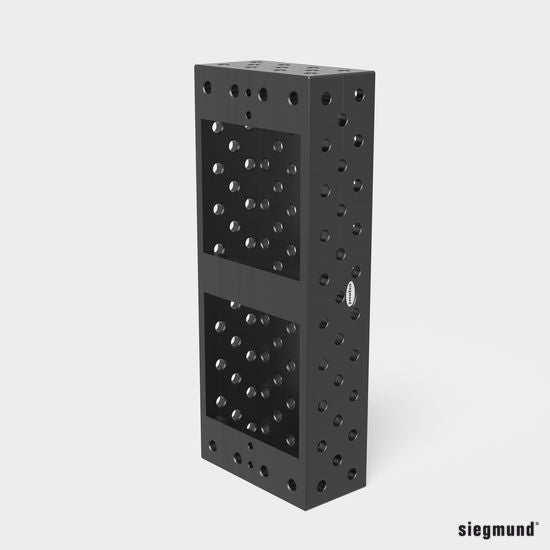

The Siegmund 2-280370.2.P 1,000x400x200mm Square U-Shape delivers a strong and precise solution for extending Siegmund System 28 Metric Series welding tables or creating vertical fixtures. Its long 1,000mm length provides stable support for larger assemblies, while the plasma nitrided finish ensures resistance against wear and weld spatter. This component allows shops to maximize table versatility with reliable, heavy-duty performance.
- Extended 1,000mm length provides stability for large work setups.
- Plasma nitrided surface delivers lasting protection and wear resistance.
- Five-sided boreholes and diagonal layout expand clamping options.
- 100mm grid spacing supports fast, accurate positioning.
- 25mm material thickness ensures rigidity under load.
- Weighs 414.5 lbs. (188 kg.) for heavy-duty shop use.
Key Features:
- Long 1,000mm structure enables secure table extension and connection.
- Durable plasma nitrided finish resists corrosion and spatter.
- Compatible with Siegmund System 28 Metric Series welding tables.
- Multiple clamping and connection options from five-sided boreholes.
- Heavy-duty construction ensures precision alignment under stress.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 1,000mm (39.37" Inches)
- Width: 400mm (15.75" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 414.5 lbs. (188 kg.)
Common Uses:
The 1,000x400x200mm Square U-Shape is used to extend Siegmund System 28 Metric Series welding tables or connect multiple tables in large-scale fabrication setups. It provides vertical fixture support and stable alignment for oversized assemblies, enabling precise and repeatable positioning under heavy load conditions. Its five-sided boreholes and grid system expand clamping versatility, making it a critical component for complex welding and fabrication projects.
