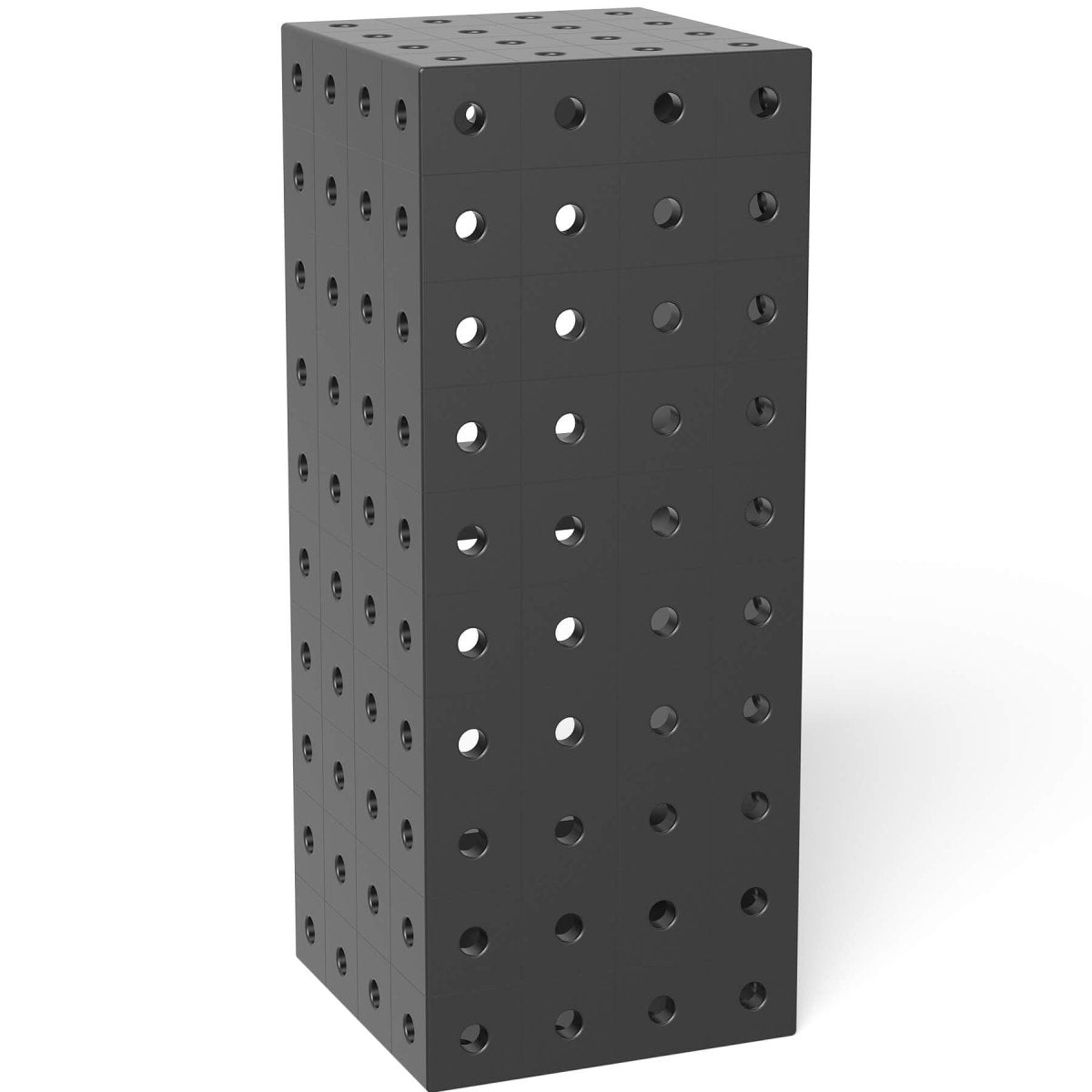

The Siegmund 2-280370.3.P: 1,000x400x400mm Square U-Shape Riser Block provides high stability for heavy assemblies and large structures. Built from 25mm (0.98" Inches) steel with a plasma-nitrided finish, it withstands wear and ensures long service life in demanding shop use.
- It extends welding tables for large-scale setups and structural builds.
- Five-sided boreholes and optional diagonal holes increase clamping options.
- Precision 100mm (3.94" Inches) grid ensures fast orientation and alignment.
- Connector bolt mounting provides rigid, secure attachment.
- Back-side holes enable attachment of table legs for extensions over 500mm (19.69" Inches).
Key Features:
- Provides reliable support and extension for Siegmund System 28 Metric Series.
- Plasma nitriding enhances surface durability and resistance to wear.
- Offers versatile clamping options with five-sided boreholes and diagonal grid.
- Large-scale size handles heavy workpieces and structural assemblies.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 1,000mm (39.37" Inches)
- Width: 400mm (15.75" Inches)
- Height: 400mm (15.75" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 650.36 lbs. (295 kg.)
Common Uses:
This Square U-Shape Riser Block delivers rigid support for large workpieces, table extensions, and vertical structures. Fabricators depend on its hardened surface, precise grid, and versatile clamping options to secure complex assemblies with accuracy and speed.
