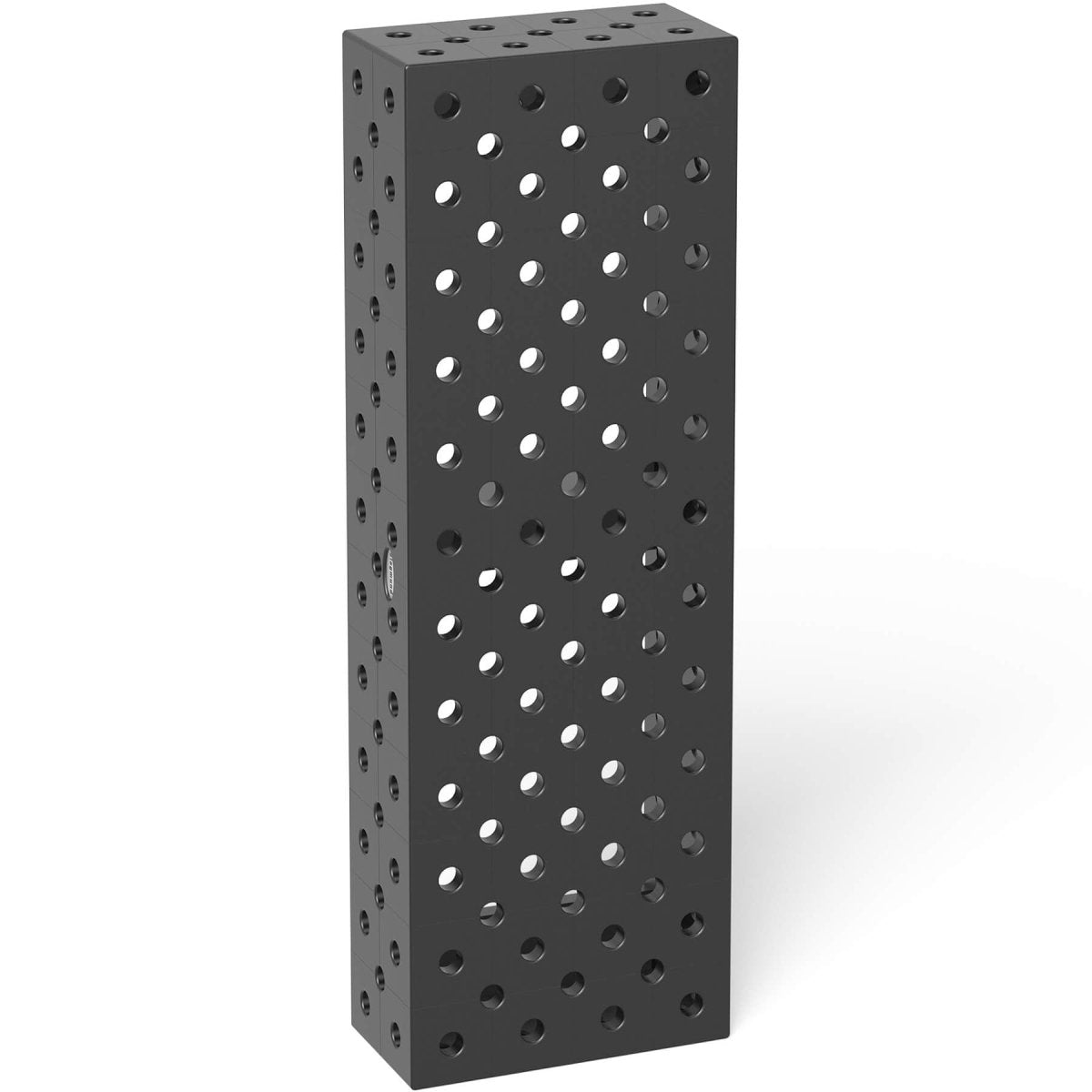

The Siegmund 2-280374.2.P: 1,200x400x200mm Square U-Shape provides maximum reach and stability for extending Siegmund System 28 Metric Series welding tables and building vertical fixtures. Its extended 1,200mm length supports oversized assemblies with precision, while the plasma nitrided finish safeguards against wear, spatter, and corrosion. This heavy-duty riser block delivers flexibility and strength for demanding fabrication setups.
- 1,200mm length ensures rigidity for extra-large welding projects.
- Plasma nitrided finish provides long-term durability and wear protection.
- Five-sided boreholes and diagonal options expand clamping versatility.
- 100mm grid spacing allows fast, accurate, and repeatable positioning.
- 25mm material thickness resists flex and distortion under heavy load.
- Weight of 476.2 lbs. (216 kg.) provides stability in shop use.
Key Features:
- Extended 1,200mm length for supporting large-scale assemblies.
- Durable plasma nitrided surface protects against weld spatter and corrosion.
- Compatible with Siegmund System 28 Metric Series welding tables.
- Five-sided boreholes offer diverse clamping and connection setups.
- Heavy-duty build ensures precision alignment for industrial fabrication.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 1,200mm (47.24" Inches)
- Width: 400mm (15.75" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 476.2 lbs. (216 kg.)
Common Uses:
The 1,200x400x200mm Square U-Shape is used to extend Siegmund System 28 Metric Series welding tables for oversized or complex fabrication setups. It provides secure vertical fixturing and table connection with maximum rigidity. Fabricators rely on its five-sided boreholes, grid system, and heavy-duty construction to achieve accurate, repeatable positioning on large workpieces.
