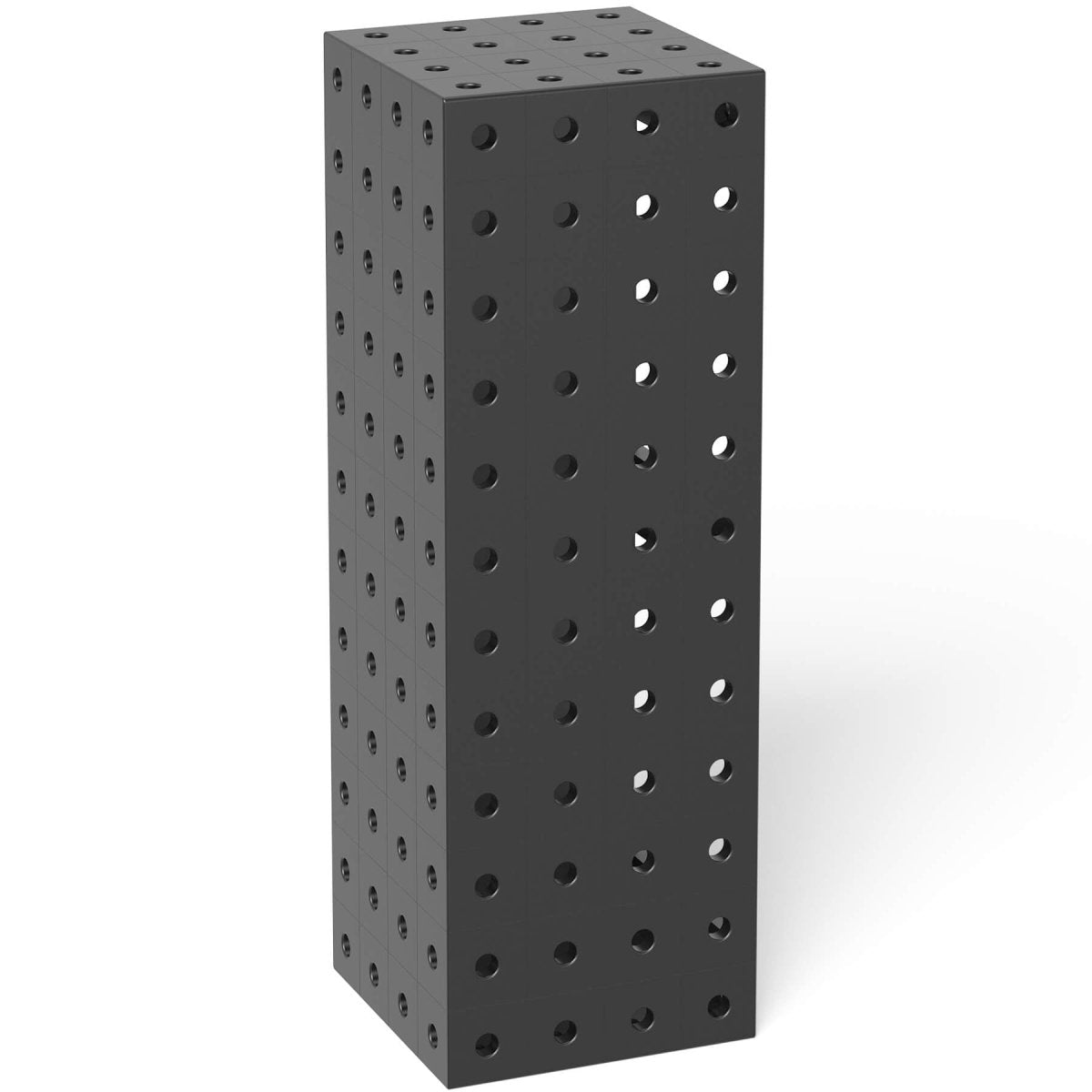

The Siegmund 2-280374.3.P: 1,200x400x400mm Square U-Shape Riser Block provides secure extension and heavy-duty support for large assemblies. With a 25mm (0.98" Inches) plasma-nitrided surface, it delivers exceptional durability, rigidity, and wear resistance under intensive shop use.
- It extends welding tables for heavy components and vertical builds.
- Five-sided boreholes with optional diagonal holes expand fixture setups.
- Precision 100mm (3.94" Inches) grid pattern speeds alignment.
- Connector bolt mounting ensures solid attachment and stability.
- Back-side holes allow the addition of table legs for extensions over 500mm (19.69" Inches).
Key Features:
- Provides reliable stability for Siegmund System 28 Metric Series setups.
- Plasma nitriding increases surface hardness and resistance to wear.
- Versatile borehole and grid system enhances clamping and orientation.
- Extended 1,200mm length supports large assemblies with precision.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 1,200mm (47.24" Inches)
- Width: 400mm (15.75" Inches)
- Height: 400mm (15.75" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 749.57 lbs. (340 kg.)
Common Uses:
This Square U-Shape Riser Block delivers heavy-duty support for large workpieces and superstructures in welding and fabrication. Shops use it to extend tables, build vertical setups, and secure oversized assemblies with speed, strength, and repeatable accuracy.
