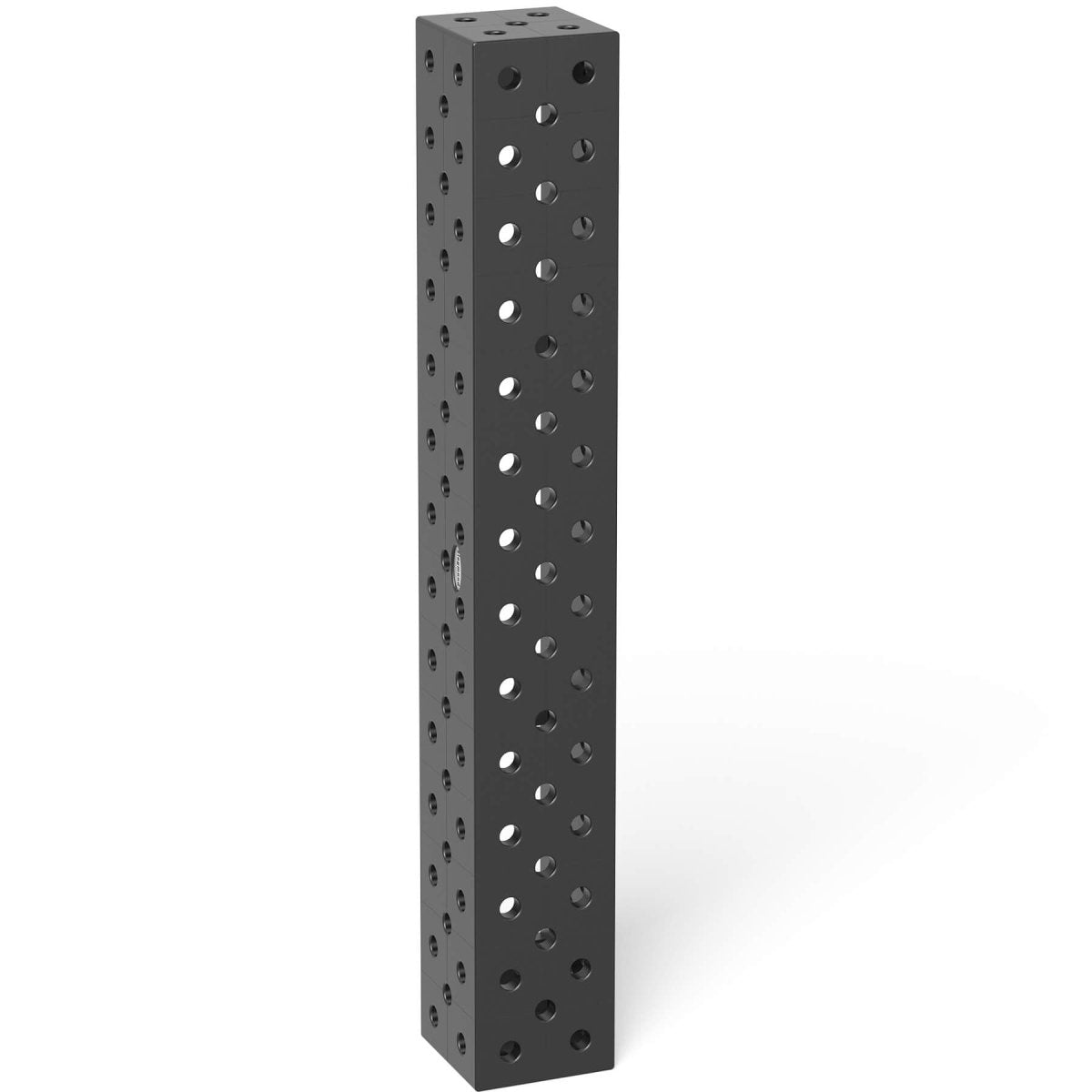

The Siegmund 2-280378.P: 1,400x200x200mm Square U-Shape Riser Block provides unmatched reach and stability for the most demanding welding and fixturing setups. Its plasma nitrided surface ensures maximum durability against wear and spatter, while its heavy construction guarantees rigidity under extreme loads.
- Measures 1,400x200x200mm (55.12"x7.87"x7.87" Inches) for the largest extension and vertical applications.
- Plasma nitrided finish protects against wear, weld spatter, and corrosion.
- 25mm (0.98" Inches) wall thickness delivers high structural rigidity.
- 100mm (3.94" Inches) grid spacing ensures precision and repeatable alignment.
- Five-sided borehole system with optional diagonal holes enables versatile clamping.
- Includes mounting holes on the back for attaching table legs from 500mm (19.69" Inches) length upward.
Key Features:
- Delivers maximum reach and strength for oversized welding setups.
- Hardened nitrided surface extends service life in heavy shop use.
- Back-mounted leg holes provide secure long-span extensions.
- Maintains precise orientation with 100mm (3.94" Inches) grid lines.
- Integrates fully with Siegmund System 28 Metric Series tables and accessories.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 1,400mm (55.12" Inches)
- Width: 200mm (7.87" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 357.1 lbs. (162 kg.)
Common Uses:
This riser block provides secure long-span extensions and vertical stability for large-scale fabrication projects. It enables precise alignment and reliable clamping for oversized workpieces, ensuring rigidity and repeatability in the most demanding welding environments. Its nitrided finish and mounting compatibility make it an essential component for heavy-duty shop layouts.
