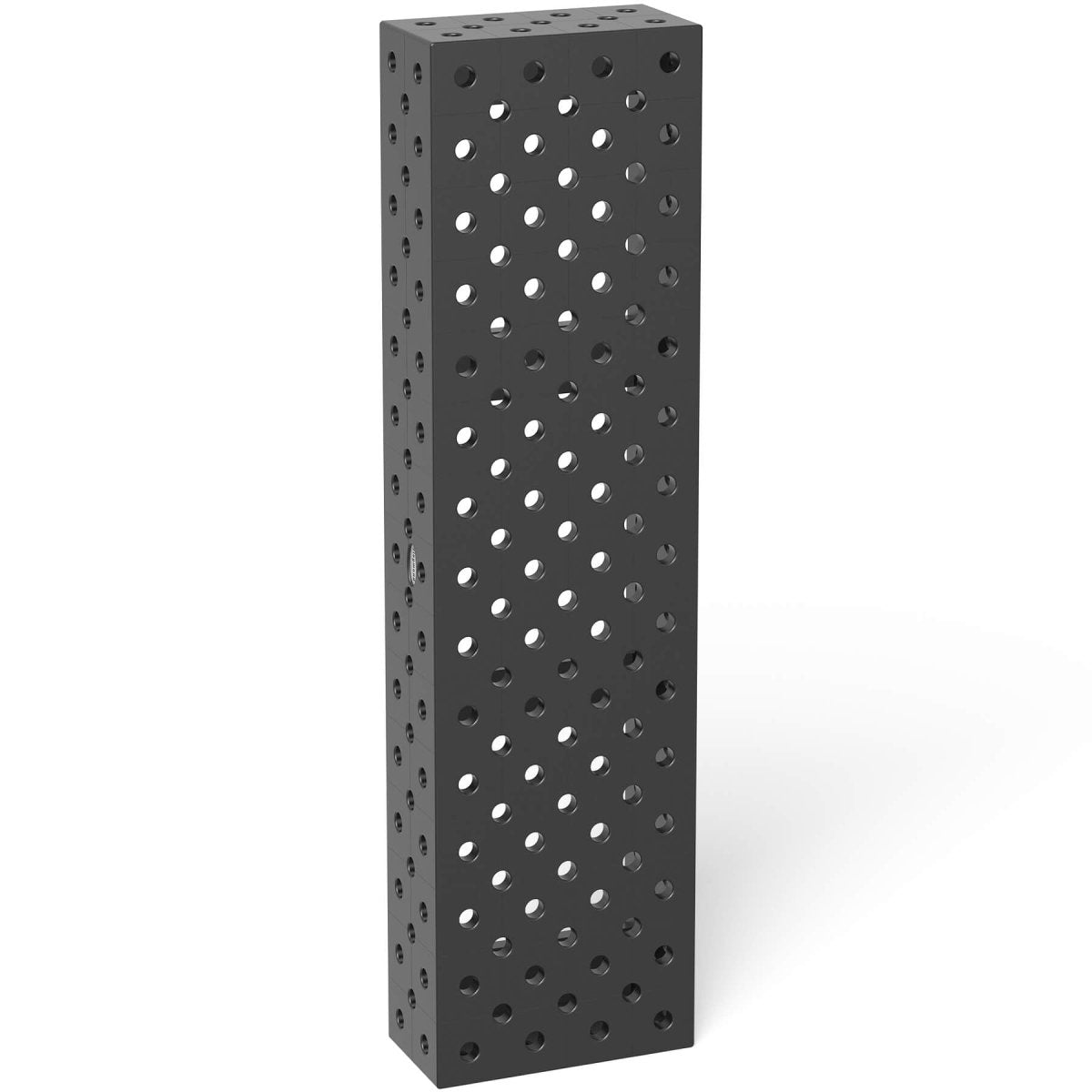

The Siegmund 2-280380.2.P: 1,500x400x200mm Square U-Shape Riser Block provides maximum stability and versatility for large welding and fixturing setups. Its plasma nitrided surface ensures long-lasting durability, while its heavy-duty construction delivers precision and rigidity under extreme loads.
- Measures 1,500x400x200mm (59.06"x15.75"x7.87" Inches) for large-scale extensions and vertical positioning.
- Plasma nitrided surface resists weld spatter, wear, and corrosion for extended service life.
- 25mm (0.98" Inches) wall thickness ensures load-bearing strength and rigidity.
- Five-sided borehole layout with optional diagonal holes enables versatile clamping.
- 100mm (3.94" Inches) grid spacing supports accurate, repeatable alignment.
- Includes mounting holes for attaching table legs on extensions from 500mm (19.69" Inches) upward.
Key Features:
- Delivers extreme reach and structural support for large welding setups.
- Hardened plasma nitrided finish provides maximum durability.
- Back-mounted holes allow secure integration with table legs.
- Five-sided boreholes expand clamping versatility with 100mm (3.94" Inches) spacing.
- Fully compatible with Siegmund System 28 Metric Series welding tables.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 1,500mm (59.06" Inches)
- Width: 400mm (15.75" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 573.2 lbs. (260 kg.)
Common Uses:

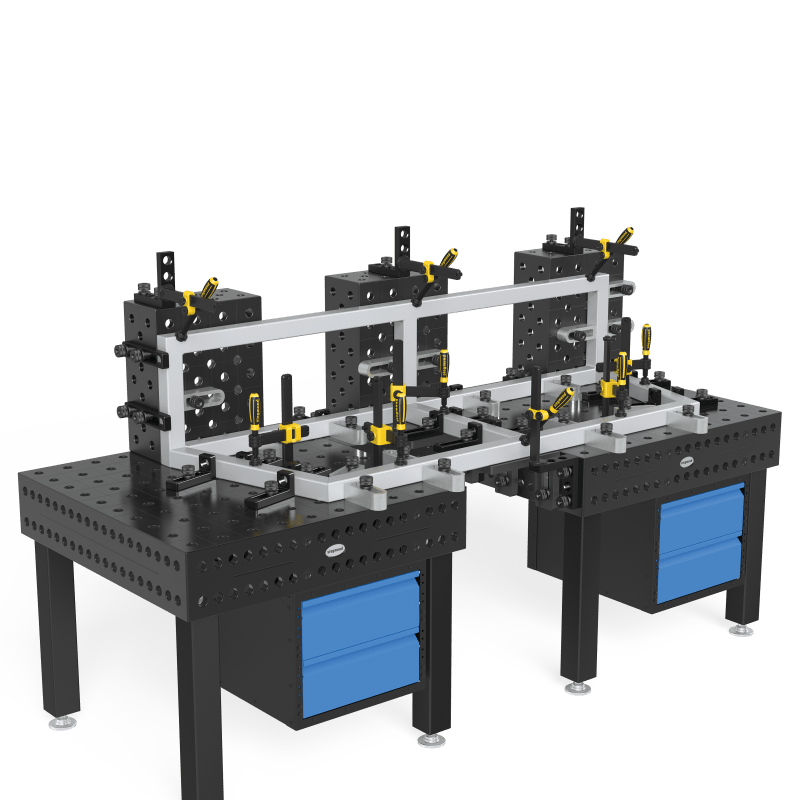

This riser block provides unmatched reach and stability for oversized workpieces in large fabrication projects. It enables precise alignment, secure clamping, and vertical positioning in extended welding setups. With its nitrided finish and leg-mount compatibility, it is ideal for demanding shop environments requiring maximum rigidity and repeatable accuracy.
