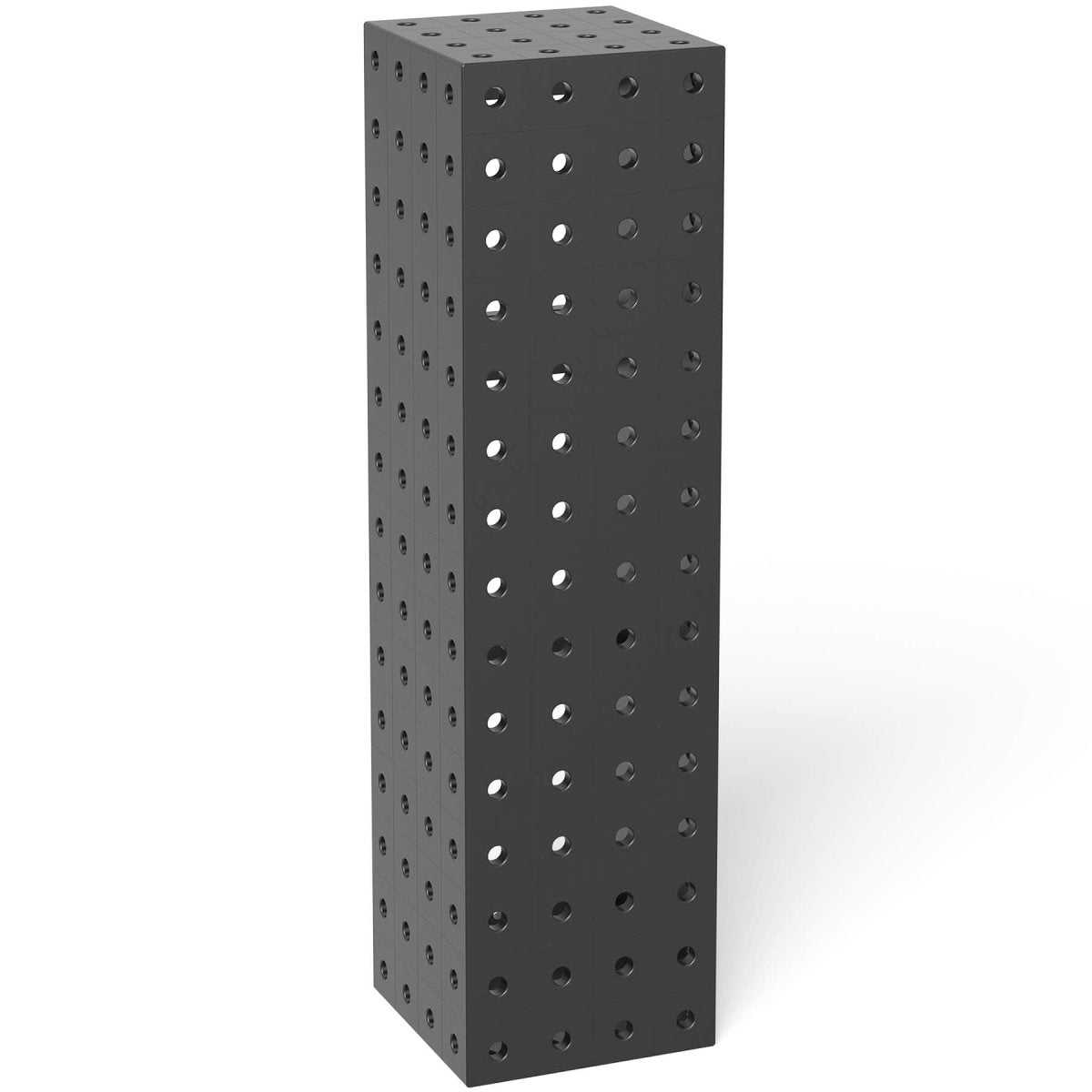

The Siegmund 2-280380.3.P: 1,500x400x400mm Square U-Shape Riser Block delivers heavy-duty stability for large assemblies and structural work. Built from 25mm (0.98" Inches) plasma-nitrided steel, it offers long-lasting surface hardness and rigidity for demanding shop use.
- It supports welding table extensions for oversized components and vertical builds.
- Five-sided boreholes and optional diagonal holes expand clamping versatility.
- Precision 100mm (3.94" Inches) grid ensures fast orientation and accurate setup.
- Connector bolt attachment provides reliable, rigid mounting.
- Back-side mounting holes allow table leg installation for extensions beyond 500mm (19.69" Inches).
Key Features:
- Provides secure and precise support for Siegmund System 28 Metric Series.
- Plasma nitriding improves surface durability and wear resistance.
- Expanded borehole and diagonal grid options increase fixture flexibility.
- Extended 1,500mm format delivers stable support for large structural assemblies.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 1,500mm (59.06" Inches)
- Width: 400mm (15.75" Inches)
- Height: 400mm (15.75" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 912.71 lbs. (414 kg.)
Common Uses:
This Square U-Shape Riser Block enables secure support of large-scale welding assemblies, table extensions, and vertical structures. Fabricators depend on its precision grid, hardened surface, and versatile clamping options to streamline fixturing of oversized workpieces with accuracy and repeatable stability.
