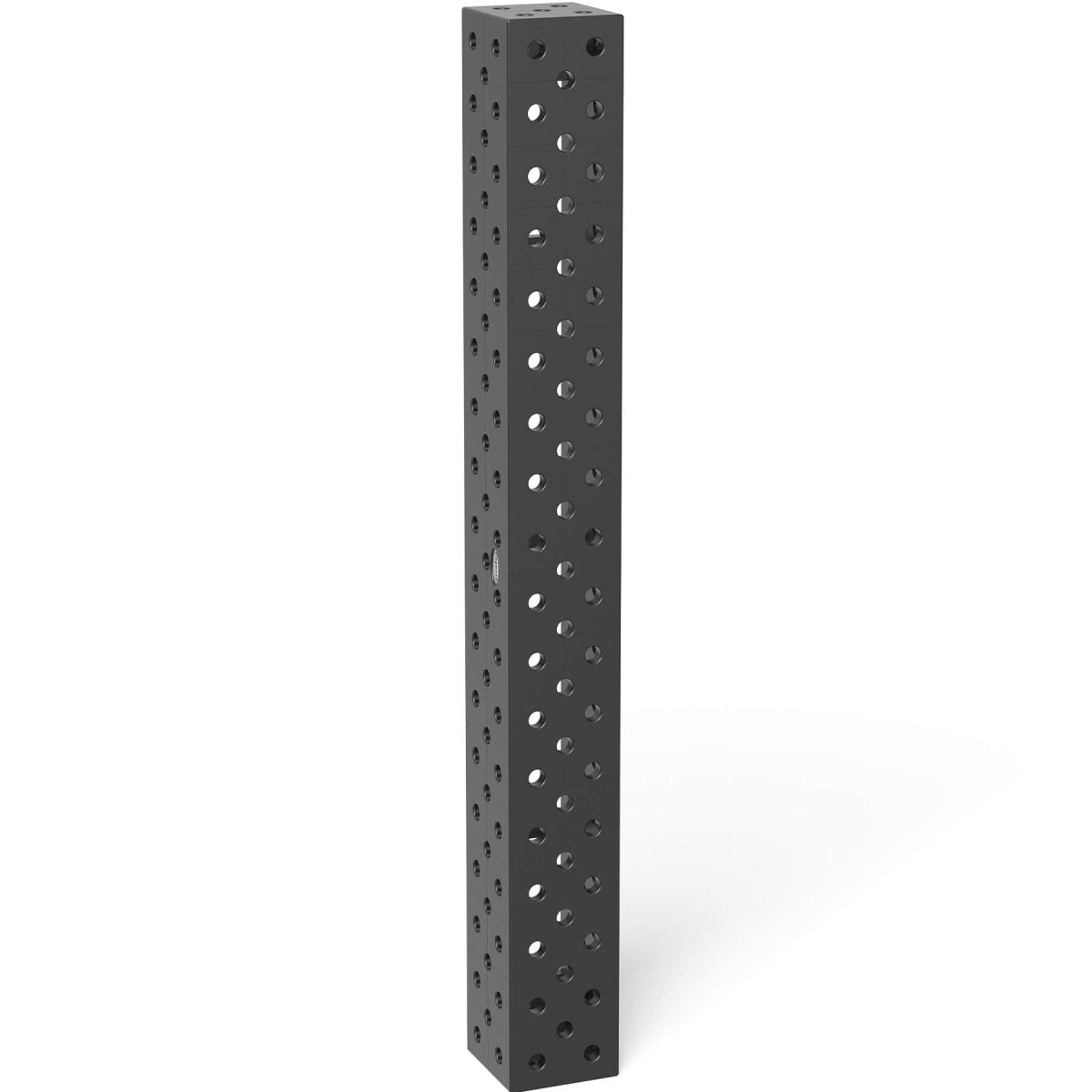

The Siegmund 2-280386.P: 1,800x200x200mm Square U-Shape Riser Block provides maximum extension and vertical stability for the largest welding setups. Its plasma nitrided surface ensures resistance to wear and spatter, while its rigid 25mm (0.98" Inches) wall construction delivers strength and accuracy under extreme loads.
- Measures 1,800x200x200mm (70.87"x7.87"x7.87" Inches) for unmatched extension reach.
- Plasma nitrided surface provides long-term durability and spatter resistance.
- 25mm (0.98" Inches) wall thickness ensures structural rigidity under heavy use.
- 100mm (3.94" Inches) grid spacing supports repeatable precision alignment.
- Five-sided borehole layout with optional diagonal holes increases clamping versatility.
- Back-mounted holes allow table leg attachment from 500mm (19.69" Inches) length upward.
Key Features:
- Delivers extreme reach and stability for oversized welding setups.
- Hardened nitrided finish extends service life in high-demand shops.
- Supports vertical and long-span use with back-mounted leg holes.
- Five-sided borehole system enhances clamping flexibility.
- Integrates fully with Siegmund System 28 Metric Series welding tables.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 1,800mm (70.87" Inches)
- Width: 200mm (7.87" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 449.7 lbs. (204 kg.)
Common Uses:
This riser block supports long-span extensions and vertical positioning for large-scale welding projects. It provides secure clamping and precise orientation for oversized workpieces, ensuring stability and repeatability in heavy-duty fabrication. Its nitrided finish and integration with table legs make it ideal for demanding shop layouts.
