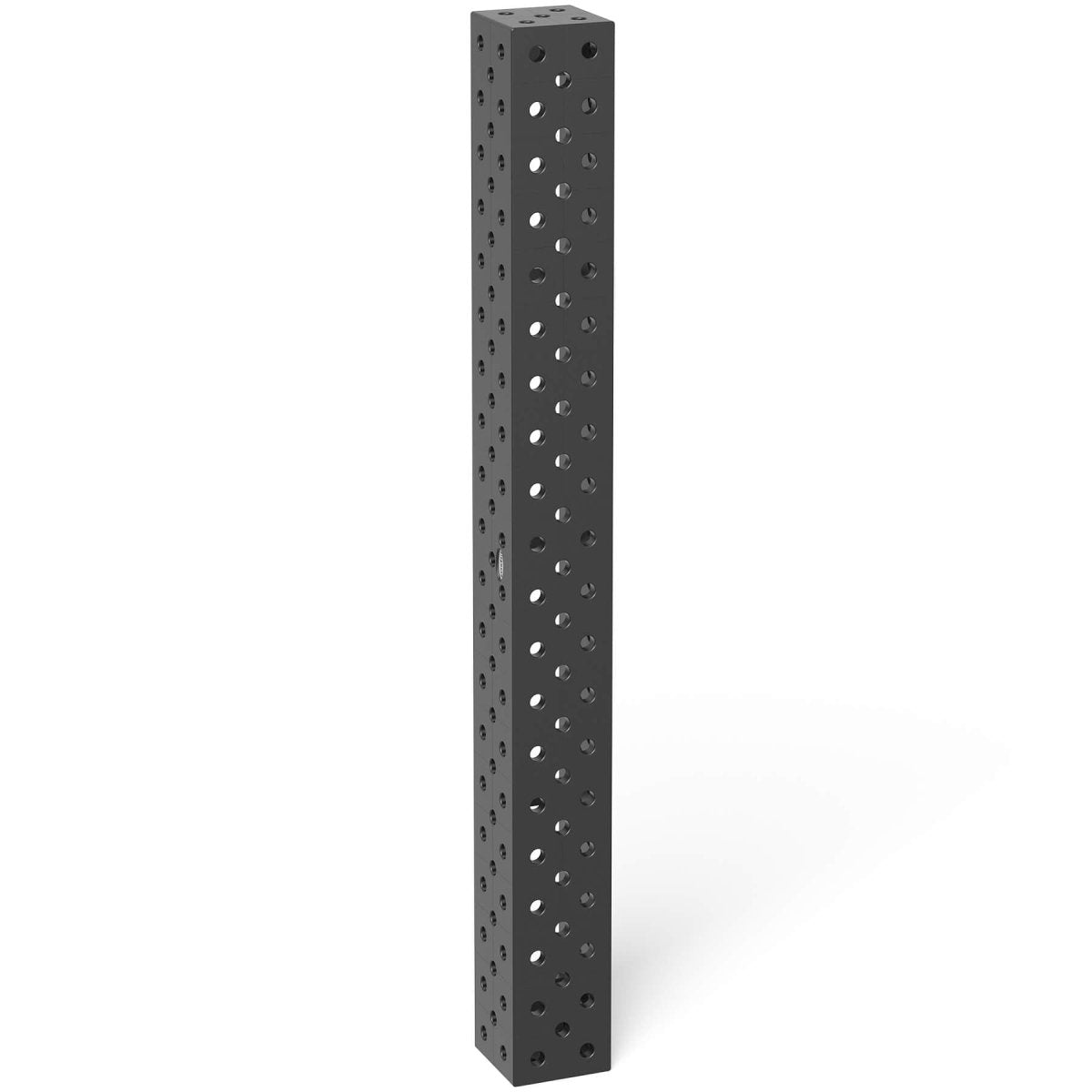

The Siegmund 2-280390.P: 2,000x200x200 Square U-Shape Riser Block provides the greatest extension capacity in the Siegmund lineup, delivering maximum reach, stability, and durability for large-scale welding setups. Its plasma nitrided surface ensures resistance to spatter and wear, while its robust 25mm
(0.98" Inches) walls maintain precision under the heaviest loads.
- Measures 2,000x200x200mm (78.74"x7.87"x7.87" Inches) for extreme extension applications.
- Plasma nitrided surface protects against weld spatter, corrosion, and wear.
- 25mm (0.98" Inches) wall thickness guarantees rigidity under heavy stress.
- 100mm (3.94" Inches) grid spacing ensures accurate alignment and repeatability.
- Five-sided borehole system with optional diagonal holes expands clamping options.
- Includes mounting holes on the back for attaching table legs from 500mm (19.69" Inches) length upward.
Key Features:
- Provides the longest extension reach for oversized welding projects.
- Hardened nitrided finish ensures long service life in demanding shops.
- Back-mounted holes enable leg attachment for long-span stability.
- Five-sided borehole layout with 100mm (3.94" Inches) spacing enhances flexibility.
- Seamlessly integrates with Siegmund System 28 Metric Series welding tables.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 2,000mm (78.74" Inches)
- Width: 200mm (7.87" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 496 lbs. (225 kg.)
Common Uses:
This riser block provides extreme reach and vertical support for the largest fabrication projects. It ensures precision alignment and secure clamping for oversized workpieces, maintaining rigidity across long spans. Its nitrided surface and mounting compatibility make it ideal for heavy-duty welding environments requiring maximum accuracy and stability.
