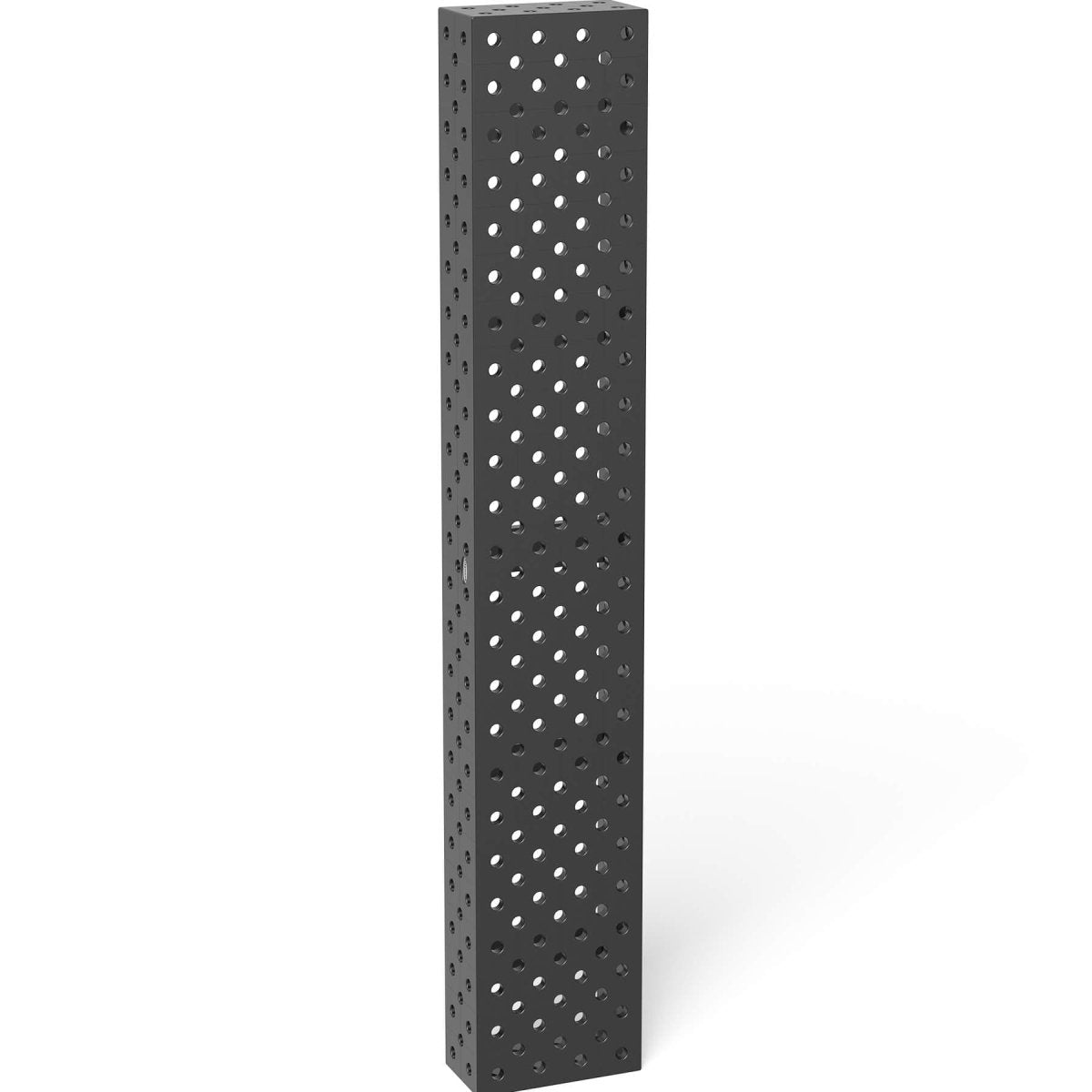

The Siegmund 2-280391.2.P: 2,400x400x200mm Square U-Shape is the largest in this series, delivering maximum reach and rigidity for Siegmund System 28 Metric Series welding setups. Its 2,400mm length makes it ideal for oversized assemblies, vertical fixtures, and extended workstations. Built from 25mm thick material and plasma nitrided for durability, it ensures long-term precision and resistance to wear in heavy-duty fabrication.
- Extra-long 2,400mm length supports oversized and complex assemblies.
- Plasma nitrided finish resists spatter, corrosion, and surface wear.
- Five-sided boreholes and diagonal options expand clamping versatility.
- 100mm grid spacing allows precise, repeatable orientation.
- 25mm material thickness provides rigidity against flex and distortion.
- Weight of 864.2 lbs. (392 kg.) ensures industrial-grade stability.
Key Features:
- Extended 2,400mm length for large-scale fabrication stability.
- Durable plasma nitrided coating ensures long-lasting surface protection.
- Fully compatible with Siegmund System 28 Metric Series welding tables.
- Multiple fixturing options enabled by five-sided boreholes.
- Heavy-duty design provides accuracy and alignment under load.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 2,400mm (94.49" Inches)
- Width: 400mm (15.75" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 864.2 lbs. (392 kg.)
Common Uses:
The 2,400x400x200mm Square U-Shape is used to extend Siegmund System 28 Metric Series welding tables for the largest fabrication projects. It provides maximum support for vertical fixturing and oversized assemblies while maintaining rigid accuracy. With its plasma nitrided surface, five-sided boreholes, and grid layout, it enables repeatable clamping setups and industrial-grade stability in demanding shop environments.
