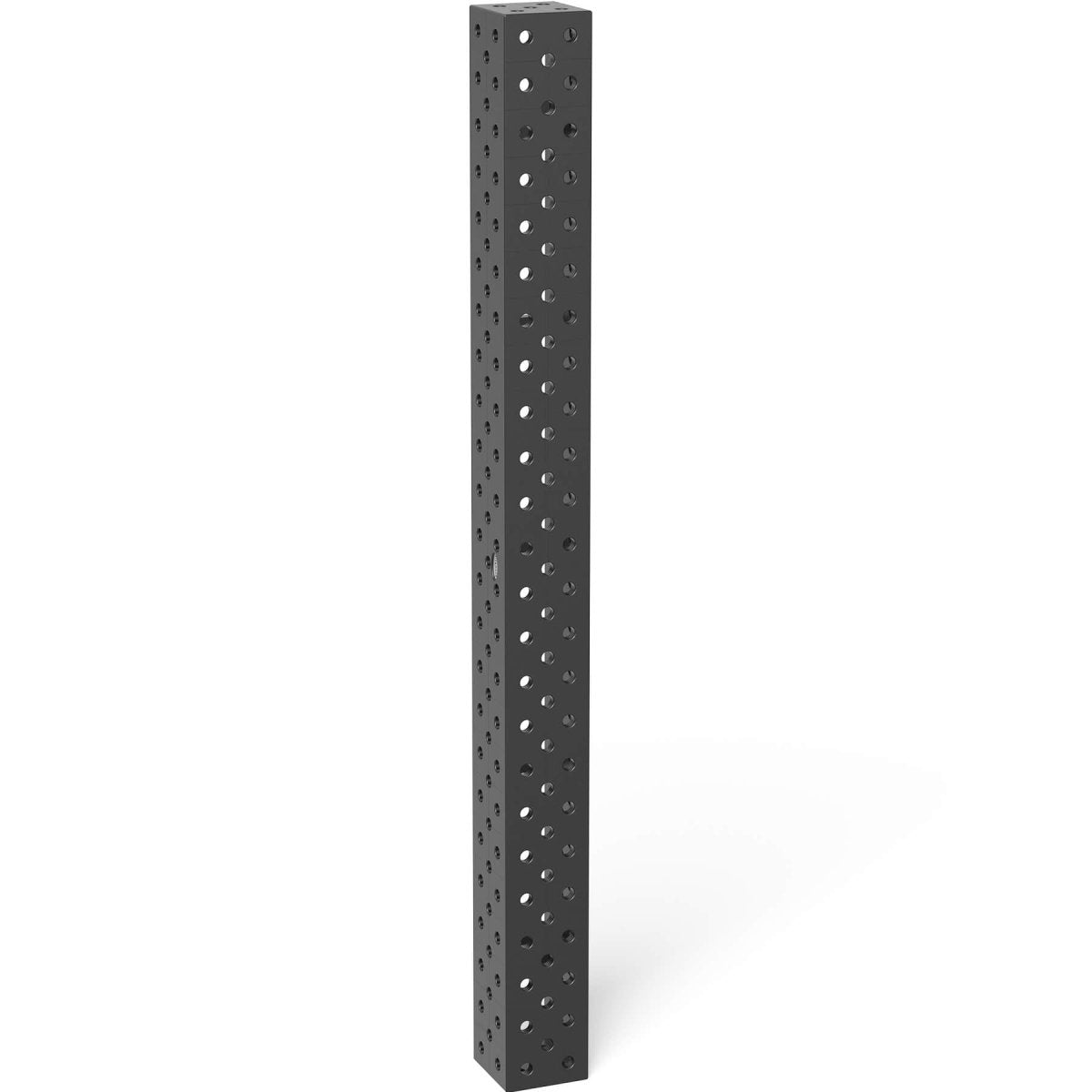

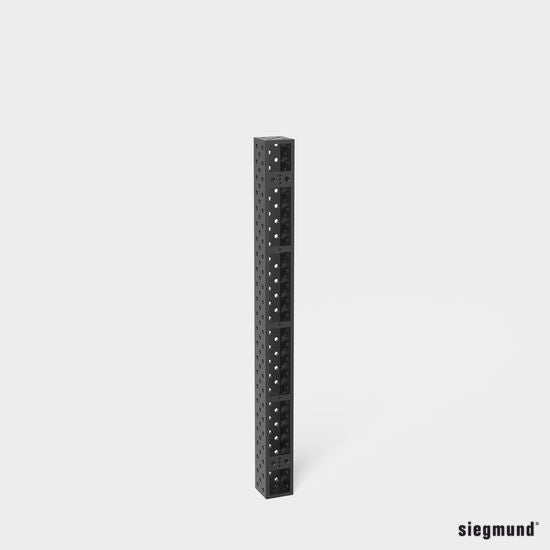

The Siegmund 2-280391.P: 2,400x200x200mm Square U-Shape Riser Block provides maximum extension and structural support for the largest welding and fabrication setups. Its plasma nitrided finish ensures long-term resistance to weld spatter and wear, while its heavy 25mm (0.98" Inches) wall construction maintains rigidity under extreme loads.
- Measures 2,400x200x200mm (94.49"x7.87"x7.87" Inches) for unmatched extension reach.
- Plasma nitrided surface resists wear, corrosion, and weld spatter.
- 25mm (0.98" Inches) wall thickness ensures maximum load-bearing stability.
- 100mm (3.94" Inches) grid spacing enables precise and repeatable orientation.
- Five-sided borehole system with optional diagonal holes increases clamping versatility.
- Back-mounted leg holes allow attachment of table legs for long-span support.
Key Features:
- Delivers the longest extension capacity in the Siegmund riser block series.
- Nitrided finish guarantees durability in high-demand welding environments.
- Five-sided borehole arrangement provides versatile clamping options.
- 100mm (3.94" Inches) grid system ensures repeatable precision.
- Fully compatible with Siegmund System 28 Metric Series welding tables.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 2,400mm (94.49" Inches)
- Width: 200mm (7.87" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 586.4 lbs. (266 kg.)
Common Uses:

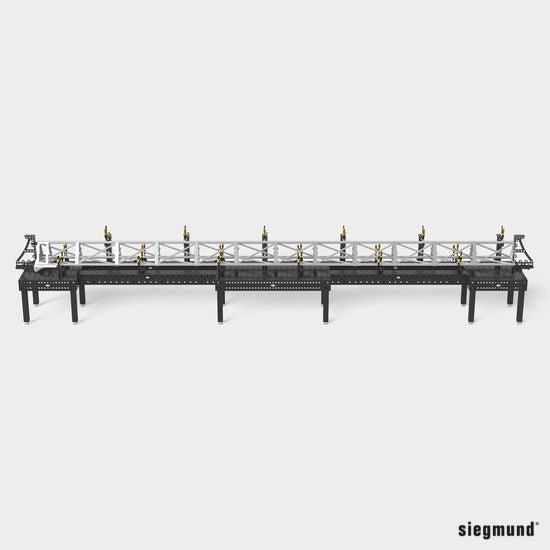

This riser block provides the maximum reach for oversized welding projects, enabling secure long-span extensions and vertical positioning of heavy workpieces. It ensures precise alignment and stability across demanding fabrication setups, delivering repeatable accuracy and rigidity under load. Its nitrided finish and compatibility with Siegmund legs and accessories make it an essential solution for extreme shop applications.
