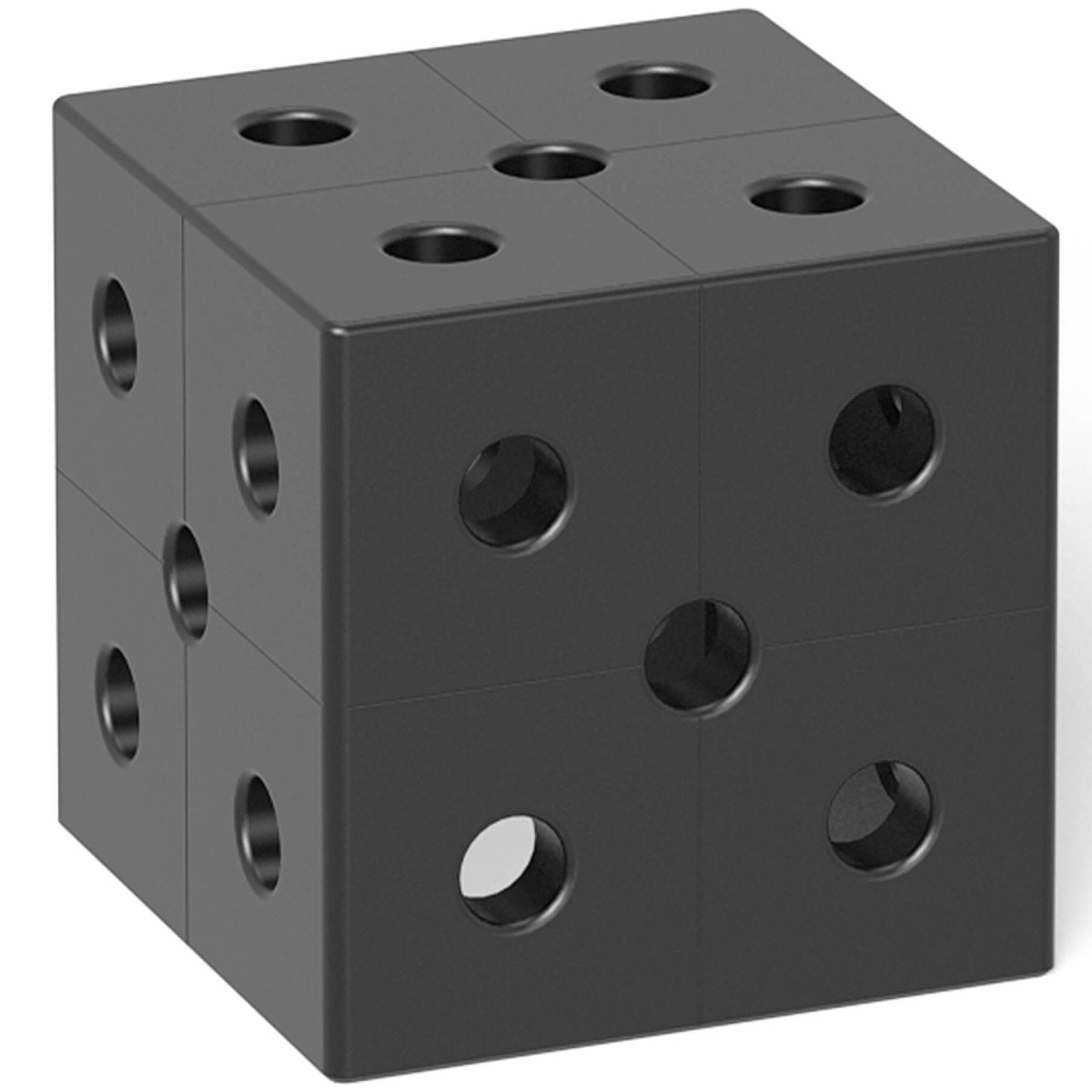

The Siegmund square U-shape riser block provides the stability and durability needed for advanced welding setups, vertical extensions, and solid table connections. Its plasma nitrided finish guarantees long service life while supporting precise alignment across heavy-duty applications.
- Delivers a 200x200x200mm (7.87"x7.87"x7.87" Inches) riser block for vertical setups or table extensions.
- Plasma nitrided surface resists weld spatter, wear, and corrosion.
- 100mm (3.94" Inches) grid spacing ensures precise orientation and repeatability.
- 25mm (0.98" Inches) wall thickness delivers exceptional strength and rigidity.
- Five-sided borehole arrangement and optional diagonal holes maximize clamping options.
- Compatible with connector bolts and legs for flexible integration into shop layouts.
Key Features:
- Provides a strong, stable block for welding table extensions and vertical positioning.
- Nitrided surface ensures long-lasting durability under heavy use.
- Expands clamping versatility with five-sided and diagonal boreholes.
- Maintains accuracy with 100mm (3.94" Inches) grid system.
- Fully compatible with Siegmund System 28 Metric Series setups.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 200mm (7.87" Inches)
- Width: 200mm (7.87" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 68.3 lbs. (31 kg.)
Common Uses:
This riser block provides secure vertical extensions and strong connections between Siegmund welding tables. It enables accurate, repeatable positioning for clamping and fixture setups in heavy fabrication environments. Its nitrided finish and rigid construction ensure dependable performance in demanding welding applications.
