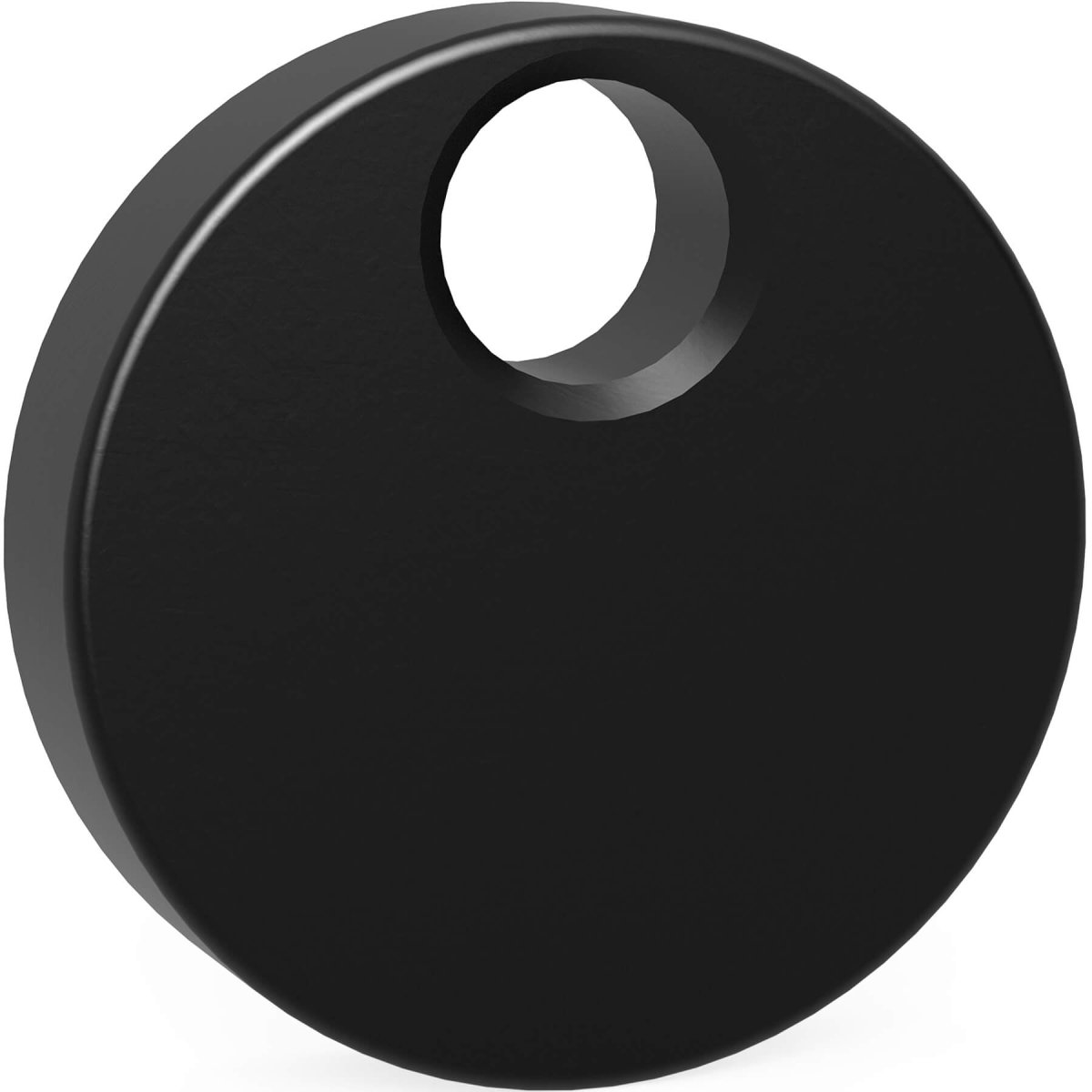

The Ø100mm Eccentric Stop (Nitrided) is a heavy-duty positioning and support tool for Siegmund System 28 Metric Series tables. It enables infinite adjustment of elements by a simple twist while also serving as a stable support surface when needed.
- Nitrided surface improves durability and resistance to wear.
- Large 100mm (3.94" Inches) diameter provides stable positioning.
- 25mm (0.98" Inches) thickness ensures strength under demanding use.
- Dual function as both adjustable stop and support surface.
- Solid weight of 3.09 lbs. (1.4 kg.) ensures reliable holding stability.
Key Features:
- Versatile function as both eccentric stop and support surface.
- Infinite adjustment range with quick twist operation.
- Durable nitrided finish for long service life.
- Optimized for Siegmund System 28 Metric Series tables.
Specifications:
- Series: Siegmund System 28 Metric Series
- Diameter: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 3.09 lbs. (1.4 kg.)
- Material: Steel, Nitrided
Common Uses:
The Ø100mm Eccentric Stop (Nitrided) provides infinite adjustment and secure positioning for workpieces in welding and fabrication. It doubles as a support surface for larger components, delivering durability and versatility in both confined and open setups.
