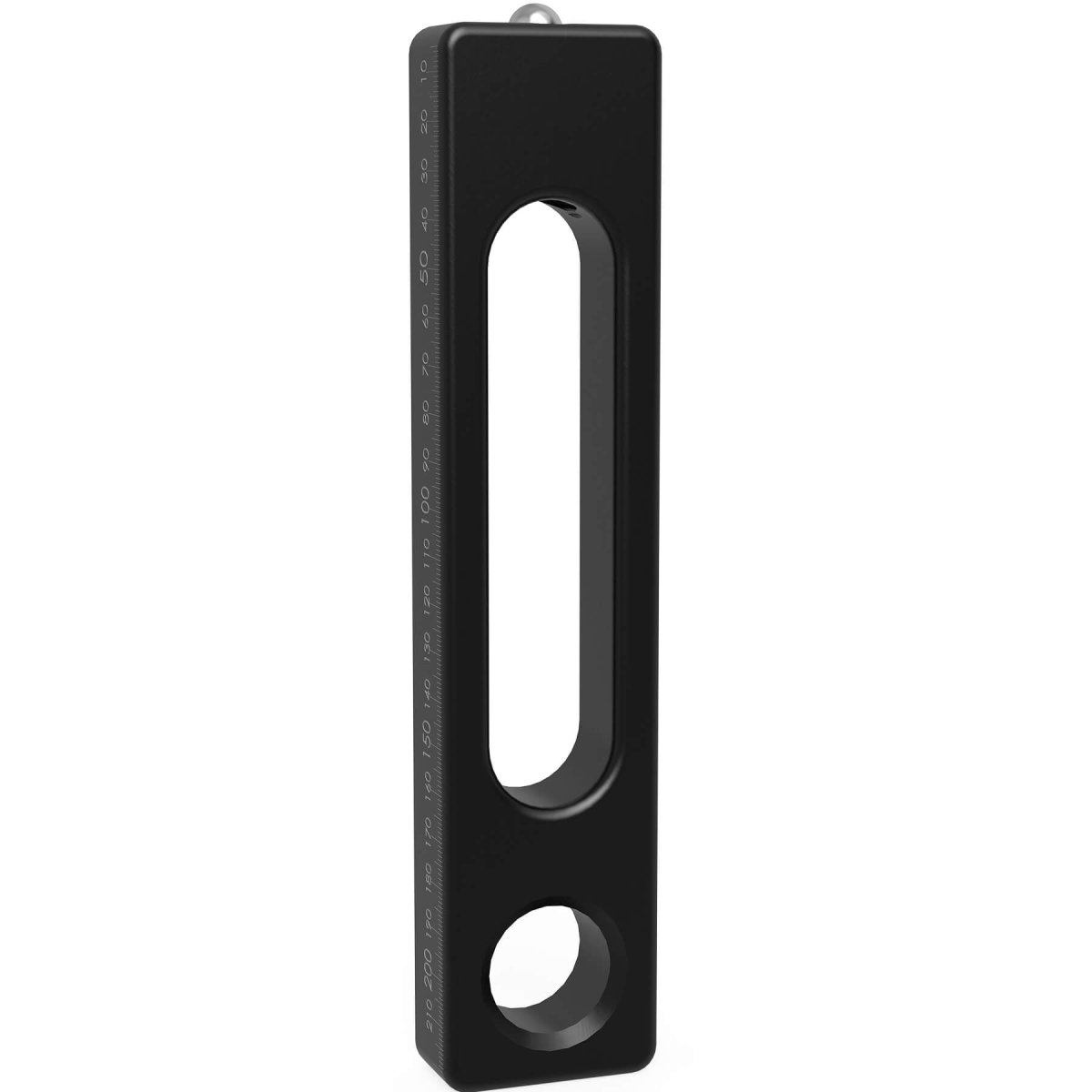

The Siegmund 225mm Universal Stop L FDS adds a spring-loaded mechanism for secure, efficient clamping of metal and molded components. This feature eliminates the need for additional fixation in many applications, making it especially effective in serial production where speed and repeatability matter. Its burnished finish and precision scaling ensure long-lasting durability and accuracy.
- Spring-loaded mechanism provides automatic pressure without extra fixation.
- Elongated slot delivers 100mm adjustment range for flexible positioning.
- Combination of borehole and slot supports both fixed and variable setups.
- Fine scaling on both sides ensures repeatable accuracy.
- Durable burnished finish enhances wear resistance.
Key Features:
- Spring mechanism saves setup time in repetitive applications.
- Adjustable slot offers wide positioning flexibility.
- Borehole integration supports multiple clamping options.
- Burnished finish ensures lasting durability.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280421
- System: Siegmund System 28 Metric Series
- Length: 225mm (8.86" Inches)
- Width: 50mm (1.97" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Adjusting Range: 100mm (3.94" Inches)
- Weight: 3.09 lbs. (1.4 kg.)
- Finish: Burnished

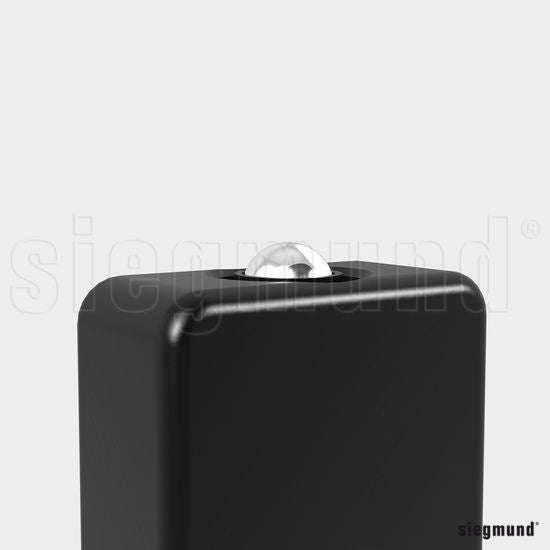

- Special Feature: Integrated spring pressure part
Common Uses:

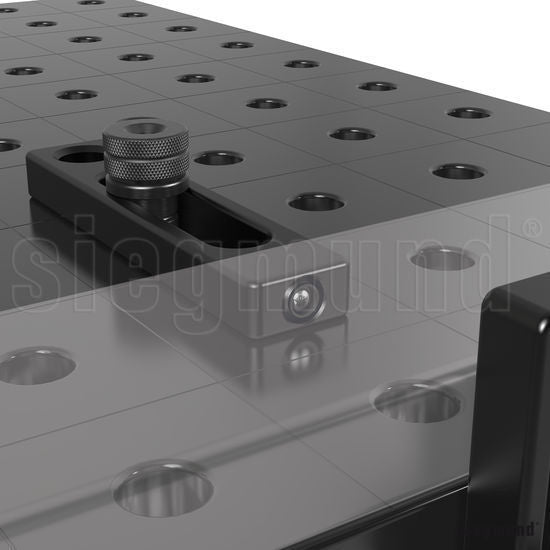

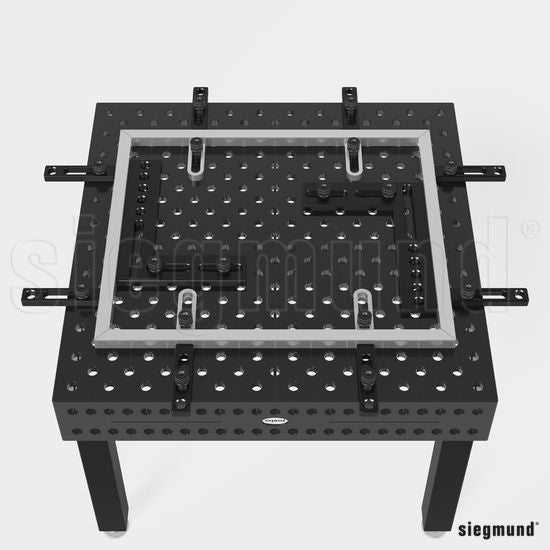

This universal stop is widely used in serial production for clamping metal and molded components. The integrated spring mechanism provides secure holding without the need for extra fixation, making it ideal for repetitive welding and fixturing tasks. Its elongated slot and borehole combination give fabricators the flexibility to handle both variable and fixed setups with precision.
