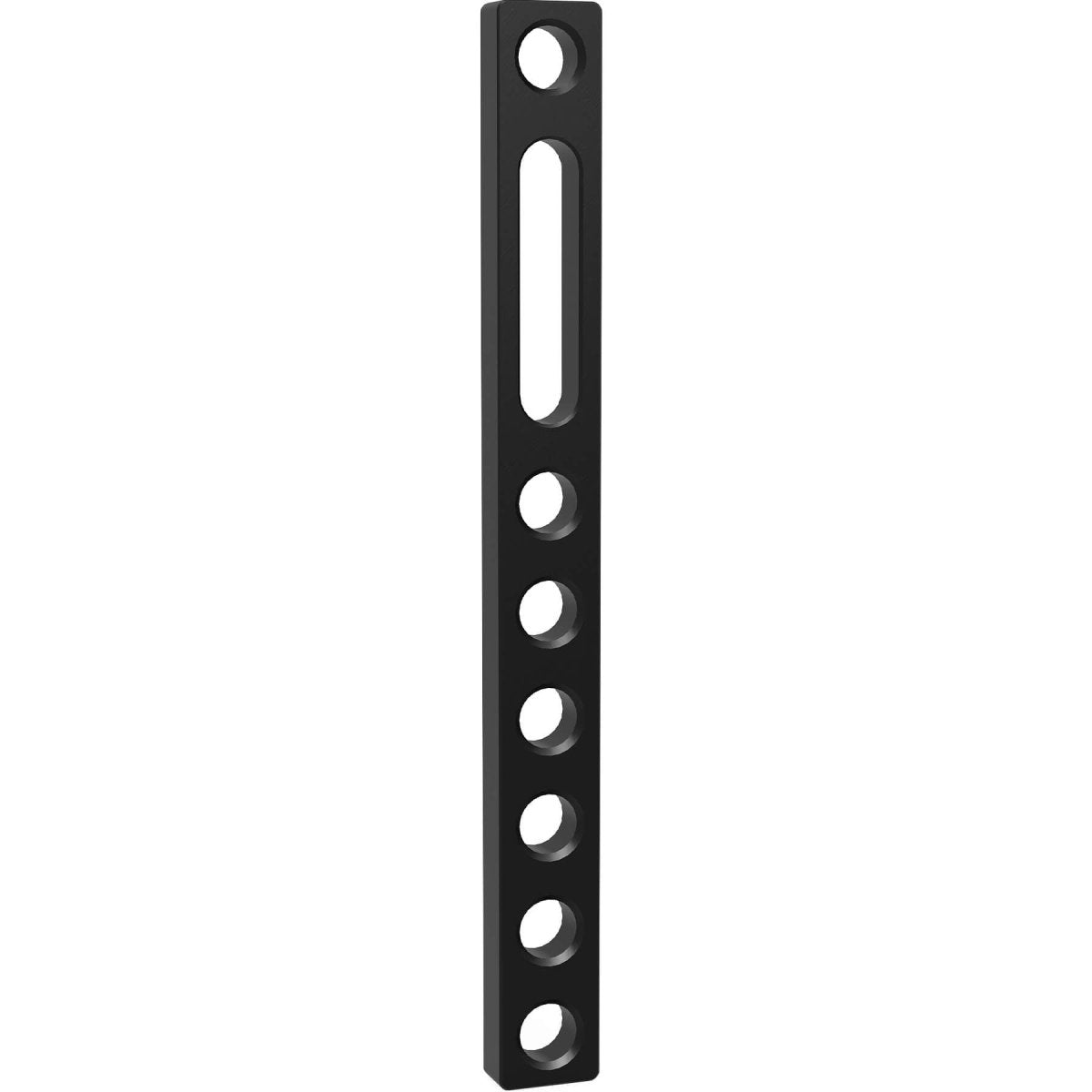

The Siegmund 500mm Universal Stop is designed to expand stopping surface capacity while providing unmatched flexibility in fixturing. Featuring an elongated slot and seven system boreholes, it offers both fixed and adjustable clamping options for large-scale setups. The plasma nitrided finish increases hardness and durability, ensuring long-lasting precision even under heavy-duty use.
- Seven system boreholes provide multiple secure fastening points.
- Elongated slot with 100mm adjustment range allows flexible positioning.
- Fine scaling supports precise, repeatable setups.
- Plasma nitrided finish enhances wear resistance and service life.
- Fully compatible with Siegmund System 28 Metric Series.
Key Features:
- Extra-long 500mm length supports large workpieces.
- Combination of boreholes and slot provides versatile clamping options.
- Durable nitrided finish delivers long-term reliability.
- Fine scaling ensures repeatable precision.
- Engineered for Siegmund System 28 Metric Series welding tables.
Specifications:
- Item No.: 2-280427.N
- System: Siegmund System 28 Metric Series
- Length: 500mm (19.69" Inches)
- Width: 50mm (1.97" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Adjusting Range: 100mm (3.94" Inches)
- Weight: 7.28 lbs. (3.3 kg.)
- Finish: Plasma Nitrided
Common Uses:

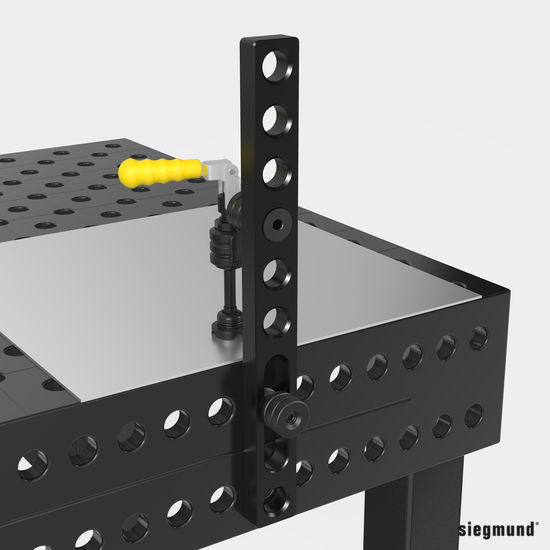

This universal stop is used for precise positioning and stable clamping of oversized or heavy workpieces on Siegmund System 28 Metric Series welding tables. Its elongated slot and multiple boreholes allow both fixed and adjustable setups, giving fabricators maximum flexibility in fixturing. It is relied on for large-scale welding and fabrication tasks that require accuracy, strength, and repeatability.
