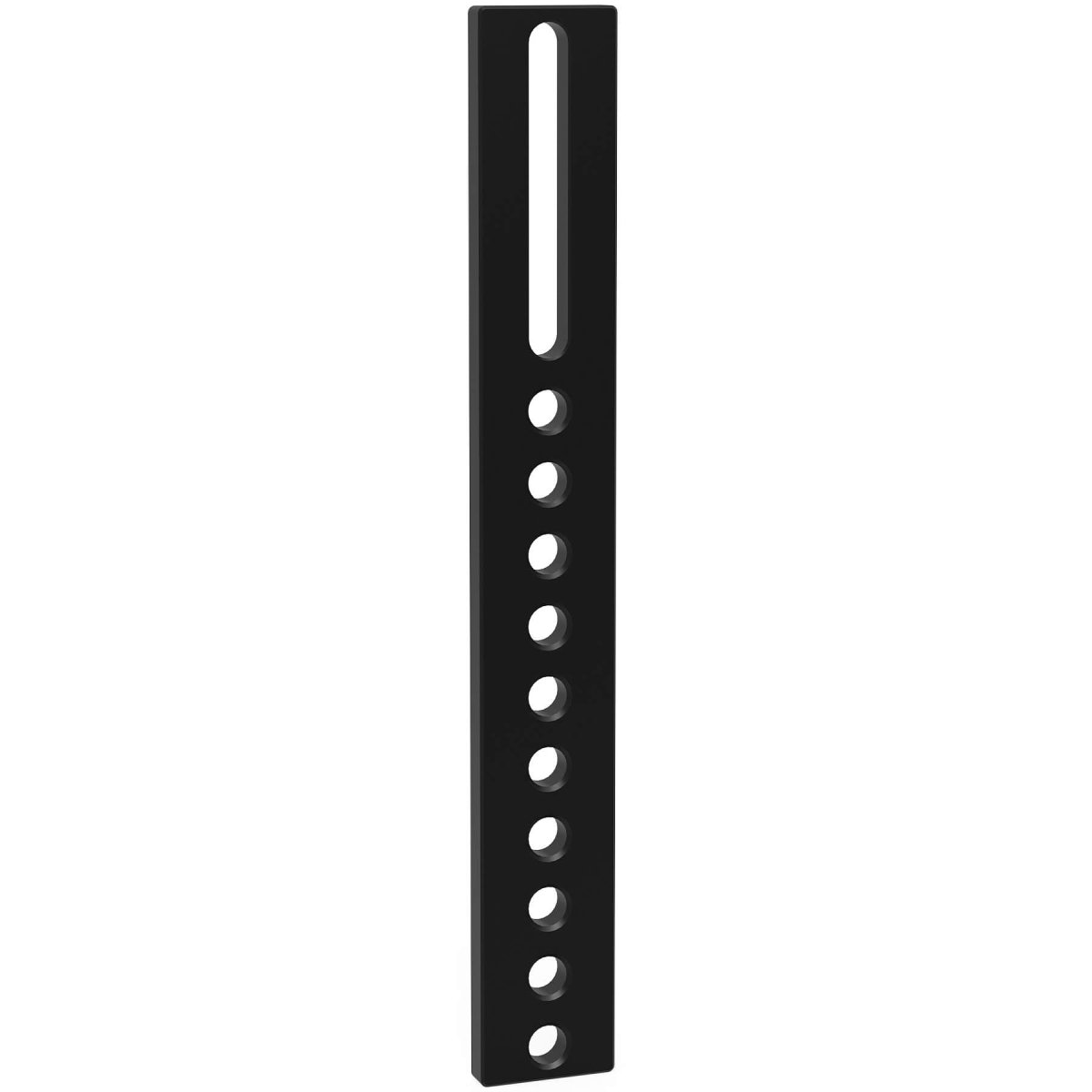

The Siegmund 750mm Universal Stop S is the largest in its class, designed to handle oversized and heavy components with precision and stability. Featuring a 200mm elongated slot and multiple system boreholes, it provides both fixed and adjustable positioning options. Its wide 100mm profile and 25mm thickness deliver strength and rigidity, while the plasma nitrided finish ensures long-lasting durability in high-demand environments.
- 750mm length provides maximum reach for oversized workpieces.
- 200mm elongated slot offers broad adjustment range.
- Multiple boreholes expand clamping flexibility.
- Wide 100mm profile increases structural rigidity.
- Plasma nitrided finish resists wear and enhances service life.
Key Features:
- Extended 750mm profile supports very large fabrications.
- Combination of slot and boreholes allows versatile setups.
- Nitrided finish ensures maximum durability under stress.
- Precision scaling provides repeatable alignment.
- Optimized for Siegmund System 28 Metric Series welding tables.
Specifications:
- Item No.: 2-280432.N
- System: Siegmund System 28 Metric Series
- Length: 750mm (29.53" Inches)
- Width: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Adjusting Range: 200mm (7.87" Inches)
- Weight: 26.68 lbs. (12.1 kg.)
- Finish: Plasma Nitrided
Common Uses:
This universal stop is used for precise alignment and secure clamping of very large workpieces on Siegmund System 28 Metric Series welding tables. Its extended length, wide profile, and combination of boreholes with an elongated slot provide unmatched versatility for heavy-duty welding, large-scale fabrication, and repeatable precision in industrial applications.
