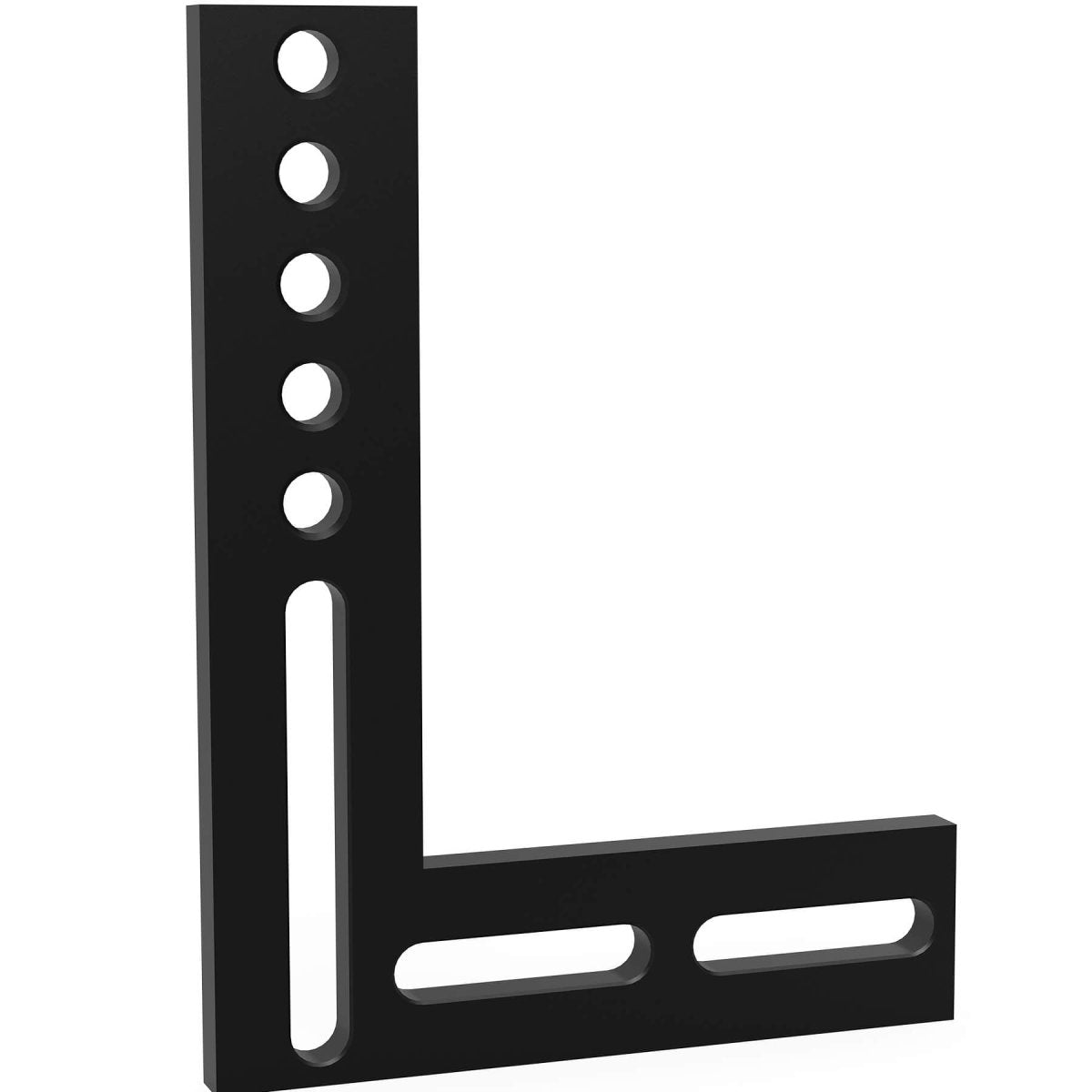

The 500x375mm Flat Square Large Burnished provides strong and accurate right-angle alignment for heavy-duty fixturing. Its borehole and elongated hole combination allows both secure fixation and flexible adjustment. With a 200mm adjustment range, it delivers versatility for large-scale fabrication setups where stability and precision are critical.
- Provides accurate 90° positioning for large components.
- Freely adjustable over a 200mm range for flexible setups.
- Burnished finish withstands heavy use and reduces wear.
- 25mm (0.98" Inches) thickness ensures long-term durability.
- Robust size of 500x375x100mm supports demanding applications.
- Weighs 26.46 lbs. (12 kg.) for stability during fixturing.
Key Features:
- Delivers accurate and stable 90° alignment.
- Wide adjustment range improves flexibility in setups.
- Durable burnished surface resists wear in daily use.
- Strong 25mm (0.98" Inches) construction ensures rigidity.
- Compatible with Siegmund System 28 Metric Series tables.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 500mm (19.69" Inches)
- Width: 375mm (14.76" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 26.46 lbs. (12 kg.)
Common Uses:
This large flat square provides reliable right-angle positioning for heavy-duty welding and fabrication. It ensures stability in larger assemblies and offers 200mm of adjustment for flexible clamping and alignment across varied workpiece sizes.
