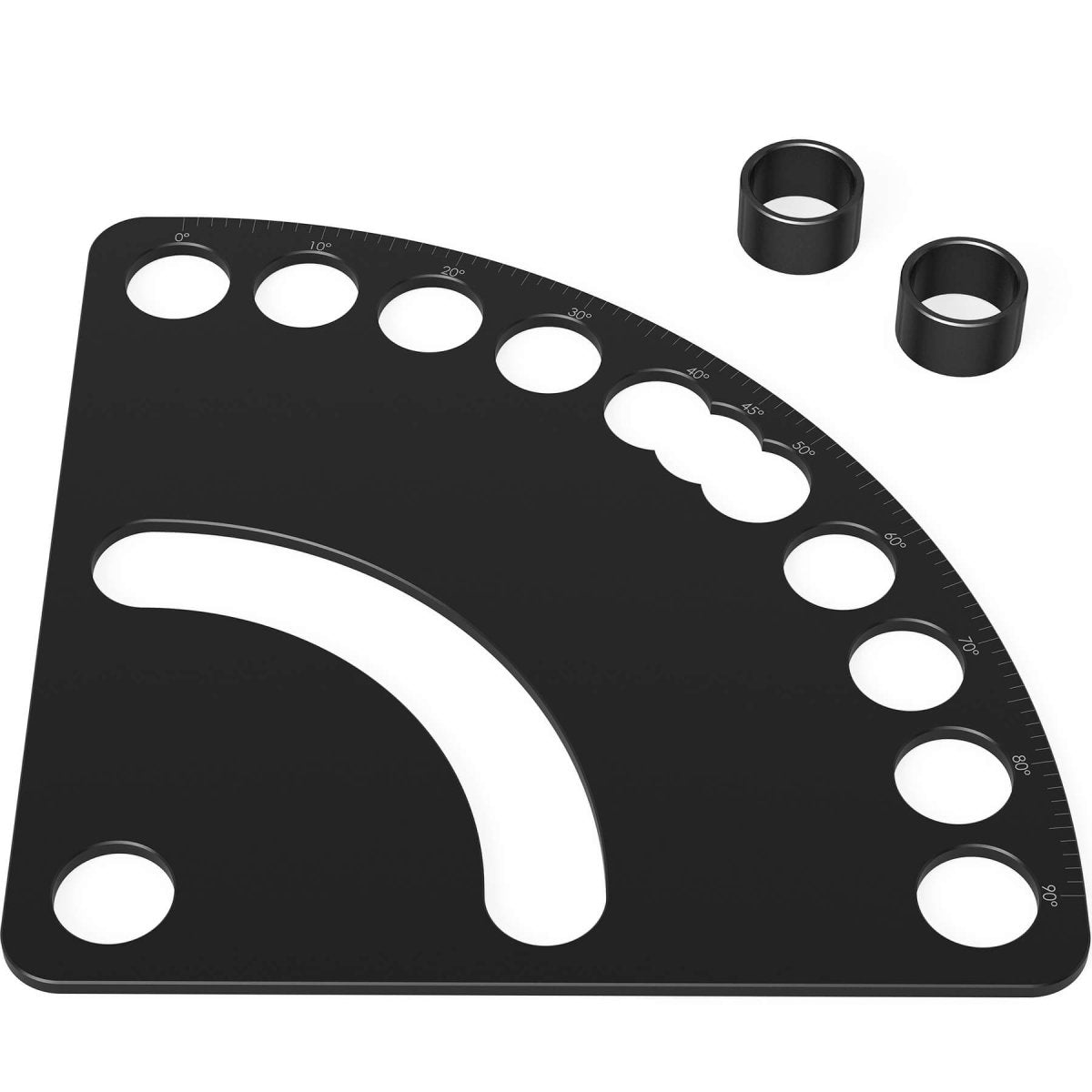

The Siegmund 250x250mm Angle Alignment Template enables precise angular adjustment for welding and fixturing tasks. With the ability to lock in 10° increments or continuously adjust between 0–90°, it delivers flexibility for both standard and custom angle setups. Its nitrided finish ensures durability, while the integrated precision scale allows for fine adjustments down to 1°.
- Adjustable in 10° increments or continuously variable from 0–90°.

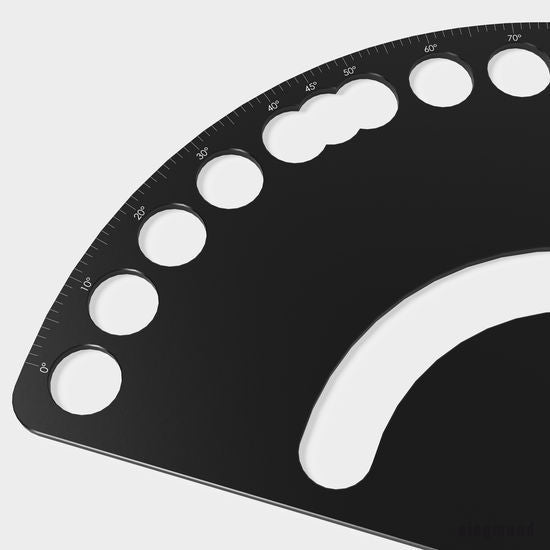

- 1° precision scale supports accurate angular positioning.
- Plasma nitrided surface increases wear resistance and durability.
- Includes two spacer sleeves for flexible setup options.
- Compatible with Siegmund System 28 Metric Series tables.
Key Features:
- Enables precise angle alignment across a wide range.
- Durable nitrided finish withstands daily heavy use.
- Continuous adjustability provides versatility in setups.
- Spacer sleeves add flexibility for varying applications.
- Fully engineered for Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280455.N
- System: Siegmund System 28 Metric Series
- Length: 250mm (9.84" Inches)
- Width: 250mm (9.84" Inches)
- Material Thickness: 5mm (0.20" Inches)
- Weight: 3.31 lbs. (1.5 kg.)
- Finish: Plasma Nitrided
- Includes: 2x Spacer Sleeves
Common Uses:

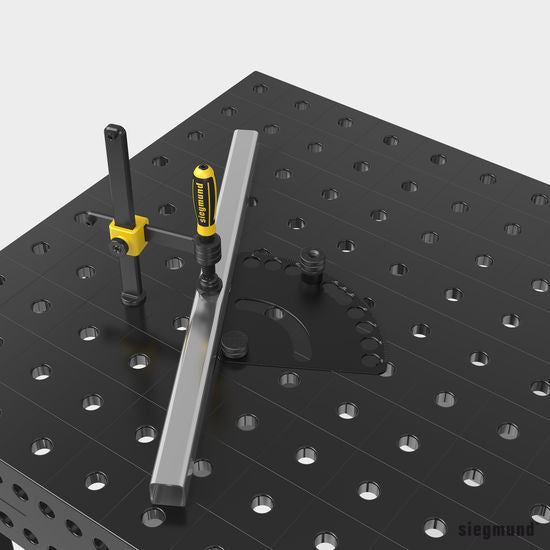

This angle alignment template is used for setting up precise welding and fixturing angles on Siegmund System 28 Metric Series tables. Fabricators rely on it for both standard angular stops and complex custom setups, making it a versatile tool for ensuring accuracy and repeatability in production and fabrication environments.
