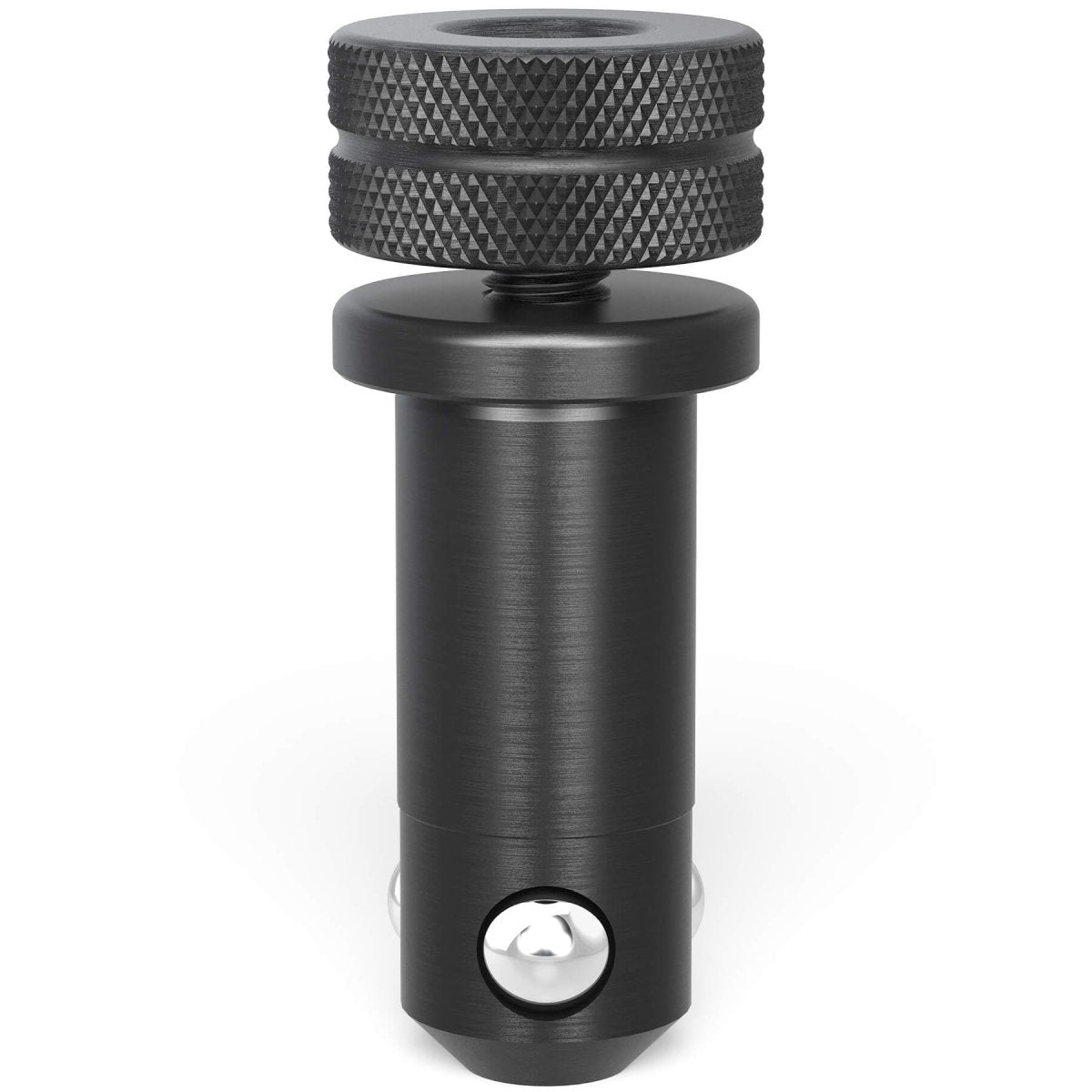

The Fast Clamping Bolt without slot is built for smooth, reliable, and precise connections in heavy-duty welding and fixturing setups. Its burnished finish ensures a clean surface and long service life, making it an essential connecting element for Siegmund System 28 components.
- This bolt features a twistlock design for quick setup and strong holding power.
- The 95mm (3.74" Inches) length provides secure engagement with components.
- Engineered with a burnished surface that prevents damage from O-rings.
- Delivers high shear and tensile force capacity for demanding applications.
- Clamping torque is material-dependent for optimized use with steel and aluminum.
- Designed for connecting up to two components with a hexagon socket (Size 6).
Key Features:
- Smooth surface without O-ring slot ensures consistent clamping.
- Twistlock system delivers fast, repeatable connections.
- Withstands 220 kN (49,458.8 lbf.) shearing force for heavy-duty use.
- Burnished finish increases durability and wear resistance.
- Compatible with Siegmund System 28 Metric Series fixtures.
Specifications:
- Item No.: 2-280511
- System: Siegmund System 28 Metric Series
- Length: 95mm (3.74" Inches)
- Weight: 1.19 lbs. (0.54 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Connection Type: Hexagon Socket (Size 6), Screw Top
Common Uses:
This clamping bolt delivers secure, precise fastening of Siegmund System 28 components in fabrication and welding setups. Its twistlock system ensures rapid connections that hold under high loads, while the smooth burnished surface prevents wear. Fabricators rely on it when strength, speed, and accuracy are critical.
