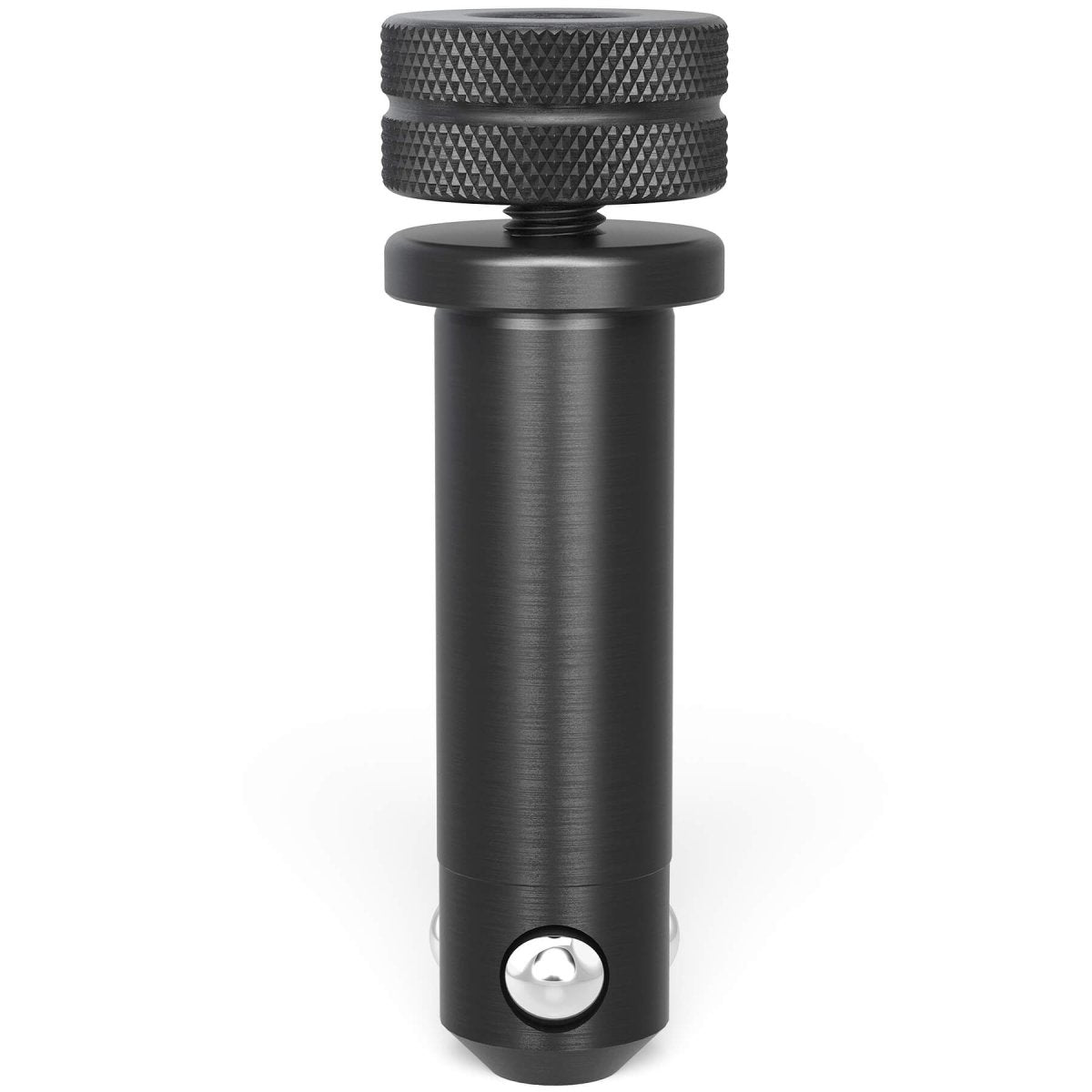

The Fast Clamping Bolt without slot triple burnished provides secure, precise, and durable connections for Siegmund System 28 setups. Built with a smooth surface finish and twistlock mechanism, it ensures fast operation and reliable performance in demanding welding environments.

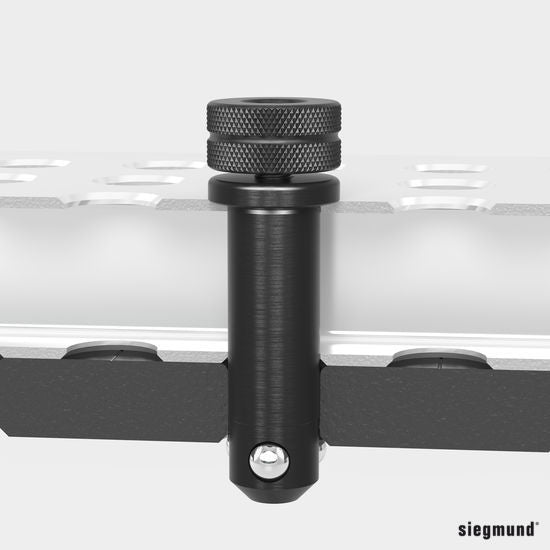

- The 120mm (4.72" Inches) length allows clamping of up to three components.
- Twistlock system ensures fast setup and consistent locking strength.
- Burnished finish resists wear and delivers long-lasting service life.
- Handles high shear and tensile forces for robust fixturing.
- Material-dependent torque settings ensure safe use with steel and aluminum.
- Hexagon socket (Size 6) provides straightforward tightening with screw top.
Key Features:
- Supports clamping of three components with precision.
- Triple burnished surface increases durability and reduces wear.
- Withstands 220 kN (49,458.8 lbf.) shear force and 25 kN (5,620.0 lbf.) tensile force.
- Twistlock design provides quick, repeatable fastening.
- Optimized for Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280513
- System: Siegmund System 28 Metric Series
- Length: 120mm (4.72" Inches)
- Weight: 1.43 lbs. (0.65 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Connection Type: Hexagon Socket (Size 6), Screw Top
Common Uses:

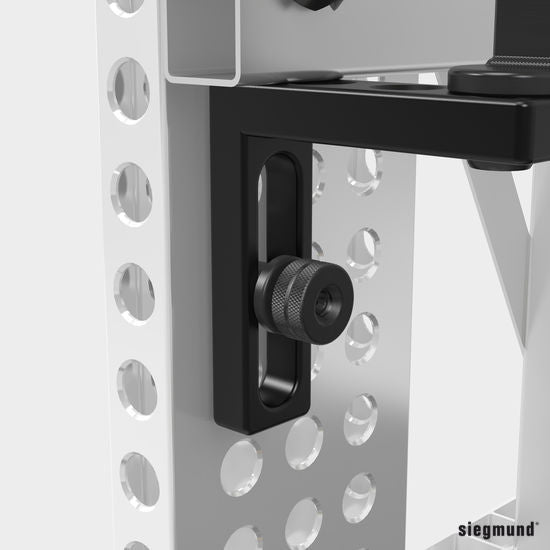

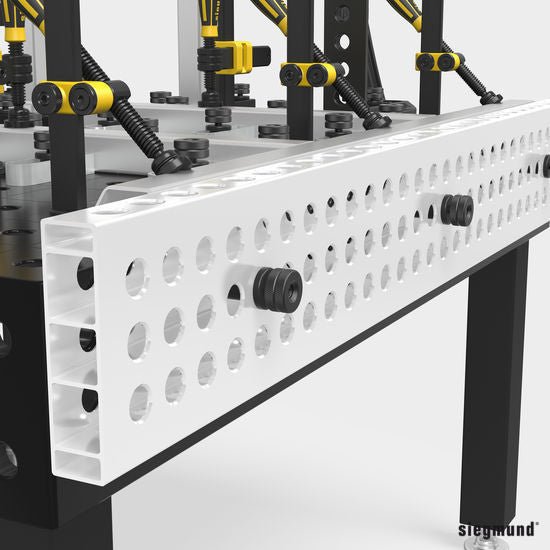

This bolt provides strong, efficient clamping for up to three components in Siegmund System 28 Metric Series fixturing setups. Its triple burnished finish ensures long-term durability under heavy use, while the twistlock system enables rapid and secure connections. It excels in applications where strength, reliability, and precision alignment are essential.
