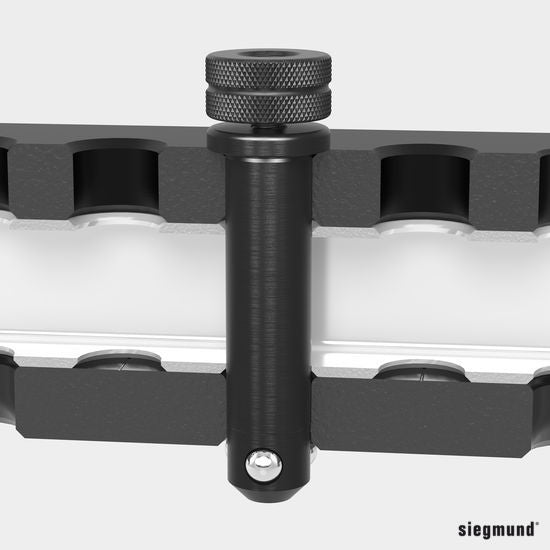

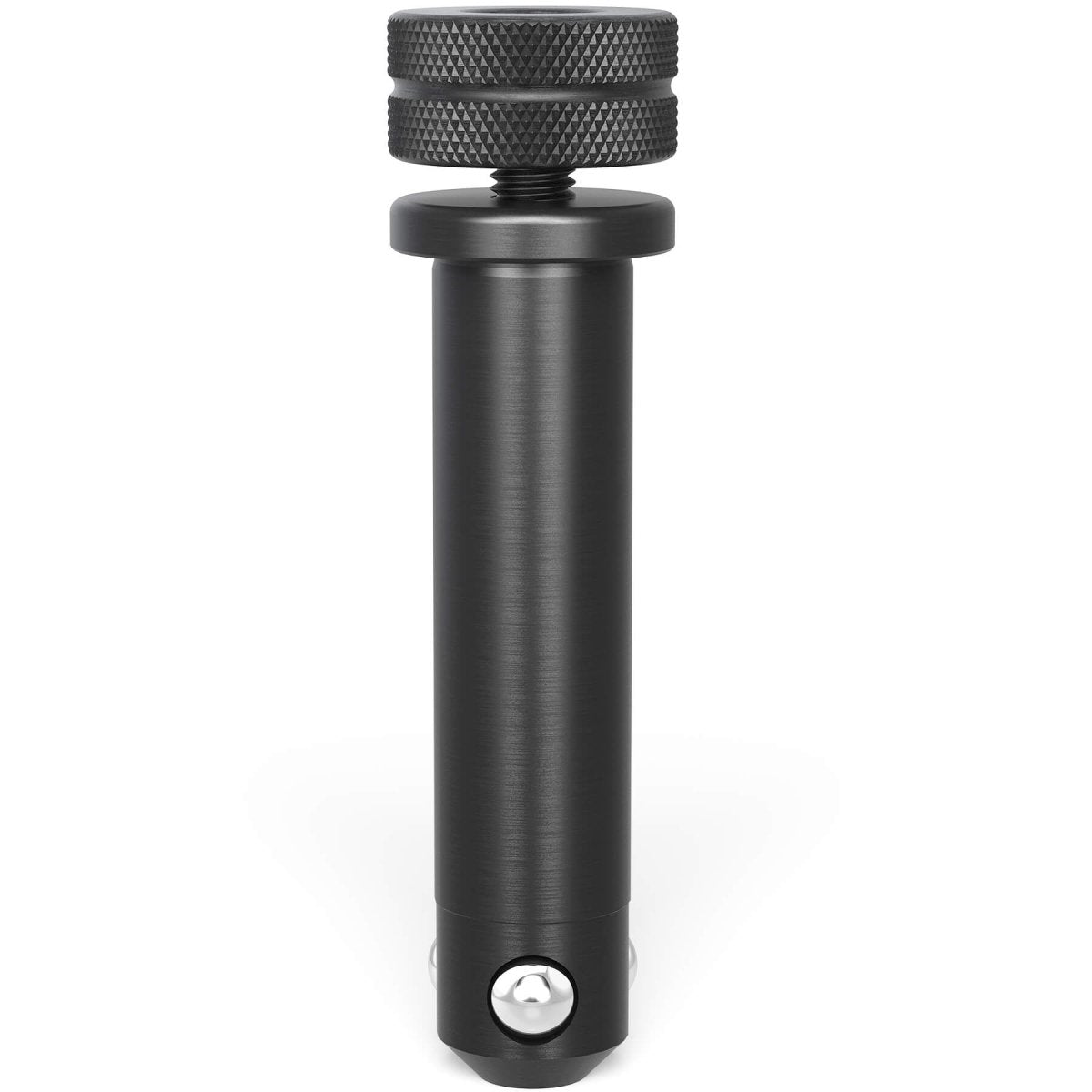

The Fast Clamping Bolt without slot quadruple burnished is engineered for secure, precise, and durable connections in Siegmund System 28 fixturing setups. With its twistlock mechanism and smooth burnished surface, it delivers fast, reliable performance even under heavy-duty shop conditions.
- The 145mm (5.71" Inches) length supports clamping of up to four components.
- Quadruple burnished finish ensures long-lasting wear resistance.
- Twistlock system provides quick and secure engagement.
- High shear and tensile force ratings handle demanding loads.
- Material-specific torque settings ensure safe use with both steel and aluminum.
- Hexagon socket (Size 6) with screw top offers simple and consistent tightening.
Key Features:
- Supports clamping of four components with precision.
- Burnished finish increases surface durability and smoothness.
- Handles 220 kN (49,458.8 lbf.) shear force and 25 kN (5,620.0 lbf.) tensile force.
- Twistlock design allows rapid, repeatable fastening.
- Built for Siegmund System 28 Metric Series applications.
Specifications:
- Item No.: 2-280515
- System: Siegmund System 28 Metric Series
- Length: 145mm (5.71" Inches)
- Weight: 1.68 lbs. (0.76 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Connection Type: Hexagon Socket (Size 6), Screw Top
Common Uses:
This bolt provides high-strength clamping for up to four components in Siegmund System 28 Metric Series setups. Its quadruple burnished finish enhances long-term durability, while the twistlock design ensures rapid and secure connections. It excels in precision welding and fixturing where maximum holding capacity and repeatable reliability are essential.
