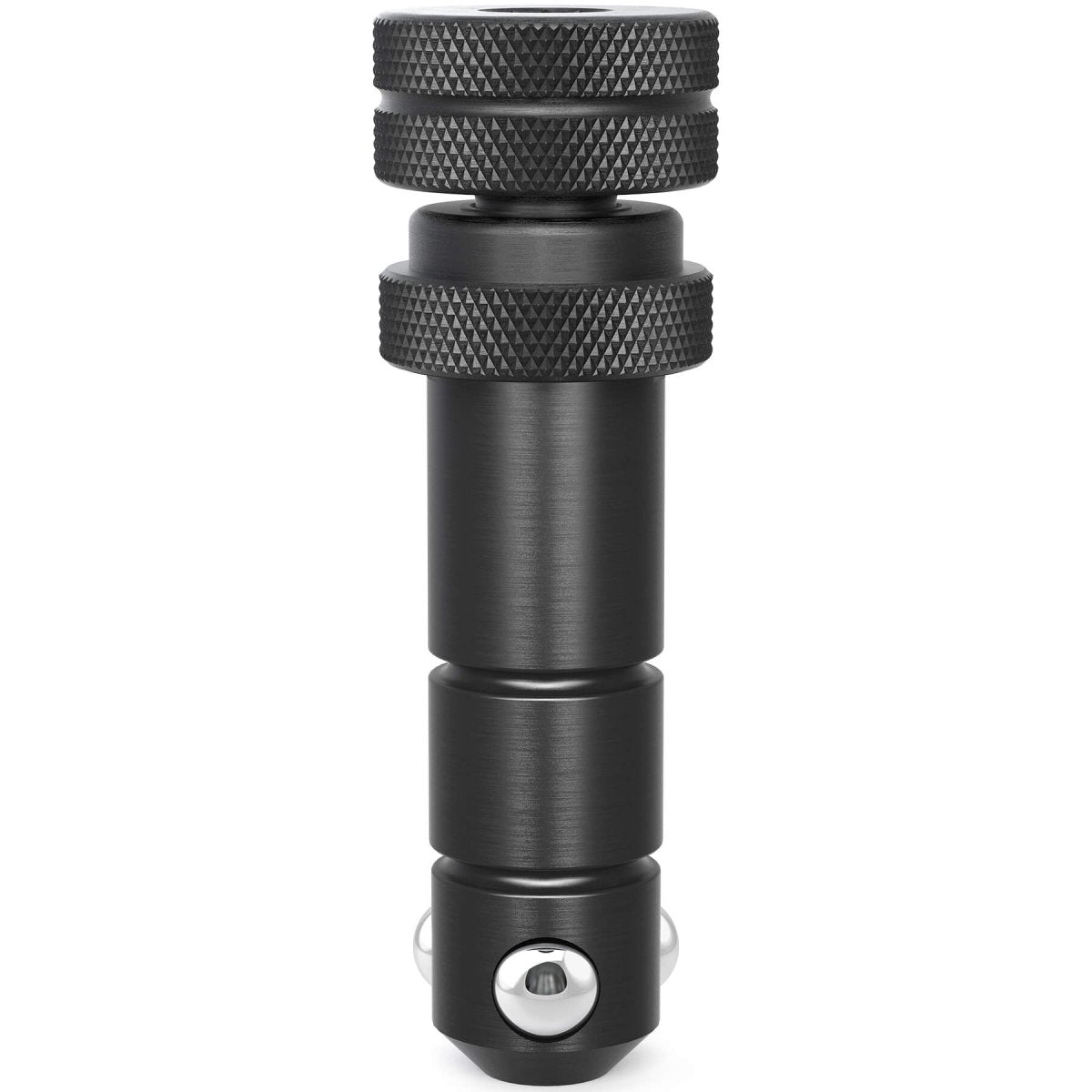

The Universal Bolt Comfort triple burnished provides a strong, precise connection for Siegmund System 28 setups. Designed to join components of varying thickness, its three-ball locking system ensures stable clamping while preventing material displacement under heavy loads.
- The 125mm (4.92" Inches) length supports clamping of up to three components.
- Triple burnished finish enhances durability and surface resistance.
- Three-ball locking system distributes pressure evenly for stability.
- Handles heavy shear and tensile forces with reliable performance.
- Clamped with an integrated handwheel or hex wrench (Size 14).
- Material-dependent torque settings ensure safe fastening for steel and aluminum.
Key Features:
- Triple burnished surface ensures long service life under high use.
- Handles 200 kN (44,961.0 lbf.) shear force.
- Delivers 25 kN (5,620.0 lbf.) tensile force in steel setups.
- Comfort version with integrated handwheel for simple operation.
- Optimized for Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280533
- System: Siegmund System 28 Metric Series
- Length: 125mm (4.92" Inches)
- Weight: 1.54 lbs. (0.70 kg.)
- Shearing Force: 200 kN (44,961.0 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Connection Type: Integrated Handwheel or Hex Wrench (Size 14)
Common Uses:
This bolt delivers secure fastening for up to three Siegmund System 28 components, even when material thicknesses vary. Its three-ball locking system prevents displacement from uneven pressure, while the triple burnished finish ensures longevity. Fabricators rely on it for precise, repeatable fastening in demanding welding and fixturing tasks.
