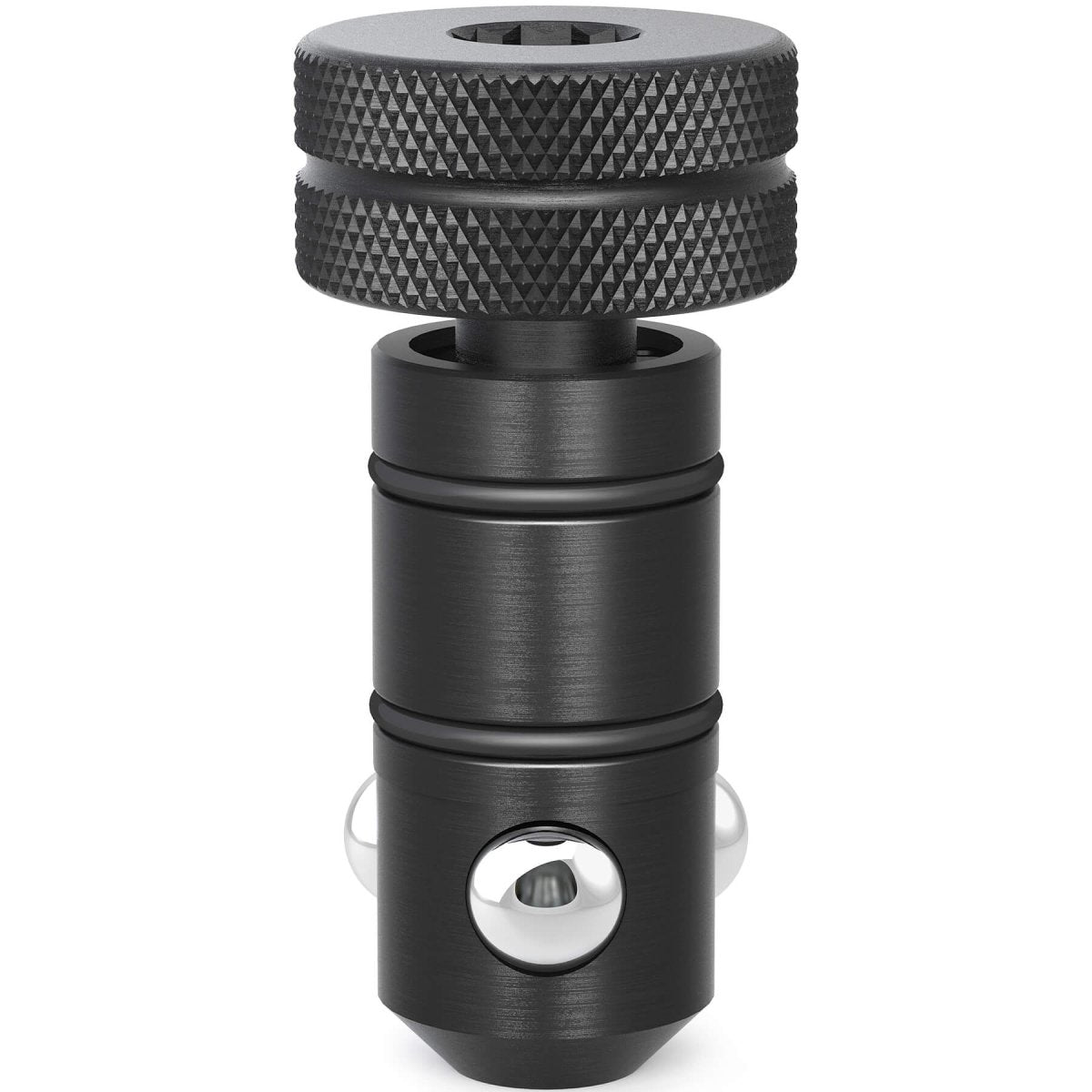

The Universal Bolt Basic double burnished provides a strong, cost-effective connection between Siegmund System 28 components. Designed for applications where elements of varying thickness must be joined, it delivers dependable clamping performance with straightforward operation.
- The 84mm (3.31" Inches) length supports clamping of two components.
- Clamping range from 42mm (1.65" Inches) to 57mm (2.24" Inches).
- Double burnished finish increases durability and wear resistance.
- Handles high shear and tensile forces with consistent performance.
- Hexagon socket (Size 14) allows secure tightening with common shop tools.
Key Features:
- Provides secure clamping between components of different thicknesses.
- Double burnished surface ensures extended durability.
- Handles 200 kN (44,961.0 lbf.) shear force for reliable stability.
- Delivers 25 kN (5,620.0 lbf.) tensile force for secure connections.
- Compatible with Siegmund System 28 Metric Series setups.
Specifications:
- Item No.: 2-280536
- System: Siegmund System 28 Metric Series
- Length: 84mm (3.31" Inches)
- Weight: 0.95 lbs. (0.43 kg.)
- Clamping Range: 42mm–57mm (1.65"–2.24" Inches)
- Shearing Force: 200 kN (44,961.0 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Tightening Torque Steel: 25 Nm (221.3 lbf·in.)
- Connection Type: Hexagon Socket (Size 14)
- Finish: Double Burnished

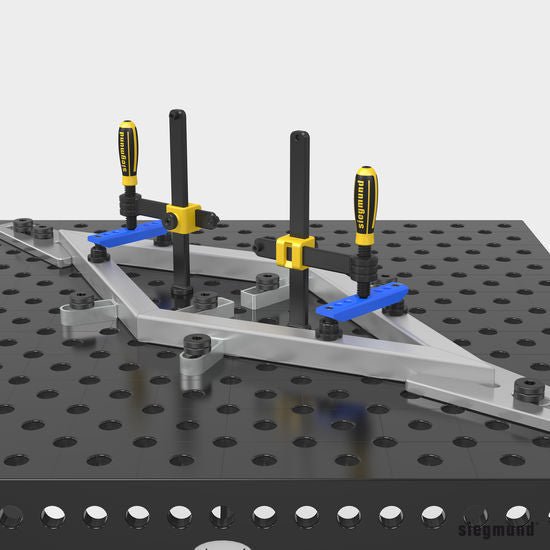

Common Uses:

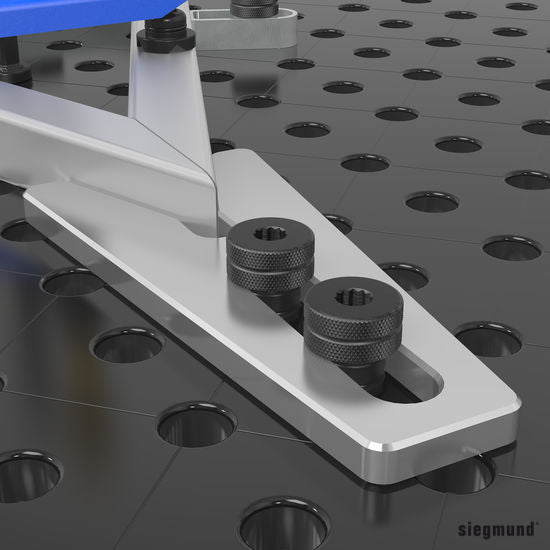

This bolt is used to clamp two Siegmund System 28 components where material thickness varies. Fabricators use it for reliable, durable fastening in heavy-duty setups, benefiting from its simple tightening system and wear-resistant double burnished finish.
